PB-210 - Echo Handheld Blower (SN: 03001001 - 03999999) Engine, Crankcase, Cylinder Cover Parts Diagram

Handheld blower - a 2-stroke, air-cooled single-cylinder gasoline engine (21.2 cc) delivering powerful airflow. Compact dimensions (~290 x 220 x 335 mm) and a dry weight of 4.4 kg make it lightweight and easy to maneuver.

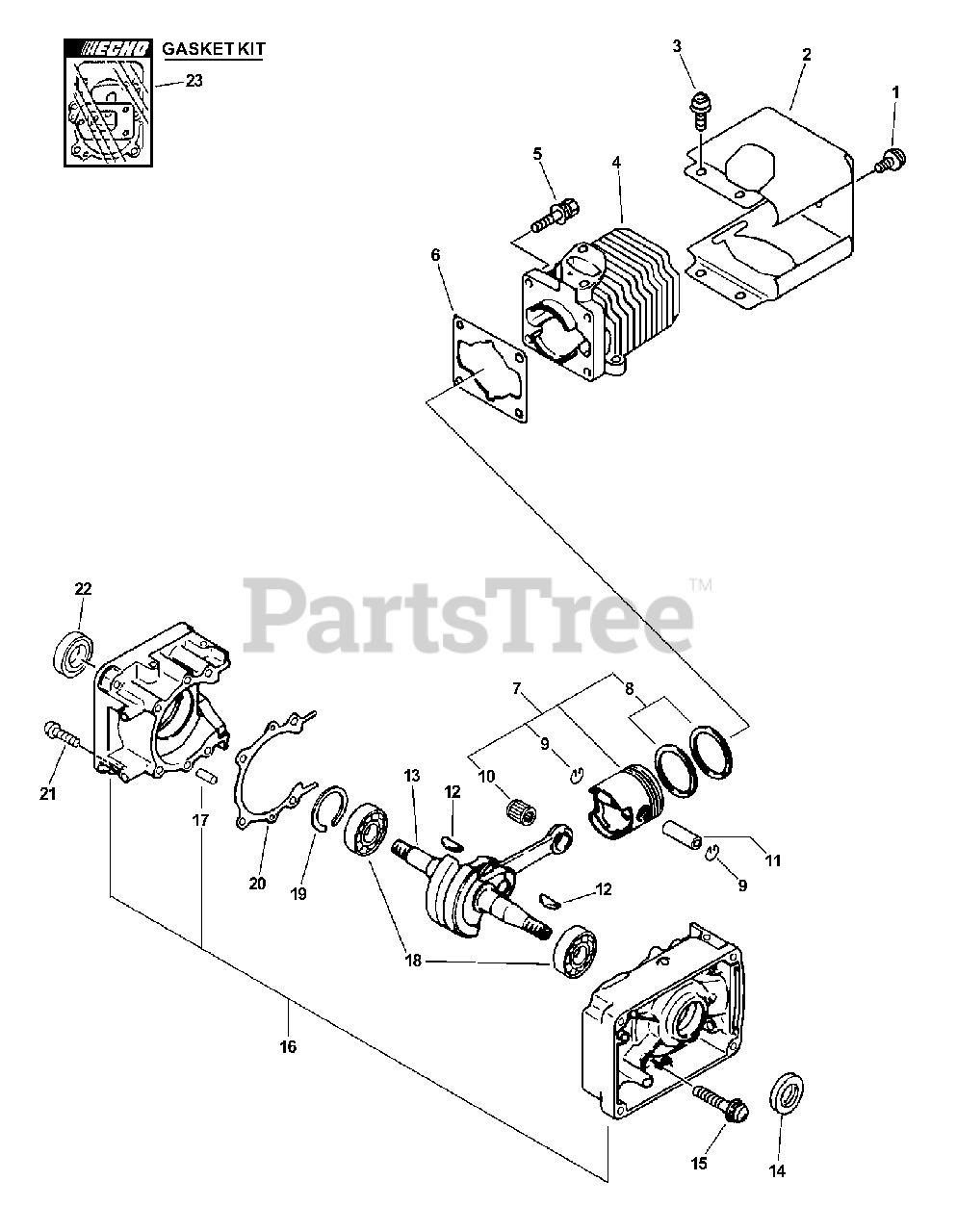

Engine, Crankcase, Cylinder Cover Parts Diagram

Title

Echo 900242-05010

SCREW 5×10

$0.99

In Stock, Qty 20+

Echo A160000230

COVER, CYLINDER

$8.49

Usually ships in 2-4 days

Echo 900242-04010

SCREW 4×10

$0.99

In Stock, Qty 20+

Echo A130000191

CYLINDER

$130.99

Usually ships in 2-4 days

Echo 90016205020

BOLT 5×20

$1.49

In Stock, Qty 20+

Echo 10101003361

GASKET, CYLINDER

Note: Included In GASKET KIT

Not available 

Echo 10000003361

PISTON KIT

Note: INCLUDES ITEMS 8-11

$60.99

Usually ships in 2-4 days

Echo 10001105530

RING, PISTON

$9.99

Usually ships in 2-4 days

Echo 100015-04630

RING, SNAP

(Superseded to 10001504630) 

$0.99

In Stock, Qty 20+

Echo 10001221230

BEARING, NEEDLE

$12.99

Usually ships in 2-4 days

Echo 10001303360

PIN, PISTON

$8.49

Usually ships in 2-4 days

Echo 90032303014

KEY, WOODRUFF 3×14

$1.99

In Stock, Qty 20+

Echo 10010003360

CRANKSHAFT

$270.99

Usually ships in 2-4 days

Echo 10021305530

SEAL, OIL 12

$7.99

In Stock, Qty 9

Echo 90024205030

SCREW 5×30

$0.99

In Stock, only 2 left!

Echo 10020003360

CRANKCASE KIT

Note: Includes ITEM 17

$149.99

Usually ships in 2-4 days

Echo V622000020

PIN, LOCATING 4

$0.99

In Stock, only 4 left!

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

In Stock, only 4 left!

Echo 90070200032

RING, SNAP Ø32

$2.49

In Stock, only 2 left!

Echo 10024203360

GASKET, CRANKCASE

Note: Included In GASKET KIT

$0.99

Usually ships in 2-4 days

Echo 900238-05020

SCREW 5×20

$0.99

In Stock, Qty 5

Echo 10021203930

SEAL, OIL 12

$6.49

In Stock, Qty 7

Echo P021002401

GASKET KIT

(Superseded to P021002402) 

Note: GASKET KIT

$23.99

Usually ships in 2-4 days
