PB-2100 - Echo Handheld Blower (Type 1E) Carburetor Parts Diagram

Handheld blower (Type 1E). 330 mm L x 215 mm W x 340 mm H, dry weight 4 kg. 21.2 cc air-cooled 2-stroke single-cylinder engine, carburetor C1U-K421, spark-plug ignition.

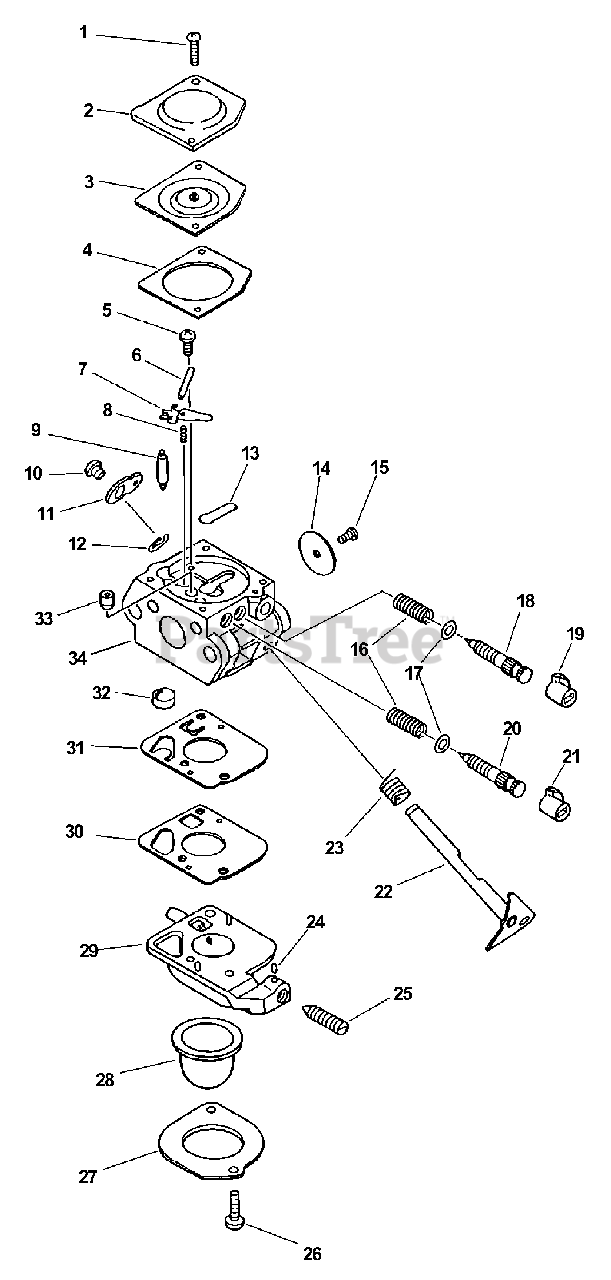

Carburetor Parts Diagram

  • Title

Echo 12520020560

CARBURETOR - C1U-K42
(Superseded to 12520020561)

Note: INCLUDES THE FOLLOWING:

$77.99

$

In Stock, only 2 left!

0

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534207360

COVER, DIAPHRAGM

$5.49

$

Usually ships in 2-4 days

0

3

DIAPHRAGM, METERING

Note: Included In REPAIR KIT & GASKET/DIAPHRAGM KIT

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Included In REPAIR KIT & GASKET/DIAPHRAGM KIT

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: Included In REPAIR KIT

$

$

Not available

7

LEVER, METERING

Note: Included In REPAIR KIT

$

$

Not available

8

SPRING, METERING LEVER

Note: Included In REPAIR KIT

$

$

Not available

9

VALVE, INLET NEEDLE

Note: Included In REPAIR KIT

$

$

Not available

10

Echo 125327-13930

CLIP

$0.99

$

In Stock, only 3 left!

0

11

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

12

Echo 12535020560

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

13

PLUG, WELCH

Note: Included In REPAIR KIT

$

$

Not available

14

Echo 12531620560

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 12531451230

SCREW 3×4.5

$1.49

$

Usually ships in 2-4 days

0

16

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

18

Echo 12531820560

NEEDLE, LOW SPEED
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 11

0

20

Echo 12532020560

NEEDLE, HIGH SPEED

$5.99

$

Usually ships in 2-4 days

0

21

Echo 12532908560

CAP, LIMITER

$2.49

$

In Stock, only 3 left!

0

22

Echo 12531706860

SHAFT, THROTTLE

$7.49

$

In Stock, only 1 left!

0

23

Echo 12531308560

SPRING, THROTTLE RETURN

$1.99

$

In Stock, Qty 8

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533406860

SCREW

$4.99

$

Usually ships in 2-4 days

0

26

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

29

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

30

GASKET, PUMP

Note: Included In REPAIR KIT & GASKET/DIAPHRAGM KIT

$

$

Not available

31

DIAPHRAGM, PUMP

Note: Included In REPAIR KIT & GASKET/DIAPHRAGM KIT

$

$

Not available

32

STRAINER

Note: Included In REPAIR KIT

$

$

Not available

33

Echo 12537607360

NOZZLE, CHECK VALVE

$5.49

$

Usually ships in 2-4 days

0

34

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12530020560

REBUILD KIT

$18.99

$

In Stock, only 2 left!

0

Echo 12530320560

GASKET / DIAPHRAGM KIT

$10.99

$

In Stock, only 2 left!

0
