PB-2100 - Echo Handheld Blower (Type 1E) Engine, Short Block -- SB1026 Parts Diagram

Handheld blower (Type 1E). 330 mm L x 215 mm W x 340 mm H, dry weight 4 kg. 21.2 cc air-cooled 2-stroke single-cylinder engine, carburetor C1U-K421, spark-plug ignition.

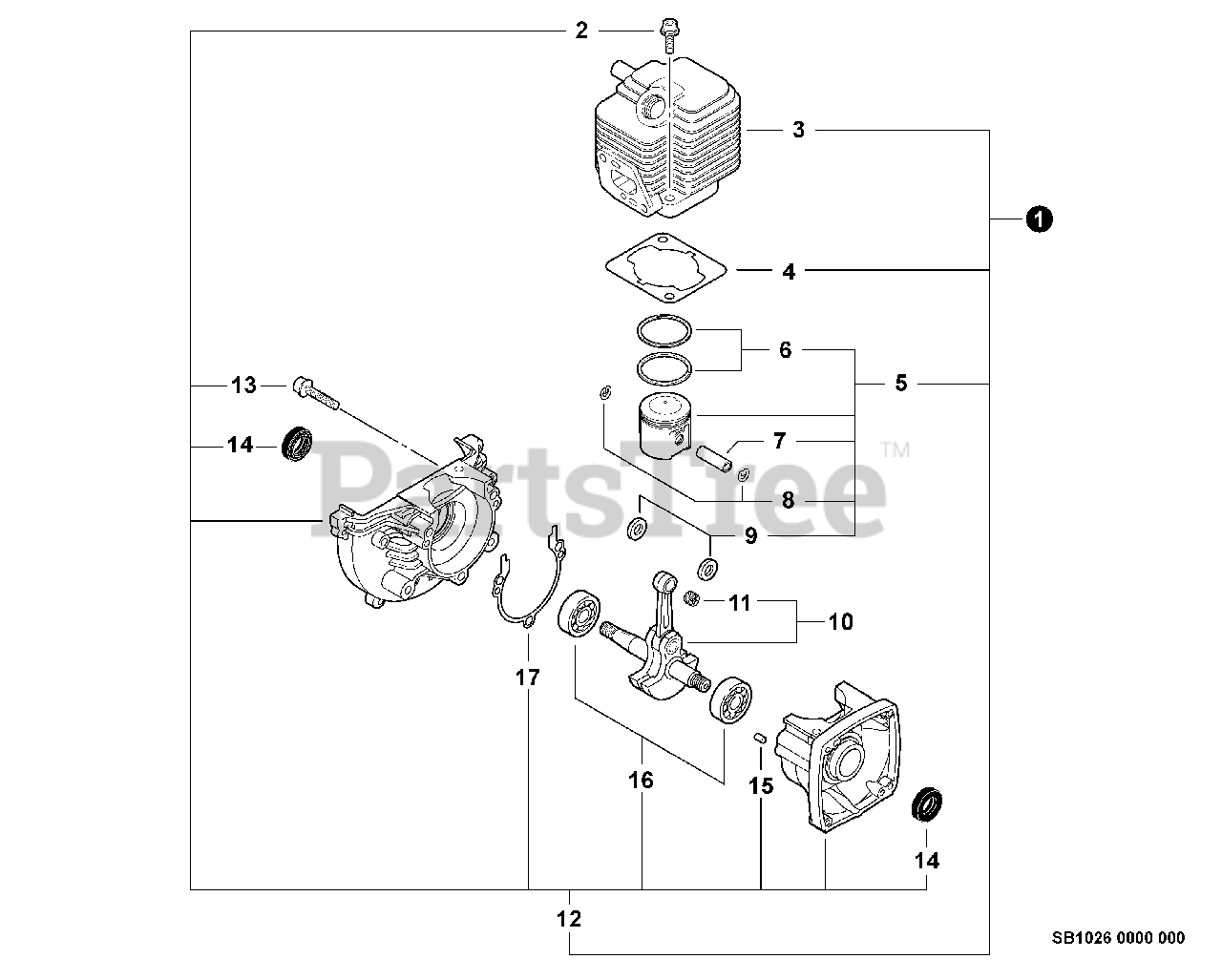

Engine, Short Block -- SB1026 Parts Diagram

  • Title

1

Echo SB1026

SHORT BLOCK ES-2100;PB-2100
(Superseded to Discontinued)

Note: Includes ITEMS 2-17

$

$

Not available

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo A130000021

CYLINDER
(Superseded to A130002300)

$133.99

$

Usually ships in 2-4 days

0

4

Echo 101010-44332

GASKET, CYLINDER

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 5

0

5

Echo 10000048732

PISTON KIT

Note: Includes ITEMS 6-9

$77.99

$

In Stock, only 2 left!

0

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

7

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

8

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes ITEM 11

$180.99

$

Usually ships in 2-4 days

0

11

Echo V553000060

BEARING, NEEDLE 8

$12.99

$

In Stock, only 2 left!

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$

$

Not available

13

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

14

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 1 left!

0

17

Echo 100242-42030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 17

0
