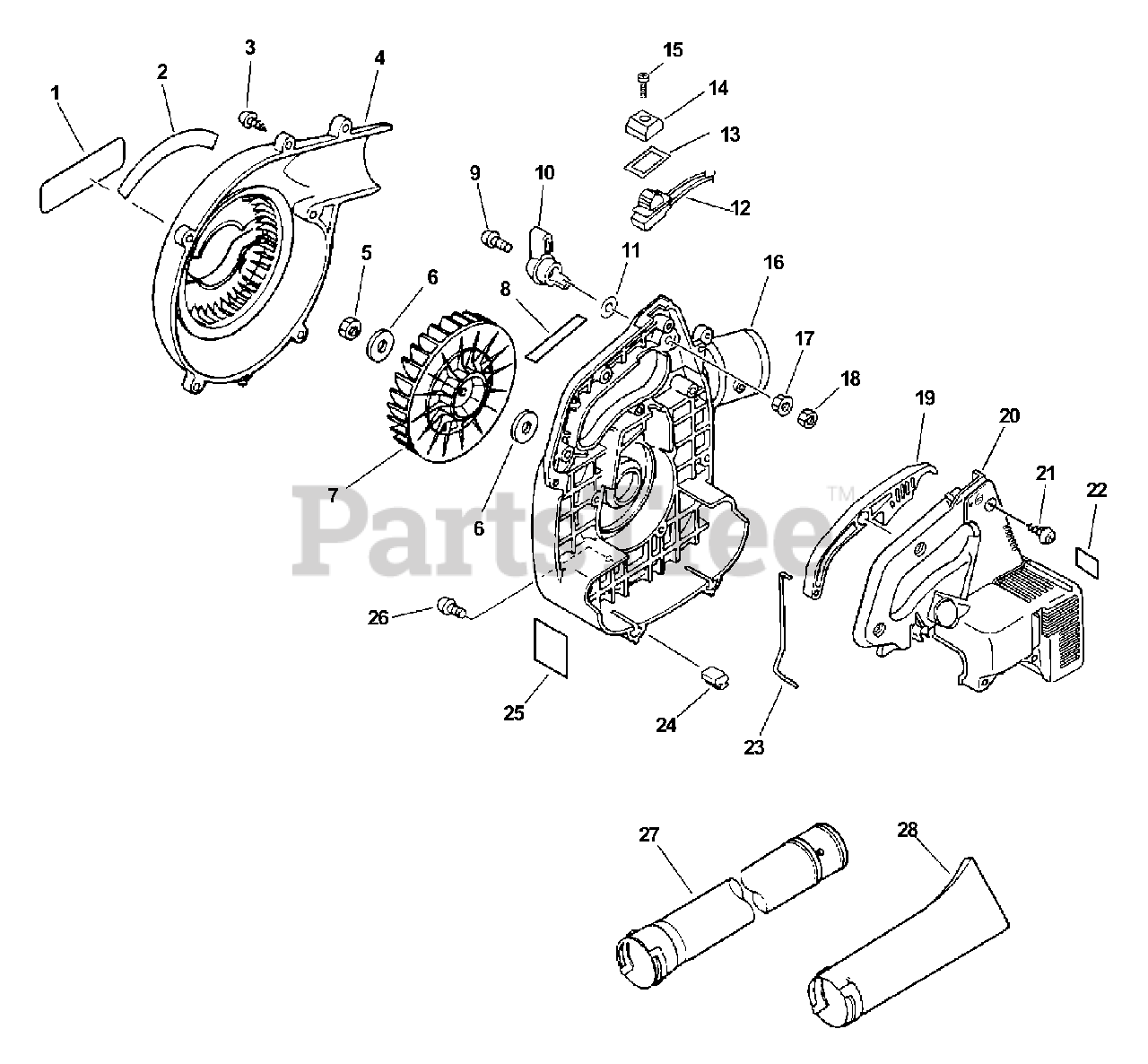

PB-2100 - Echo Handheld Blower (Type 1E) Fan Case, Blower Pipe Parts Diagram

Handheld Blower (Type 1E)

Fan Case, Blower Pipe Parts Diagram

  • Title

1

Echo 89011820560

LABEL - ECHO
(Superseded to X502000300)

$4.99

$

In Stock, Qty 9

0

2

Echo 89011520560

LABEL - MODEL

$4.49

$

In Stock, only 1 left!

0

3

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

4

Echo 20011120561

COVER, FAN - LEFT
(Superseded to 20011120562)

$23.99

$

In Stock, only 1 left!

0

5

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

6

Echo 10013205660

WASHER - 8

$1.99

$

In Stock, only 1 left!

0

7

Echo 20001020560

FAN

$17.99

$

In Stock, only 1 left!

0

8

Echo 89017620561

LABEL - NOISE 65dB(A) CAT I
(Superseded to X508000120)

$0.99

$

In Stock, Qty 6

0

9

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

10

Echo 17805420560

LEVER, THROTTLE - ORANGE

$10.99

$

Usually ships in 2-4 days

0

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 16340120560

IGNITION SWITCH ASSY
(Superseded to 16340120561)

Note: Includes ITEMS 13-15

$10.99

$

In Stock, only 1 left!

0

13

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 20+

0

14

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

15

Echo 90022003010

SCREW - 3X10

$0.99

$

In Stock, Qty 14

0

16

Echo 20010520562

COVER, FAN - RIGHT
(Superseded to P021003720)

$23.99

$

Usually ships in 2-4 days

0

17

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

18

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 14

0

19

Echo 17801020560

TRIGGER, THROTTLE - ORANGE

$7.49

$

In Stock, Qty 6

0

20

Echo 10401220560

COVER, ENGINE
(Superseded to 10401220561)

$25.99

$

Usually ships in 2-4 days

0

21

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

22

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

23

Echo 17801120561

ROD, THROTTLE

$6.49

$

In Stock, Qty 20+

0

24

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

25

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

26

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

27

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$12.99

$

In Stock, Qty 12

0

28

Echo 21001420560

TUBE, BLOWER - NOZZLE
(Superseded to 21001420561)

$9.99

$

In Stock, Qty 20+

0
