PB-2100 - Echo Handheld Blower (Type 1E) Fan Case, Blower Pipe Parts Diagram

Handheld blower (Type 1E). 330 mm L x 215 mm W x 340 mm H, dry weight 4 kg. 21.2 cc air-cooled 2-stroke single-cylinder engine, carburetor C1U-K421, spark-plug ignition.

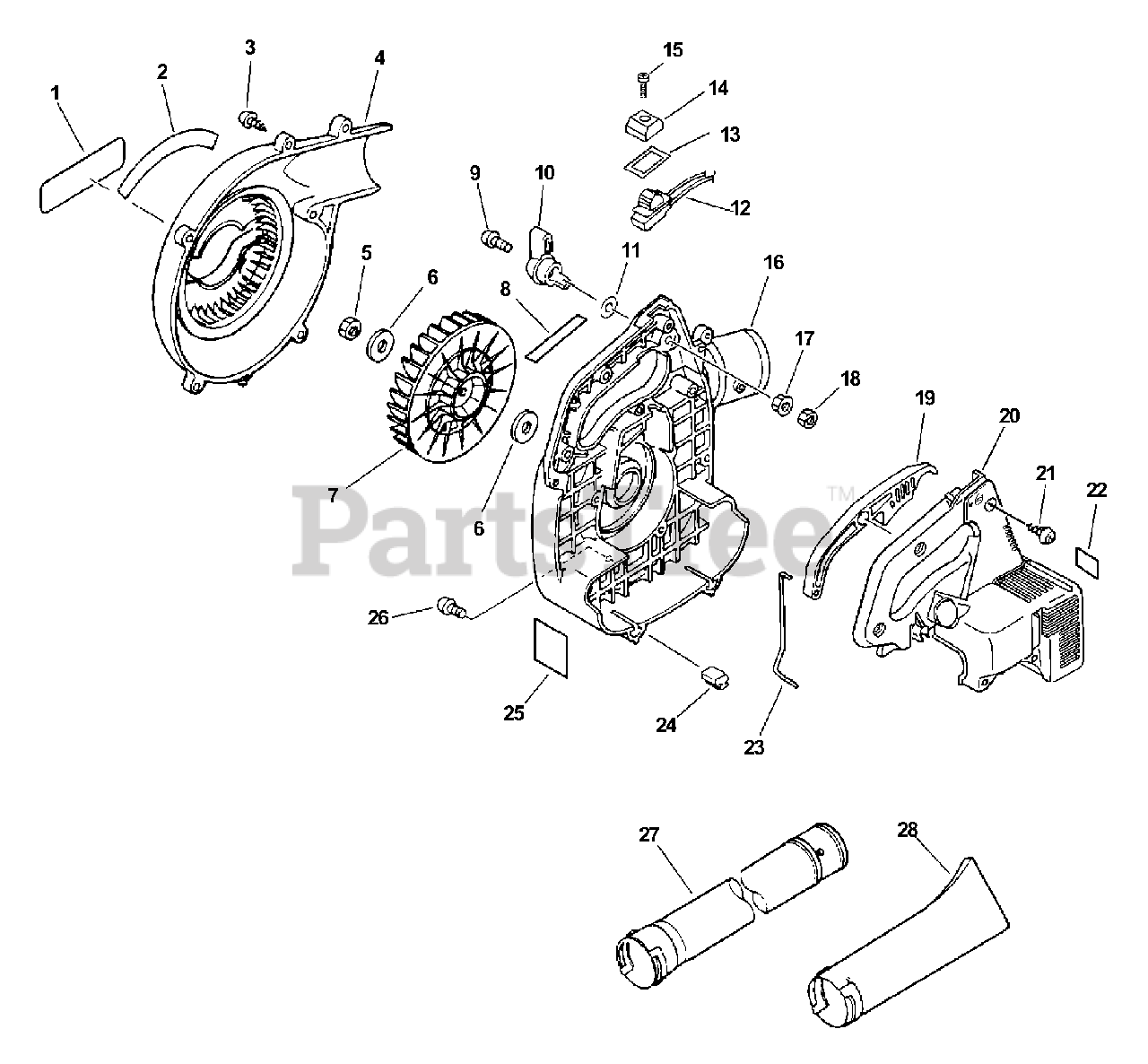

Fan Case, Blower Pipe Parts Diagram

  • Title

1

Echo 89011820560

LABEL - ECHO
(Superseded to X502000300)

$5.99

$

In Stock, Qty 6

0

2

Echo 89011520560

LABEL, MODEL

$4.49

$

Usually ships in 2-4 days

0

3

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

4

Echo 20011120561

COVER, FAN
(Superseded to 20011120562)

$28.99

$

Usually ships in 2-4 days

0

5

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

6

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

7

Echo 20001020560

FAN

$21.99

$

Usually ships in 2-4 days

0

8

Echo 89017620561

LABEL - NOISE
(Superseded to X508000120)

$0.99

$

In Stock, only 3 left!

0

9

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

10

Echo 17805420560

CONTROL, THROTTLE

$12.99

$

Usually ships in 2-4 days

0

11

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 16340120560

IGNITION SWITCH ASSY
(Superseded to 16340120561)

Note: Includes ITEMS 13-15

$12.99

$

In Stock, only 2 left!

0

13

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 2 left!

0

14

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

15

Echo 90022003010

SCREW 3×10

$0.99

$

In Stock, Qty 11

0

16

Echo 20010520562

COVER, FAN - RIGHT
(Superseded to P021003720)

$27.99

$

Usually ships in 2-4 days

0

17

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

18

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

19

Echo 17801020560

CONTROL, THROTTLE

$8.99

$

In Stock, Qty 5

0

20

Echo 10401220560

COVER, ENGINE
(Superseded to 10401220561)

$30.99

$

Usually ships in 2-4 days

0

21

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

22

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, Qty 7

0

23

Echo 17801120561

ROD, THROTTLE

$7.99

$

In Stock, Qty 14

0

24

Echo 35133520560

CUSHION

$7.49

$

Usually ships in 2-4 days

0

25

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

26

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

27

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$15.99

$

In Stock, only 1 left!

0

28

Echo 21001420560

TUBE, BLOWER - NOZZLE
(Superseded to 21001420561)

$11.99

$

In Stock, Qty 14

0
