PB-2100 - Echo Handheld Blower (Type 1E) Intake, Exhaust Parts Diagram

Handheld blower (Type 1E). 330 mm L x 215 mm W x 340 mm H, dry weight 4 kg. 21.2 cc air-cooled 2-stroke single-cylinder engine, carburetor C1U-K421, spark-plug ignition.

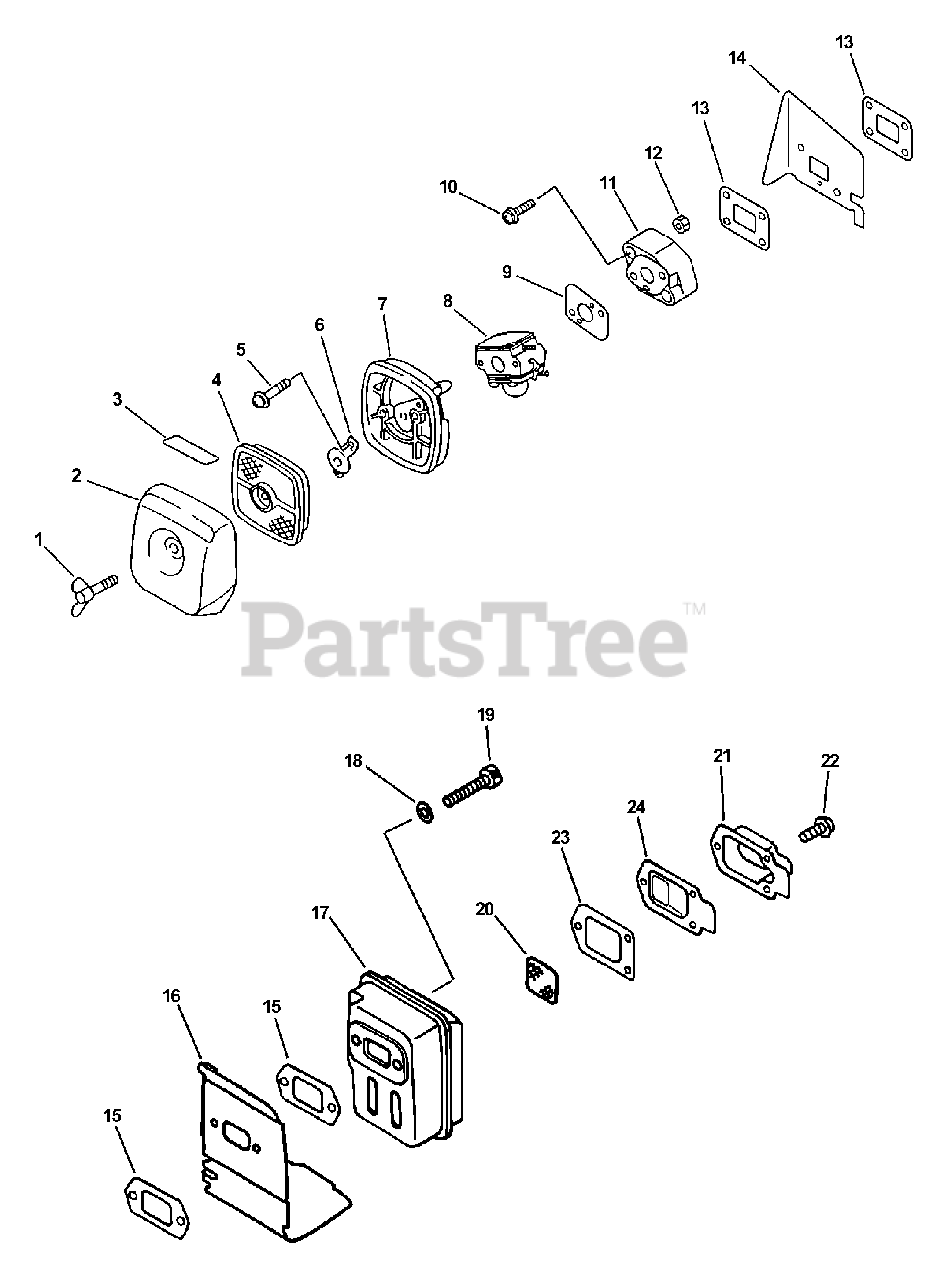

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, Qty 13

0

3

Echo 89012105360

LABEL, CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, Qty 13

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 20+

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 14

0

8

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

9

Echo 13001020560

GASKET, INTAKE

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 17

0

10

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

11

Echo 13001705062

INSULATOR, INTAKE

$7.49

$

In Stock, only 2 left!

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001009561

GASKET, INTAKE

Note: Included In GASKET KIT

$3.49

$

In Stock, Qty 11

0

14

Echo 10151420560

HEAT SHIELD, INTAKE

$3.49

$

In Stock, only 2 left!

0

15

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

16

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0

17

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, Qty 7

0

18

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

21

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

22

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

23

Echo 145866-42031

GASKET, EXHAUST

Note: S/N: 001001-626617 Included In GASKET KIT

$2.99

$

In Stock, Qty 20+

0

24

Echo 14587420560

GUIDE, EXHAUST

Note: S/N: 001001-626617

$8.99

$

Usually ships in 2-4 days

0

23

Echo V104000003

GASKET, EXHAUST

Note: S/N: 626618 & UP Included In GASKET KIT

$3.49

$

In Stock, Qty 10

0

24

Echo A313000020

GUIDE, EXHAUST - INNER
(Superseded to A313000120)

Note: S/N: 626618 & UP

$3.99

$

Usually ships in 2-4 days

0
