PB-2100 - Echo Handheld Blower (Type 1E) Intake, Exhaust Parts Diagram

Handheld Blower (Type 1E)

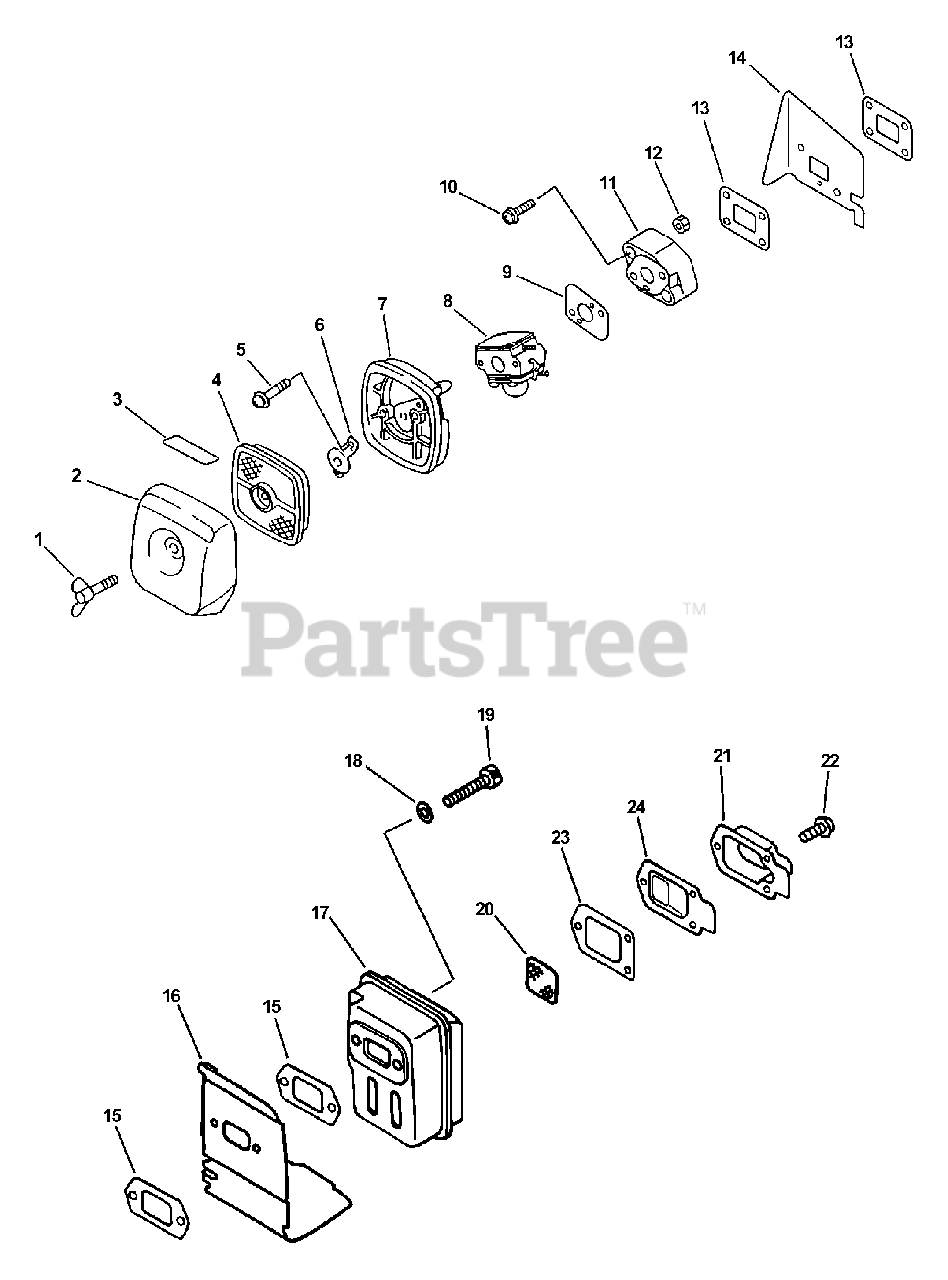

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 20+

0

3

Echo 89012105360

LABEL - CHOKE

Note: CANADA MODELS

$1.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 15

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 19

0

8

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

9

Echo 13001020560

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

10

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

11

Echo 13001705062

INSULATOR, INTAKE

$6.49

$

In Stock, only 2 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13001009561

GASKET, INTAKE

$2.99

$

In Stock, Qty 6

0

14

Echo 10151420560

SHIELD, INTAKE

$2.99

$

Usually ships in 2-4 days

0

15

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

16

Echo 14587105760

SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0

17

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 3 left!

0

18

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

20

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

21

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

22

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

23

Echo 14586642031

GASKET, EXHAUST

Note: S/N: 001001-626617

$2.49

$

In Stock, Qty 20+

0

24

Echo 14587420560

GUIDE, EXHAUST

Note: S/N: 001001-626617

$7.49

$

Usually ships in 2-4 days

0

23

Echo V104000003

GASKET, EXHAUST

Note: S/N: 626618 & UP

$2.99

$

In Stock, Qty 15

0

24

Echo A313000020

GUIDE, EXHAUST - OUTER
(Superseded to A313000120)

Note: S/N: 626618 & UP

$3.99

$

Usually ships in 2-4 days

0
