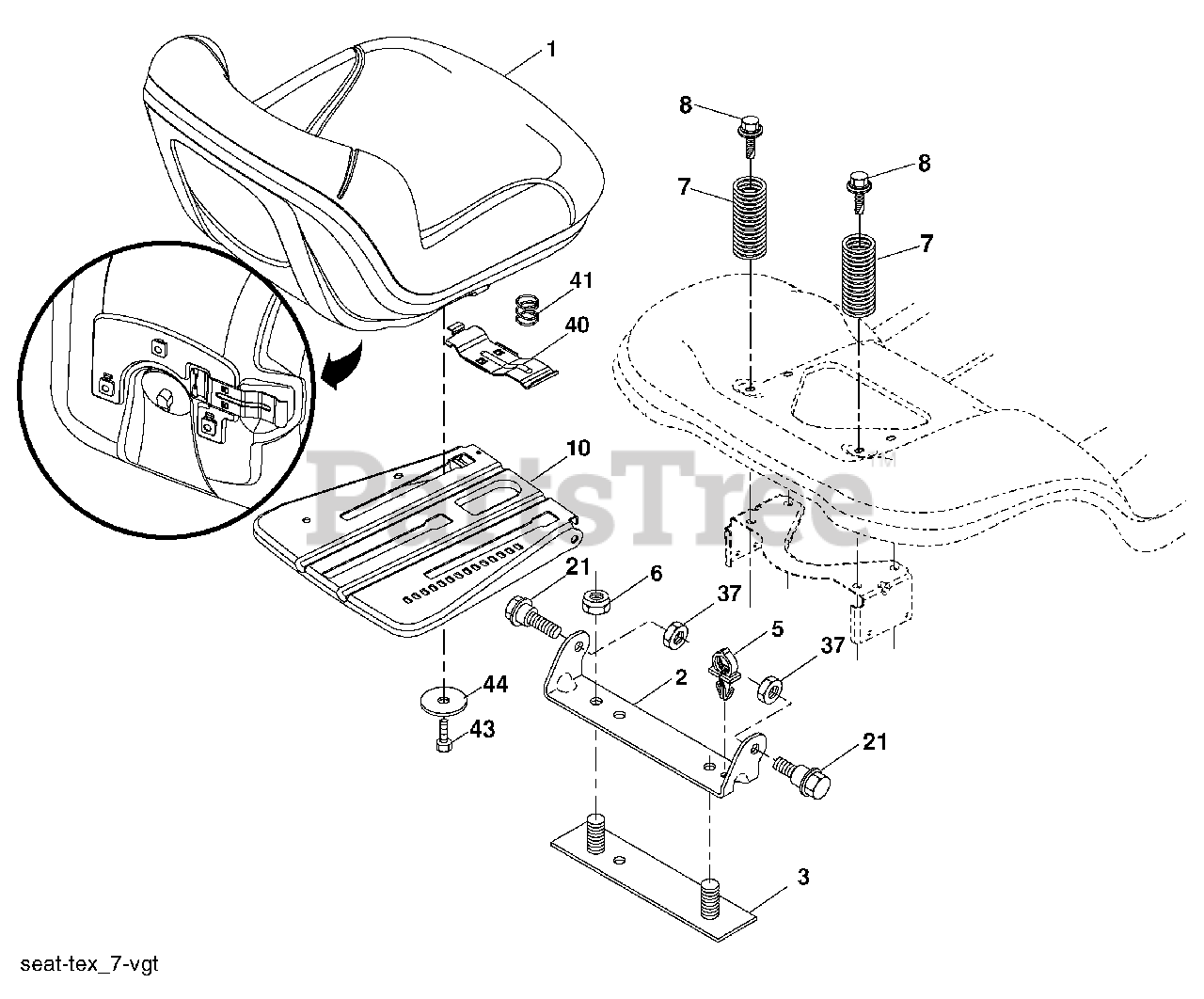

PB 22H46 YT (960420038-00) - Poulan Pro Lawn Tractor (2007-10) Seat Assembly Parts Diagram

Lawn Tractor

Seat Assembly Parts Diagram

  • Title

1

Electrolux/AYP 406623

Seat
(Superseded to 592797301)

$182.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 180166

Bracket Pivot Fender
(Superseded to 532180166)

$10.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 140675

Strap, Asm Fender
(Superseded to 532140675)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

Clip, Push In, Hinged
(Superseded to 532145006)

$6.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 73800600

Nut, Lock W/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

Spring, Seat Cprsn
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

8

Electrolux/AYP 171877

Bolt 5/16-18 uncx 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 196977

Pan, Seat
(Superseded to 596768801)

$26.99

$

In Stock, only 1 left!

0
