PB 22H54 BFX (960420070-00) - Poulan Pro Lawn Tractor (2007-12) Mower Lift Parts Diagram

Lawn Tractor

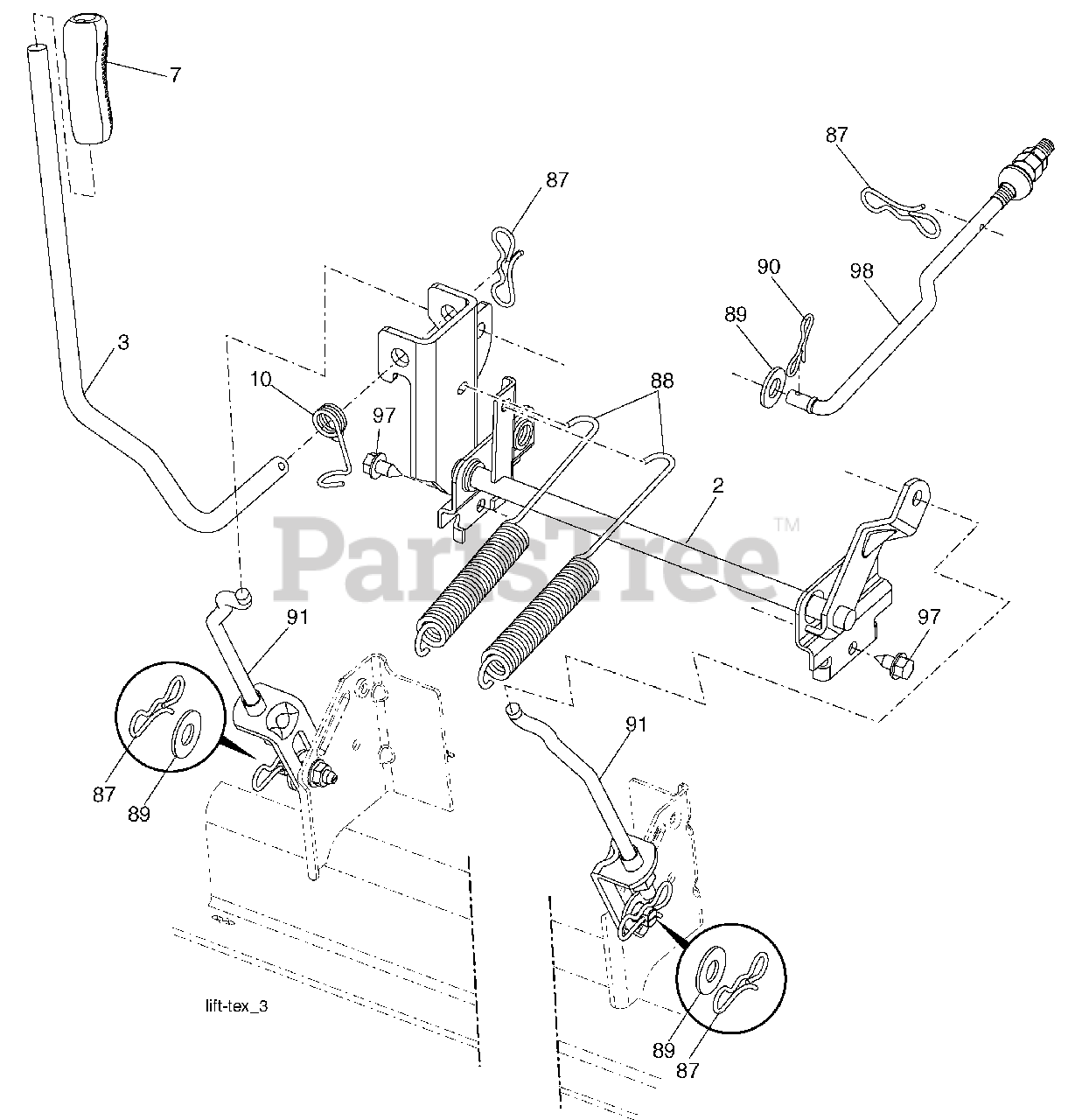

Mower Lift Parts Diagram

  • Title
2

Electrolux/AYP 195223

Shaft Asm., Lift
(Superseded to 532422027)

$80.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 195230

Lever Asm., Lift RH
(Superseded to 532195230)

$54.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 196492X421

Grip, Lever
(Superseded to 532411555)

$6.49

$

In Stock, Qty 7

0

10

Electrolux/AYP 196314

Spring Torsion
(Superseded to 532196314)

$6.49

$

In Stock, Qty 5

0

87

Electrolux/AYP 194209

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 532194209)

$3.99

$

In Stock, Qty 20+

0

88

Electrolux/AYP 195303

Spring Lift Assist
(Superseded to 532410710)

$8.99

$

In Stock, Qty 20+

0

89

Electrolux/AYP 19191912

Washer Clear Zinc
(Superseded to 819191912)

$6.49

$

In Stock, Qty 20+

0

90

Electrolux/AYP 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 532194208)

$3.99

$

In Stock, Qty 20+

0

91

Electrolux/AYP 403407

Link Lift Susp. Mower Rear
(Superseded to 589464805)

$17.99

$

In Stock, Qty 20+

0

97

Electrolux/AYP 17000612

Screw 3/8-16 x .75 Smgml. Tap/R.Z
(Superseded to 817000612)

$4.99

$

In Stock, Qty 10

0

98

Electrolux/AYP 195264

Link Lift Susp. Front Mower
(Superseded to 581506902)

$9.99

$

In Stock, Qty 20+

0
