PB-230 LN - Echo Handheld Blower (SN: 04001001 - 04999999) Intake, Exhaust Parts Diagram

Handheld Blower

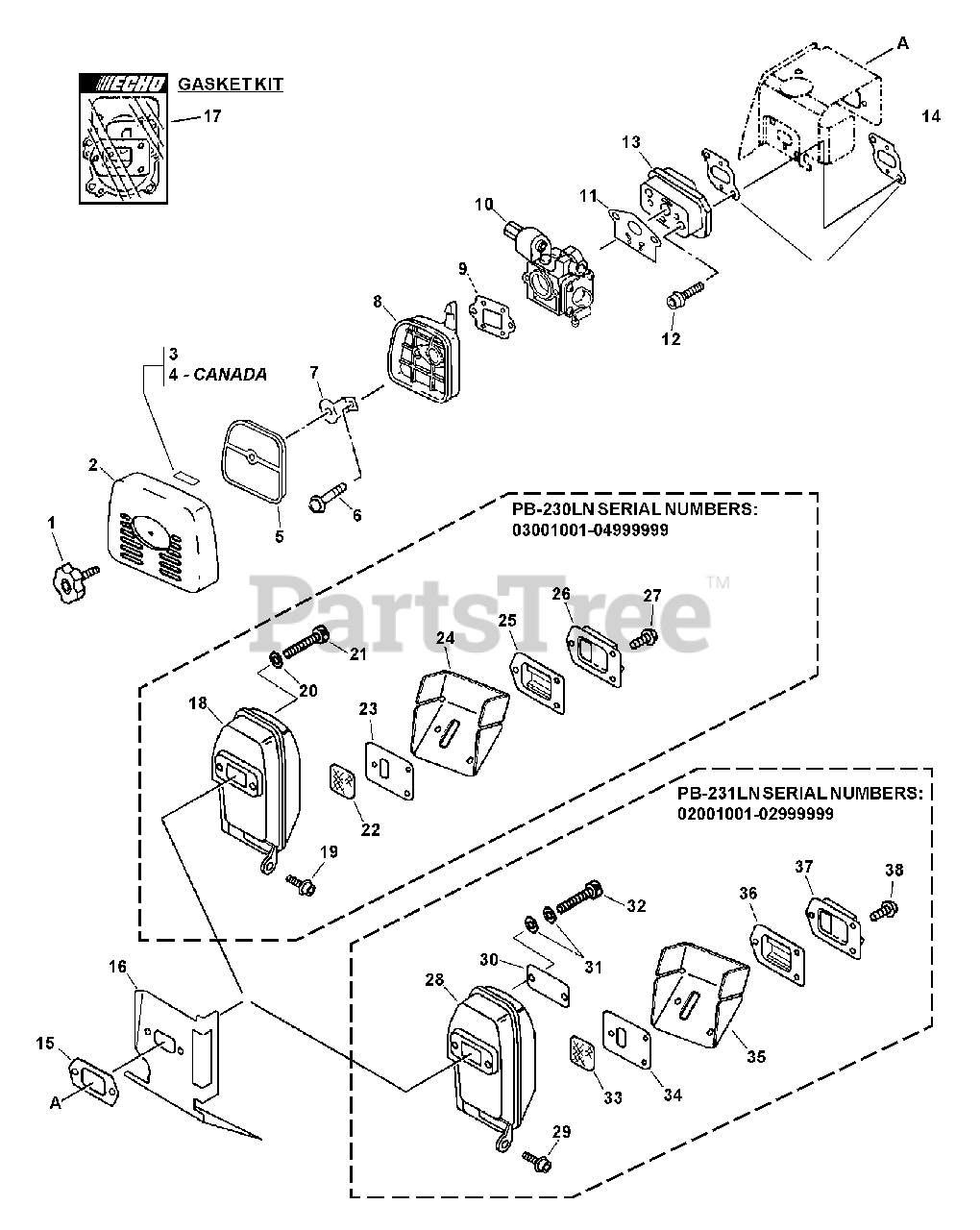

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$6.49

$

In Stock, Qty 20+

0

2

Echo A232000040

COVER, AIR FILTER
(Superseded to A232000041)

$11.99

$

In Stock, Qty 7

0

3

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 17

0

4

Echo 89033252730

LABEL, CHOKE

Note: CANADA MODELS: 07001001-07999999

$1.49

$

In Stock, Qty 20+

0

5

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

Usually ships in 2-4 days

0

6

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

7

Echo 12901157731

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

8

Echo 13030757730

CASE, AIR FILTER

$15.99

$

In Stock, Qty 5

0

9

Echo 10158609660

SPACER

Note: Included In GASKET KIT

$4.99

$

In Stock, only 1 left!

0

10

Echo A021000131

CARBURETOR - RB-K60A
(Superseded to A021000132)

$110.99

$

Usually ships in 2-4 days

0

11

Echo 13001013410

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 20+

0

12

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

13

Echo A200000021

INSULATOR, INTAKE

$18.99

$

Usually ships in 2-4 days

0

14

Echo 13001055930

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

15

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

16

Echo V104000041

SHIELD, EXHAUST

Note: Included In GASKET KIT

$10.99

$

Usually ships in 2-4 days

0

17

Echo P021001362

GASKET KIT
(Superseded to P021001363)

$45.99

$

Usually ships in 2-4 days

0

18

Echo A300000090

MUFFLER
(Superseded to Discontinued)

Note: PB-230LN S/N: 03001001-04999999

$

$

Not available

19

Echo 90016205016

BOLT 5×16

Note: PB-230LN S/N: 03001001-04999999

$1.49

$

In Stock, Qty 20+

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: PB-230LN S/N: 03001001-04999999

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505060

BOLT 5×60

Note: PB-230LN S/N: 03001001-04999999

$2.49

$

In Stock, only 3 left!

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: PB-230LN S/N: 03001001-04999999

$2.49

$

In Stock, Qty 20+

0

23

Echo V104000032

GASKET, EXHAUST
(Superseded to V104000033)

Note: PB-230LN S/N: 03001001-04999999; Also Included In GASKET KIT

$1.99

$

Usually ships in 2-4 days

0

24

Echo V104000051

GASKET, EXHAUST

Note: PB-230LN S/N: 03001001-04999999

$4.99

$

Usually ships in 2-4 days

0

25

Echo A313000110

GUIDE, EXHAUST

Note: PB-230LN S/N: 03001001-04999999

$

$

Not available

26

Echo A313000080

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: PB-230LN S/N: 03001001-04999999

$

$

Not available

27

Echo 9136704012

SCREW 4×12

Note: PB-230LN S/N: 03001001-04999999

$0.99

$

In Stock, Qty 20+

0

28

Echo A300000110

MUFFLER

Note: PB-230LN S/N: 03001001-04999999

$107.99

$

Usually ships in 2-4 days

0

29

Echo 90016205016

BOLT 5×16

Note: PB-230LN S/N: 03001001-04999999

$1.49

$

In Stock, Qty 20+

0

30

Echo V150000371

PLATE, EYE

Note: PB-230LN S/N: 03001001-04999999

$1.49

$

In Stock, Qty 8

0

31

Echo V347000000

CONICAL WASHER

Note: PB-230LN S/N: 03001001-04999999

$0.99

$

In Stock, Qty 8

0

32

Echo 9110005065

BOLT M5×65

Note: PB-230LN S/N: 03001001-04999999

$0.99

$

In Stock, Qty 16

0

33

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: PB-231LN S/N: 02001001-02999999

$2.49

$

In Stock, Qty 20+

0

34

Echo V104000032

GASKET, EXHAUST
(Superseded to V104000033)

Note: PB-231LN S/N: 02001001-02999999

$1.99

$

Usually ships in 2-4 days

0

35

Echo V104000051

GASKET, EXHAUST

Note: PB-231LN S/N: 02001001-02999999; Also Included In GASKET KIT

$4.99

$

Usually ships in 2-4 days

0

36

Echo A313000110

GUIDE, EXHAUST

Note: PB-231LN S/N: 02001001-02999999

$

$

Not available

37

Echo A313000070

GUIDE, EXHAUST

Note: PB-231LN S/N: 02001001-02999999

$14.99

$

Usually ships in 2-4 days

0

38

Echo 9136704012

SCREW 4×12

Note: PB-231LN S/N: 02001001-02999999

$0.99

$

In Stock, Qty 20+

0
