PB-230 LN - Echo Handheld Blower (SN: P05813001001 - P05813999999) Fuel System Parts Diagram

Handheld blower with a 22.8 cc 2-stroke engine (EPA Phase II, 300-hour emissions durability). Runs on a 1:50 oil-mix, manufactured in 2006 by Echo, Inc., and is compatible with Tune-Up Kit 90153Y (fuel filter, air filter, optional pre-filter, spark plug).

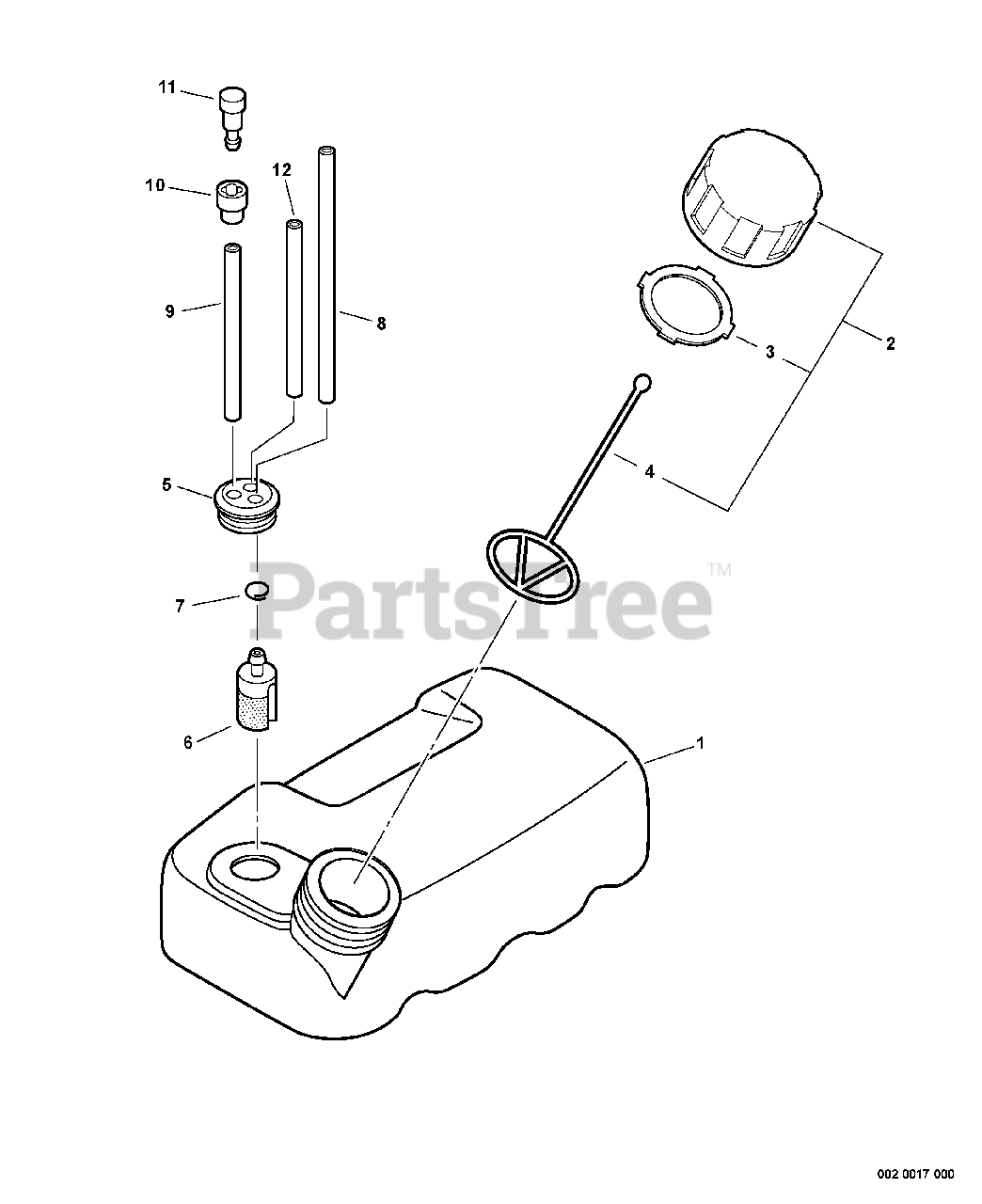

Fuel System Parts Diagram

  • Title

1

Echo A350000023

TANK, FUEL
(Superseded to A350000650)

$25.99

$

Usually ships in 2-4 days

0

2

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: INCLUDES ITEMS 3-4

$7.49

$

In Stock, Qty 20+

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 10

0

5

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 43721015130

PIPE, FUEL 3×6×200

Note: RePower BULK OPTION: 90015

$

$

Not available

9

Echo 43721720760

PIPE, FUEL 3×6×100
(Superseded to 43721720761)

Note: RePower BULK OPTION: 90015

$6.49

$

In Stock, Qty 6

0

10

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

12

Echo 13201014010

PIPE, FUEL 3×6×100

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 15

0

13

Echo 90075

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 6

$20.99

$

In Stock, Qty 18

0

14

Echo 90075C

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 6 CANADA MODELS

$20.99

$

In Stock, Qty 18

0
