PB-230 LN - Echo Handheld Blower (SN: P05813001001 - P05813999999) Intake, Cylinder Cover Parts Diagram

Handheld blower with a 22.8 cc 2-stroke engine (EPA Phase II, 300-hour emissions durability). Runs on a 1:50 oil-mix, manufactured in 2006 by Echo, Inc., and is compatible with Tune-Up Kit 90153Y (fuel filter, air filter, optional pre-filter, spark plug).

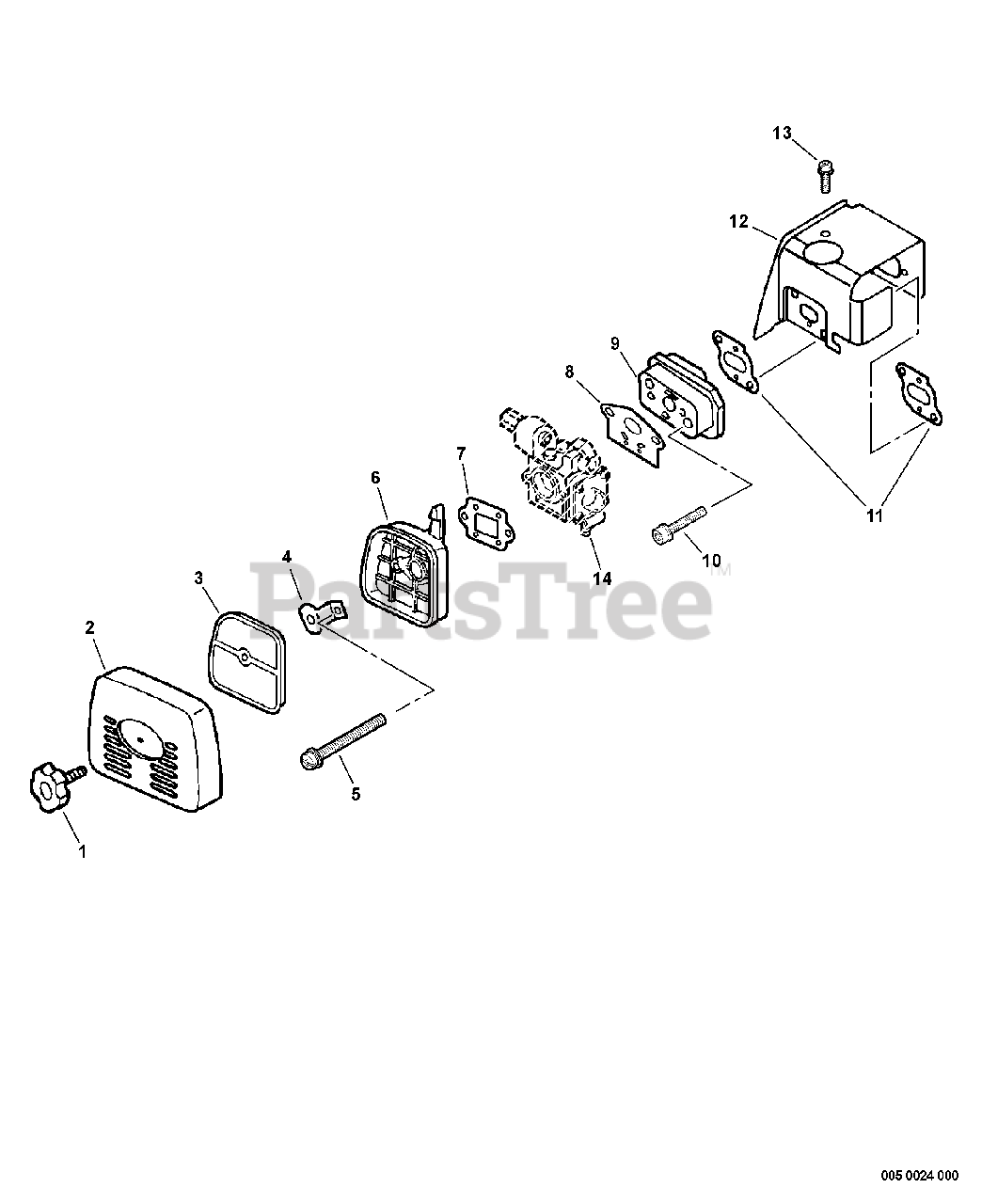

Intake, Cylinder Cover Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$6.49

$

In Stock, Qty 20+

0

2

Echo A232000120

COVER, AIR FILTER

$11.99

$

In Stock, only 4 left!

0

3

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

In Stock, Qty 20+

0

4

Echo 12901157731

PLATE, PREVENT

$6.49

$

In Stock, Qty 10

0

5

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

6

Echo P021001430

CASE, AIR FILTER

$9.99

$

In Stock, Qty 9

0

7

Echo 10158609660

SPACER

$4.99

$

In Stock, only 1 left!

0

8

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

9

Echo A200000021

INSULATOR, INTAKE

$18.99

$

Usually ships in 2-4 days

0

10

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

11

Echo 13001055930

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

12

Echo A160000120

COVER, CYLINDER

$24.99

$

Usually ships in 2-4 days

0

14

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

15

Echo 90075

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 3

$20.99

$

In Stock, Qty 18

0

16

Echo 90075C

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 3 CANADA MODELS

$20.99

$

In Stock, Qty 18

0
