PB-231 LN - Echo Handheld Blower (SN: P05711001001 - P05711999999) Ignition Parts Diagram

Handheld blower PB-231LN - 335 mm x 235 mm x 375 mm, 4.6 kg dry. Powered by a 22.8 cc (1.39 cu in), 0.6 hp, air-cooled, 2-stroke, single-cylinder engine with 32.2 mm bore and 28 mm stroke. Equipped with a Zama diaphragm carburetor (RB or RB-K65/K72). Includes fan case, blower pipes and fuel system.

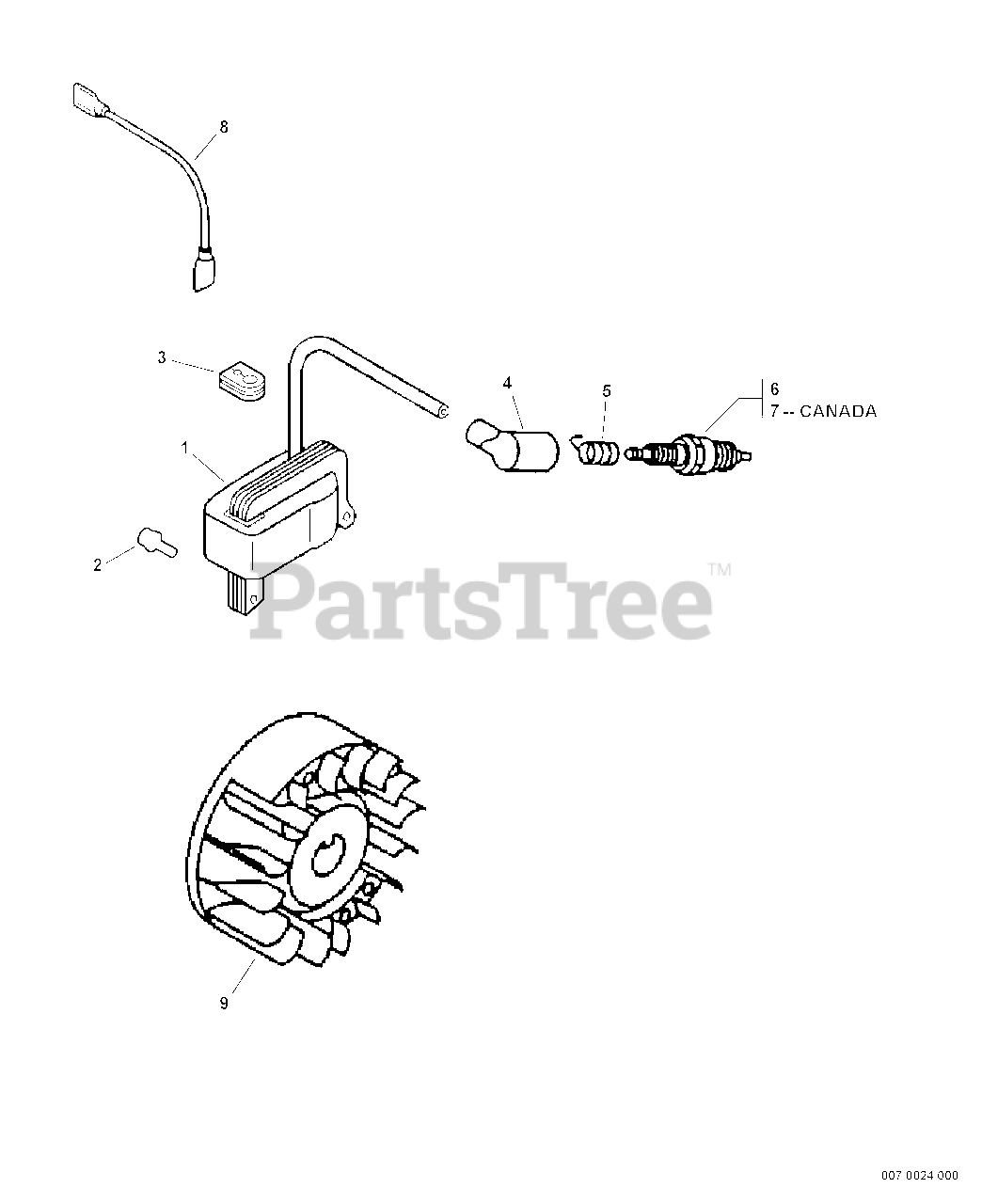

Ignition Parts Diagram

  • Title

1

Echo A411000110

COIL, IGNITION
(Superseded to P021003910)

$76.99

$

In Stock, Qty 11

0

2

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

3

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

4

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

5

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 18

0

6

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

7

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

8

Echo V485000260

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available

9

Echo A409000130

FLYWHEEL
(Superseded to A409001190)

$115.99

$

In Stock, only 2 left!

0

10

Echo 90075

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 6

$20.99

$

In Stock, Qty 20+

0

11

Echo 90075C

TUNE-UP KIT
(Superseded to 90153)

Note: Includes ITEM 7 CANADA MODELS

$20.99

$

In Stock, Qty 20+

0
