PB-24 LN - Echo Handheld Blower (Type 1) Carburetor Parts Diagram

Handheld Blower (Type 1E). Powered by a 23.6 cc (1.44 cu in) single-cylinder, air-cooled, 2-stroke engine. Bore 34 mm x stroke 26 mm. Max 7 300 rpm, idle 2 500 rpm. 0.5 L fuel tank, 50:1 gasoline-oil mix (89 octane). Weight 4.3 kg (9.5 lb). Ideal for quick, high-speed airflow.

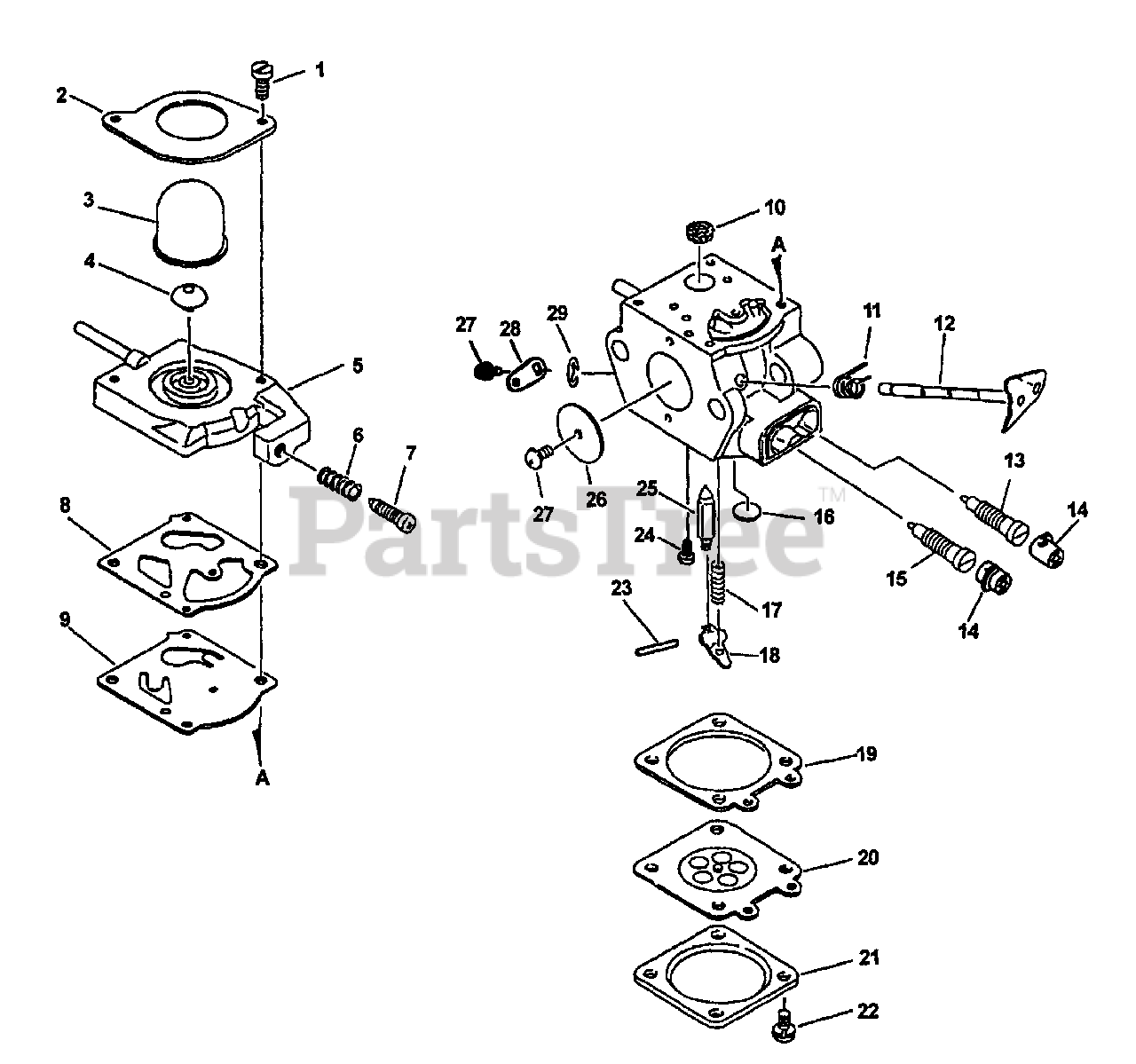

Carburetor Parts Diagram

  • Title

Echo 12300009662

CARBURETOR - WT-417
(Superseded to 12300009663)

Note: Includes ITEMS 1-29

$155.99

$

Usually ships in 2-4 days

0

1

Echo 12311043130

SCREW

$7.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$8.49

$

In Stock, only 2 left!

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$5.49

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$4.99

$

In Stock, Qty 6

0

5

Echo 12312409660

COVER, FUEL PUMP

$12.99

$

Usually ships in 2-4 days

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 2 left!

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310009660 & GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

10

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

11

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

12

Echo 12311709660

SHAFT ASSY, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

13

Echo 12312009460

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

14

Echo 12315139230

CAP, LIMITER

Note: TYPE 1E ONLY

$1.99

$

In Stock, Qty 20+

0

15

Echo 12311803660

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

16

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

17

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

18

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

19

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660 & GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

20

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009660 & GASKET/DIAPHRAGM KIT P/N 12310109660

$

$

Not available

21

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

23

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

24

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

25

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310009660

$

$

Not available

26

Echo 12311623230

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

27

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

28

Echo 12315038330

LEVER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

29

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

Echo 12310009660

REPAIR KIT

Note: INCLUDES ITEMS 8-10, 16-20, & 22-25

$24.99

$

In Stock, only 3 left!

0

Echo 12310109660

DIAPHRAGM/GASKET KIT
(Superseded to 12310151430)

Note: INCLUDES ITEMS 9, 19, 20

$15.99

$

Usually ships in 2-4 days

0
