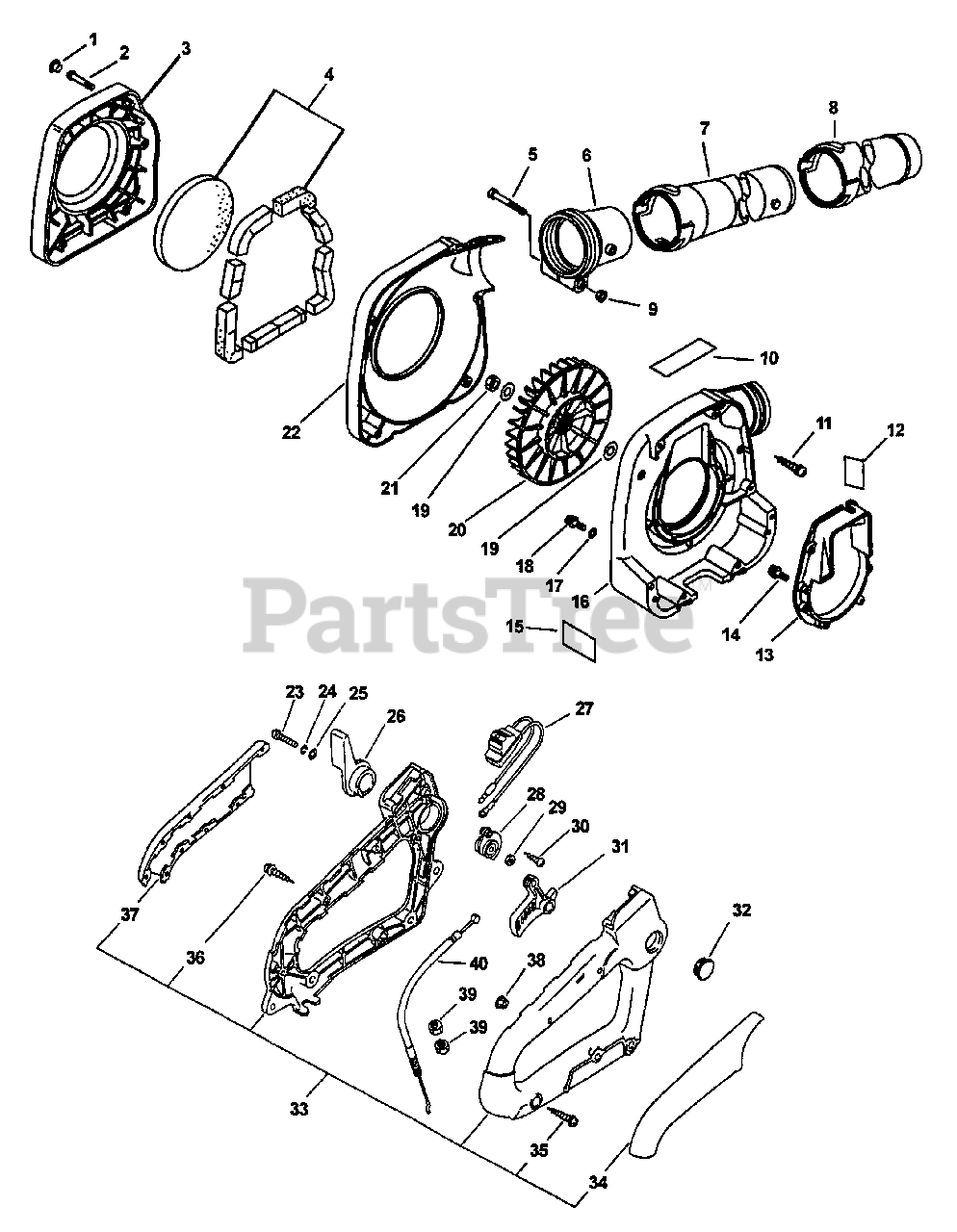

PB-24 LN - Echo Handheld Blower (Type 1) Fan, Housing, Pipes, Handle, Throttle, Stop Switch Parts Diagram

Handheld Blower (Type 1)

Fan, Housing, Pipes, Handle, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 10404409660

PLUG
(Superseded to Discontinued)

$

$

Not available

2

Echo 88995021060

SCREW 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 20014509660

GRID, FAN CASE

$33.99

$

Usually ships in 2-4 days

0

4

Echo 88082609660

PAD, FOAM ASSY (8 PCS)
(Superseded to Discontinued)

$

$

Not available

5

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

6

Echo 21002409560

ADAPTER, TUBE
(Superseded to 21002409561)

$

$

Not available

7

Echo 21001409560

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

8

Echo 21002709560

TUBE, BLOWER - NOZZLE

$23.99

$

Usually ships in 2-4 days

0

9

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

10

Echo 89017609660

LABEL - NOISE

$2.49

$

Usually ships in 2-4 days

0

11

Echo 90025305030

SCREW 5×30

$0.99

$

In Stock, only 1 left!

0

12

Echo 89022808760

LABEL - CAUTION -- SPANISH
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

13

Echo 10493005061

BRACKET, ENGINE

$37.99

$

Usually ships in 2-4 days

0

14

Echo 90016204018

SCREW - 4×18

$1.49

$

Usually ships in 2-4 days

0

15

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0

16

Echo 20010709561

CASE, FAN

$62.99

$

Usually ships in 2-4 days

0

17

Echo 10403208760

WASHER

$1.99

$

Usually ships in 2-4 days

0

18

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

19

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

20

Echo 20001009660

FAN
(Superseded to E100000050)

$17.99

$

Usually ships in 2-4 days

0

21

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

22

Echo 20011009660

COVER, FAN - LEFT

$55.99

$

Usually ships in 2-4 days

0

23

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, only 2 left!

0

24

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

25

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

26

Echo 17805407560

CONTROL, THROTTLE

$15.99

$

In Stock, Qty 9

0

27

Echo 16340109660

IGNITION SWITCH ASSY
(Superseded to 16340109661)

$15.99

$

Usually ships in 2-4 days

0

28

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, only 4 left!

0

29

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

30

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

31

Echo 17801007560

TRIGGER, THROTTLE
(Superseded to 17801007561)

$4.49

$

In Stock, Qty 11

0

32

Echo 35114607560

PLUG

$3.99

$

In Stock, only 1 left!

0

33

Echo 35100009660

HANDLE KIT
(Superseded to 35100009661)

Note: INCLUDES ITEMS 34 - 37

$29.99

$

Usually ships in 2-4 days

0

34

Echo 35131109660

GRIP, RIGHT
(Superseded to 35131109661)

$10.99

$

Usually ships in 2-4 days

0

35

Echo 90025305035

SCREW 5×35
(Superseded to Discontinued)

$

$

Not available

36

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

37

Echo 35131509660

GRIP, LEFT
(Superseded to 35131509661)

$10.99

$

Usually ships in 2-4 days

0

38

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

39

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

40

Echo 17800109560

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0
