PB-24 LN - Echo Handheld Blower (Type 1) Ignition, Starter, Fuel System Parts Diagram

Handheld Blower (Type 1E). Powered by a 23.6 cc (1.44 cu in) single-cylinder, air-cooled, 2-stroke engine. Bore 34 mm x stroke 26 mm. Max 7 300 rpm, idle 2 500 rpm. 0.5 L fuel tank, 50:1 gasoline-oil mix (89 octane). Weight 4.3 kg (9.5 lb). Ideal for quick, high-speed airflow.

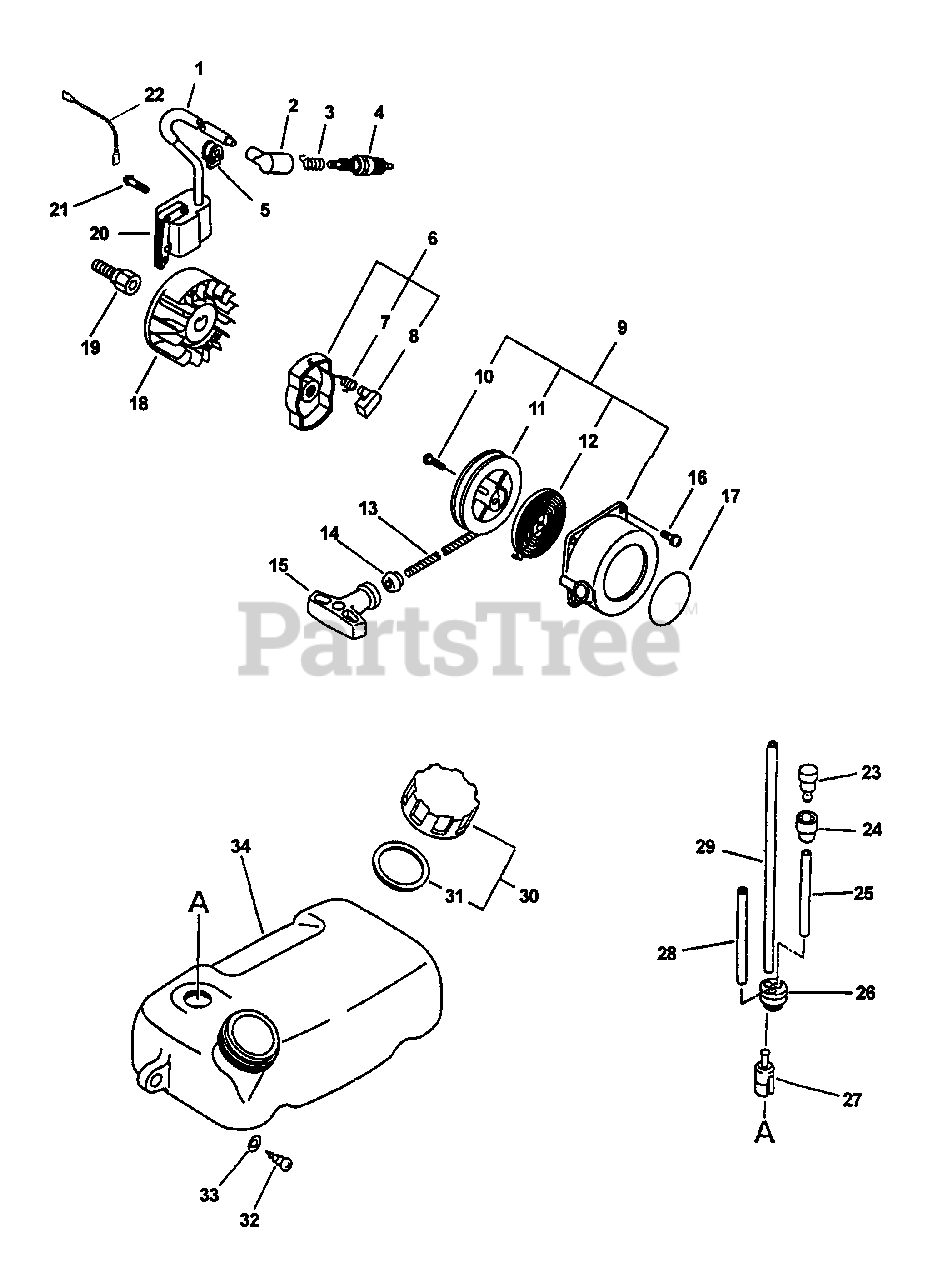

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

2

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

3

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

4

Echo 99944500071

SPARK PLUG - BPM-7Y

$2.49

$

In Stock, Qty 9

0

5

Echo 15011205060

BUSHING

$1.49

$

Usually ships in 2-4 days

0

6

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 7 & 8

$11.99

$

In Stock, Qty 7

0

7

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 20+

0

8

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

9

Echo 17720009560

STARTER ASSY

Note: Includes ITEMS 10-15

$48.99

$

In Stock, only 2 left!

0

10

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

11

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

12

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 20+

0

------------------

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$

$

Not available

14

Echo 17722709560

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

16

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

17

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, Qty 6

0

18

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

19

Echo 20001105661

HUB, FAN

$18.99

$

Usually ships in 2-4 days

0

20

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

$124.99

$

Usually ships in 2-4 days

0

21

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

22

Echo 16201009660

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

23

Echo A356000031

VENT ASSY

Note: INCLUDED IN VENT/CAP, REPOWER KIT P/N 90010

$9.49

$

In Stock, Qty 20+

0

24

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

25

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

26

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

27

Echo 131205-07320

FILTER, FUEL

Note: INCLUDED IN REPOWER FILTRATION KIT P/N 90030

$6.49

$

In Stock, Qty 20+

0

28

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 20+

0

29

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

30

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEM 31; (INCLUDED IN VENT/CAP, REPOWER KIT P/N 90010)

$5.49

$

In Stock, Qty 7

0

31

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

32

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

33

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 13100509560

TANK, FUEL
(Superseded to 13100509561)

$40.99

$

Usually ships in 2-4 days

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$42.99

$

In Stock, Qty 20+

0

Echo 90030

REPOWER FILTRATION KIT
(Superseded to 90153)

Note: Includes ITEM 27

$20.99

$

In Stock, Qty 19

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

Note: INCLUDES ITEMS 23 & 30

$

$

Not available
