PB-24 LN - Echo Handheld Blower (Type 1E) Ignition, Starter, Fuel System Parts Diagram

Handheld Blower (Type 1E)

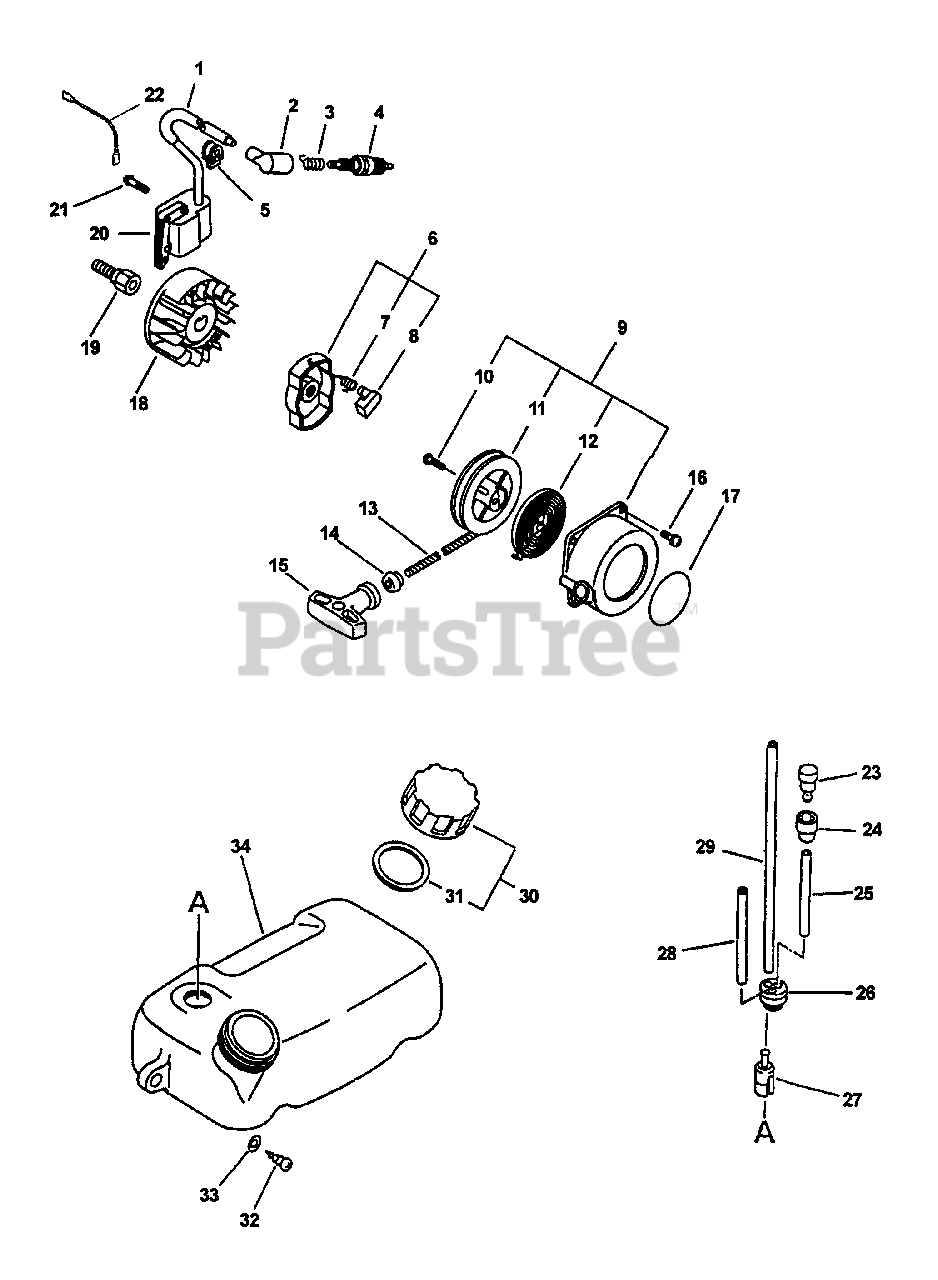

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo 15661105060

TUBE

$1.99

$

In Stock, Qty 5

0

2

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

3

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

4

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

5

Echo 15011205060

GROMMET

$1.49

$

Usually ships in 2-4 days

0

6

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 7 & 8

$19.99

$

In Stock, only 1 left!

0

7

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

8

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

9

Echo 17720009560

STARTER ASSY

Note: Includes ITEMS 10-15

$48.99

$

In Stock, only 2 left!

0

10

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

11

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

12

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 13

0

13

------------------

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$

$

Not available

14

Echo 17722709560

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

15

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

16

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

17

Echo 89011849330

LABEL - ECHO

$7.49

$

In Stock, only 2 left!

0

18

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

19

Echo 20001105661

HUB, FAN

$18.99

$

In Stock, only 1 left!

0

20

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

$124.99

$

Usually ships in 2-4 days

0

21

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

22

Echo 16201009660

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

23

Echo A356000031

VENT, FUEL TANK

Note: INCLUDED IN VENT/CAP, REPOWER KIT P/N 90010

$9.49

$

In Stock, Qty 20+

0

24

Echo 13132840630

COVER, VENT

$7.49

$

In Stock, Qty 20+

0

25

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

26

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

27

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN REPOWER FILTRATION KIT P/N 90030

$6.49

$

In Stock, Qty 20+

0

28

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 19

0

29

Echo V471001230

PIPE - 3X5X210 -- BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 9

0

30

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLUDES ITEM 31; (INCLUDED IN VENT/CAP, REPOWER KIT P/N 90010)

$5.49

$

In Stock, only 2 left!

0

31

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 19

0

32

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.99

$

In Stock, Qty 20+

0

33

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 13100509560

TANK, FUEL
(Superseded to 13100509561)

$40.99

$

Usually ships in 2-4 days

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$42.99

$

In Stock, Qty 20+

0

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

Note: Includes ITEM 27

$20.99

$

In Stock, Qty 13

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

Note: INCLUDES ITEMS 23 & 30

$

$

Not available
