PB-2400 - Echo Handheld Blower (Type 1) Carburetor WT-274 Parts Diagram

Handheld Blower (Type 1)

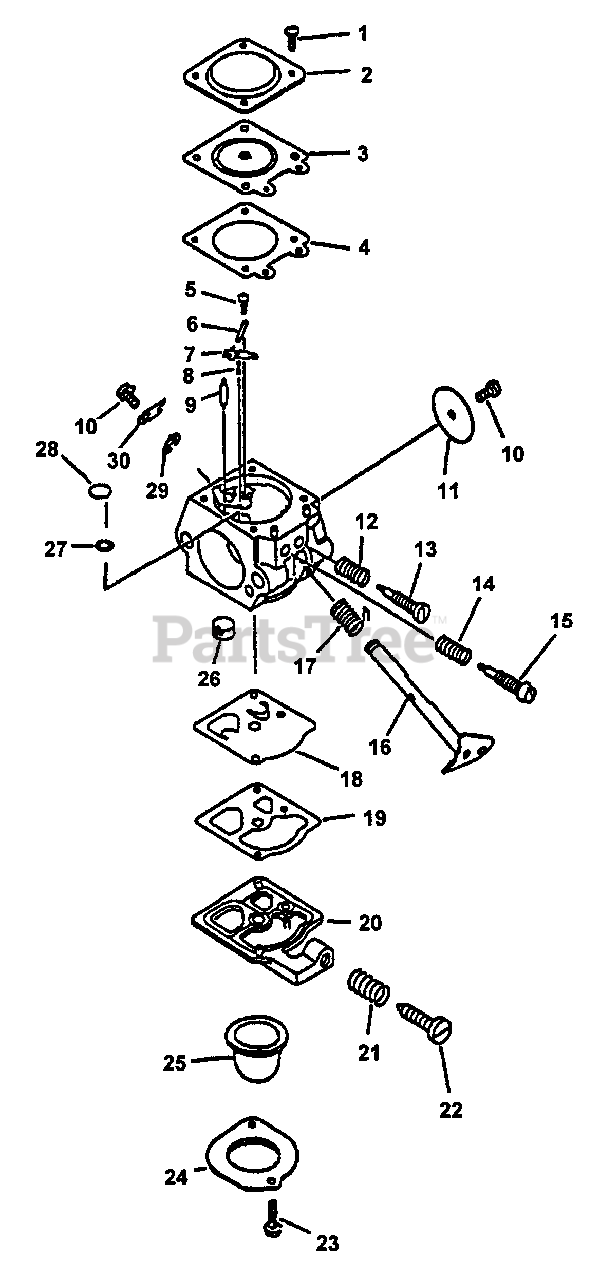

Carburetor WT-274 Parts Diagram

  • Title

Echo 12300009560

CARBURETOR WT-274
(Superseded to 12300009661)

Note: INCLUDES ITEMS 1 - 30

$155.99

$

In Stock, only 1 left!

0

1

Echo 12313002960

SCREW

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009560 AND IN GASKET/DIAPHRAGM KIT P/N 12310109560

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009560 AND IN GASKET/DIAPHRAGM KIT P/N 12310109560

$

$

Not available

5

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

6

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

10

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

11

Echo 12311609560

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

12

------------------

SPRING, LOW NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

13

Echo 12311824430

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

14

------------------

SPRING, HIGH SPEED NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

15

Echo 12312009560

NEEDLE - HIGH SPEED

$7.99

$

Usually ships in 2-4 days

0

16

Echo 12311709560

SHAFT, THROTTLE

$7.99

$

Usually ships in 2-4 days

0

17

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

18

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310009560 AND IN GASKET/DIAPHRAGM KIT P/N 12310109560

$

$

Not available

19

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310009560 AND IN GASKET/DIAPHRAGM KIT P/N 12310109560

$

$

Not available

20

Echo 12312409560

COVER, PUMP
(Superseded to 12312409561)

$12.99

$

Usually ships in 2-4 days

0

21

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 4 left!

0

22

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

23

Echo 12311009560

SCREW

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12314209560

RETAINER, PURGE BULB

$8.49

$

In Stock, only 2 left!

0

25

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$5.49

$

In Stock, Qty 20+

0

26

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

27

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

28

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310009560

$

$

Not available

29

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

30

Echo 12315038330

LEVER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

Echo 12310009560

REPAIR KIT

$20.99

$

Usually ships in 2-4 days

0

Echo 12310109560

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
