PB-2400 - Echo Handheld Blower (Type 1) Crankcase, Engine, Engine Cover Parts Diagram

Handheld Blower (Type 1)

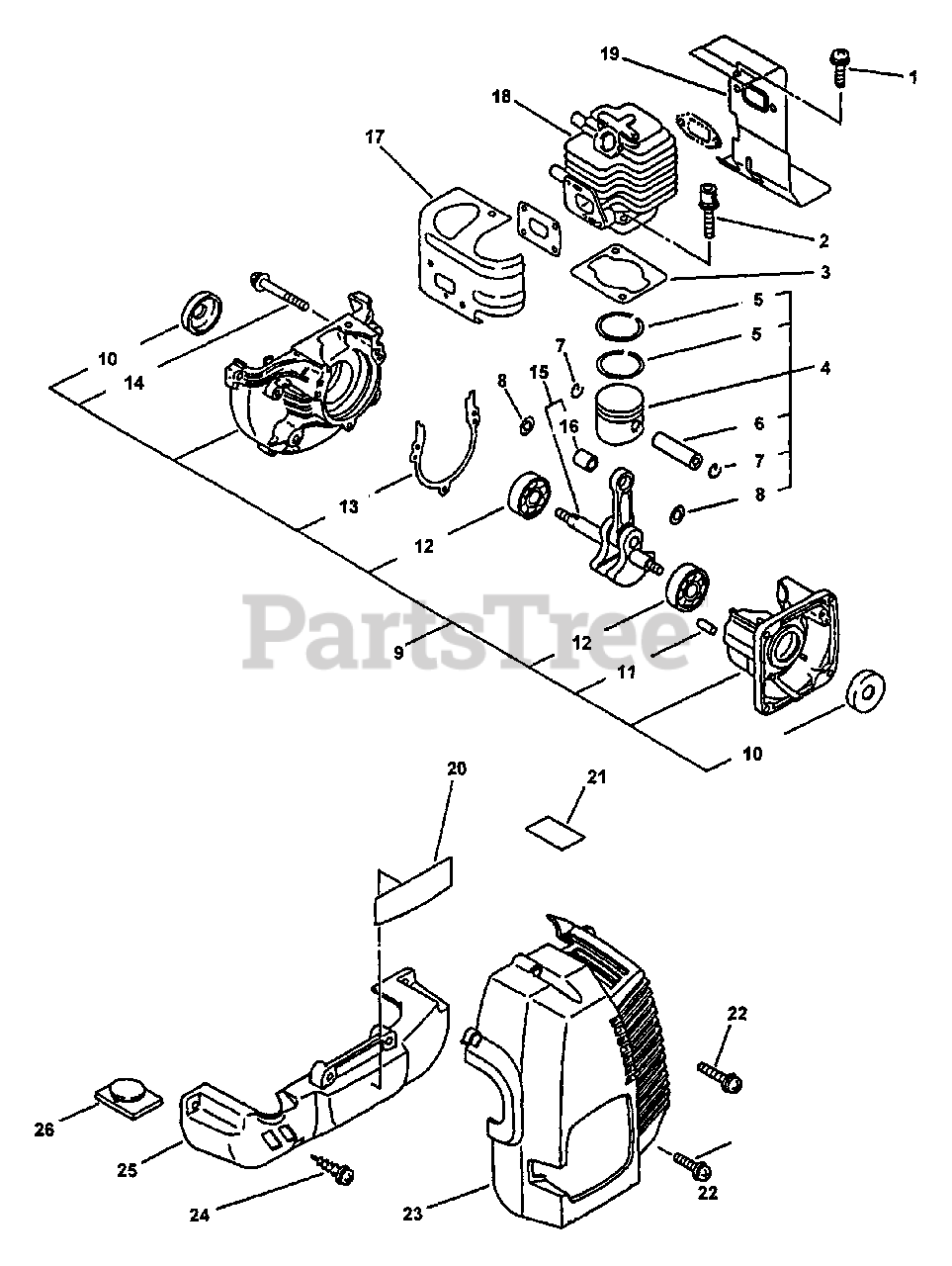

Crankcase, Engine, Engine Cover Parts Diagram

  • Title

1

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

4

Echo 10000009560

PISTON KIT
(Superseded to 10000009561)

Note: S/N 001001 - 057052; INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

4

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: S/N 057053 & UP; INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 10-14

$157.99

$

Usually ships in 2-4 days

0

10

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

11

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

12

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

13

------------------

GASKET, CRANKCASE

$

$

Not available

14

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10010044731

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 16

$186.99

$

Usually ships in 2-4 days

0

16

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

17

Echo 10151409560

COVER, CYLINDER - INTAKE

$18.99

$

Usually ships in 2-4 days

0

18

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

Note: S/N 001001 - 057052

$

$

Not available

18

Echo 10101108961

CYLINDER

Note: S/N 057053 & UP

$282.99

$

Usually ships in 2-4 days

0

19

Echo 10157609560

COVER, CYLINDER - EXHAUST

$26.99

$

Usually ships in 2-4 days

0

20

Echo 89011209560

LABEL - MODEL

$4.99

$

Usually ships in 2-4 days

0

21

Echo 89019406360

LABEL - HOT SURFACE

$3.99

$

Usually ships in 2-4 days

0

22

Echo 90023805016

SCREW - 5X16

Note: S/N 001001 - 050013

$0.99

$

In Stock, Qty 20+

0

23

Echo 10401609560

COVER, ENGINE
(Superseded to 10401609661)

Note: S/N 001001 - 050013

$43.99

$

Usually ships in 2-4 days

0

23

Echo 10401609661

COVER, ENGINE

Note: S/N 050014 & UP

$43.99

$

Usually ships in 2-4 days

0

24

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.99

$

In Stock, Qty 20+

0

25

Echo 10400509560

COVER
(Superseded to 10400509561)

Note: S/N 001001 - 050013

$38.99

$

Usually ships in 2-4 days

0

25

Echo 10400509562

COVER
(Superseded to 10400509563)

Note: S/N 050014 & UP

$38.99

$

Usually ships in 2-4 days

0

26

Echo 10491009560

CUSHION

$7.99

$

Usually ships in 2-4 days

0

Echo SB1016

SHORT BLOCK -- SB1016
(Superseded to Discontinued)

$

$

Not available

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

Note: TYPE 1E

$

$

Not available

Echo 88900009560

GASKET KIT

Note: S/N 001001 - 017620; INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001009561

GASKET, INTAKE

$3.49

$

Usually ships in 2-4 days

0

Echo 13001609561

GASKET, INTAKE

$2.99

$

Usually ships in 2-4 days

0

Echo 14586609560

GASKET, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

Echo 14551009560

GASKET, EXHAUST
(Superseded to 14551042031)

$2.49

$

In Stock, Qty 20+

0

Echo 88900009660

GASKET KIT
(Superseded to Discontinued)

Note: S/N 017621 & UP; INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001009561

GASKET, INTAKE

$3.49

$

Usually ships in 2-4 days

0

Echo 13001609561

GASKET, INTAKE

$2.99

$

Usually ships in 2-4 days

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 9

0

Echo 14586609660

GASKET, EXHAUST

$6.99

$

Usually ships in 2-4 days

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0
