PB-2400 - Echo Handheld Blower (Type 1) Ignition, Starter, Handle, Stop Switch, Throttle Parts Diagram

Handheld Blower (Type 1) - compact 340 mm x 215 mm x 375 mm (13.4? x 8.46? x 14.75?), 4.3 kg dry. Powered by an air-cooled, 2-stroke single-cylinder gasoline engine. Includes a full crankcase, piston, and cylinder kit, making it ideal for high-volume, portable dust or debris removal.

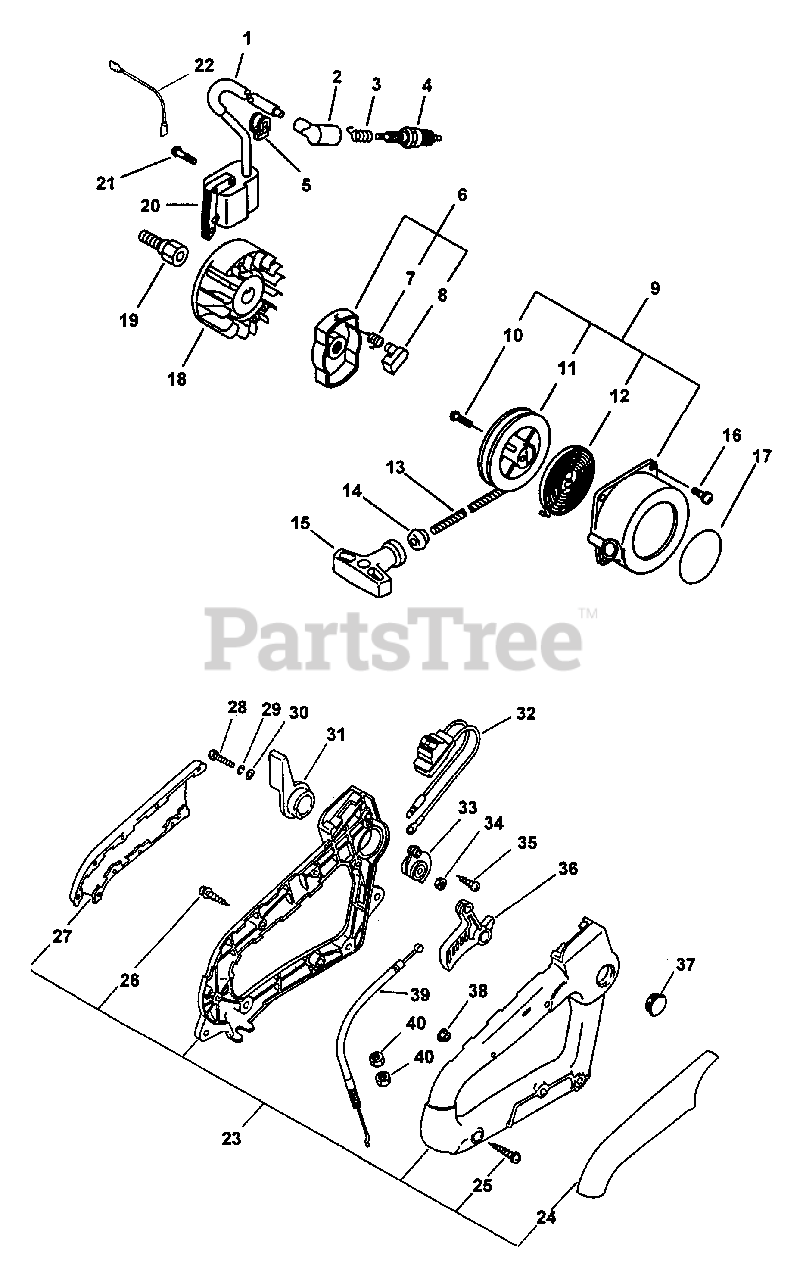

Ignition, Starter, Handle, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

2

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

3

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

4

Echo 99944500071

SPARK PLUG - BPM-7Y

Note: INCLUDED IN KIT 90057

$2.49

$

In Stock, Qty 6

0

5

Echo 15011205060

BUSHING

$1.49

$

Usually ships in 2-4 days

0

6

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 7 & 8

$11.99

$

In Stock, Qty 7

0

7

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 19

0

8

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

9

Echo 17720009560

STARTER ASSY

Note: Includes ITEMS 10-15

$48.99

$

In Stock, only 2 left!

0

10

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

11

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

12

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 20+

0

13

Echo 99944450000

BULK STARTER ROPE - Ø 4.0 MM×61 M

Note: RePower BULK OPTION: 99944450000

$42.99

$

In Stock, Qty 20+

0

14

Echo 17722709560

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

16

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

17

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, Qty 5

0

18

Echo 156801-44731

FLYWHEEL

Note: S/N 001001 - 056585

$126.99

$

Usually ships in 2-4 days

0

18

Echo 15680109660

FLYWHEEL

Note: S/N 056586 & UP

$90.99

$

Usually ships in 2-4 days

0

19

Echo 20001105661

HUB, FAN

$18.99

$

Usually ships in 2-4 days

0

20

Echo 15662609560

COIL, IGNITION
(Superseded to 15662609561)

Note: S/N 001001 - 056585

$

$

Not available

20

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: S/N 056586 & UP

$124.99

$

Usually ships in 2-4 days

0

21

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

22

Echo 16201009660

LEAD - GROUND

Note: S/N 056586 & UP

$4.49

$

Usually ships in 2-4 days

0

23

Echo 35100009561

HANDLE SET
(Superseded to 35100009660)

Note: S/N 001001 - 050483; INCLUDES ITEMS 24 - 27

$29.99

$

Usually ships in 2-4 days

0

23

Echo 35100009660

HANDLE KIT
(Superseded to 35100009661)

Note: S/N 050484 & UP; INCLUDES ITEMS 24 - 27

$29.99

$

Usually ships in 2-4 days

0

24

Echo 35131109561

GRIP, HANDLE - RIGHT
(Superseded to 35100009660)

Note: S/N 001001 - 050483

$29.99

$

Usually ships in 2-4 days

0

24

Echo 35131109660

GRIP, RIGHT
(Superseded to 35131109661)

Note: S/N 050484 & UP

$10.99

$

Usually ships in 2-4 days

0

25

Echo 90025305035

SCREW 5×35
(Superseded to Discontinued)

$

$

Not available

26

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

27

Echo 35131509561

GRIP, HANDLE - LEFT
(Superseded to 35100009660)

Note: S/N 001001 - 050483

$29.99

$

Usually ships in 2-4 days

0

27

Echo 35131509660

GRIP, LEFT
(Superseded to 35131509661)

Note: S/N 050484 & UP

$10.99

$

Usually ships in 2-4 days

0

28

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, Qty 5

0

29

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

30

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

31

Echo 17805407560

CONTROL, THROTTLE

$15.99

$

In Stock, Qty 20+

0

32

Echo 16340009560

IGNITION SWITCH ASSY
(Superseded to 16340109660)

$15.99

$

Usually ships in 2-4 days

0

33

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, Qty 6

0

34

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

35

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

36

Echo 17801007560

TRIGGER, THROTTLE
(Superseded to 17801007561)

$4.49

$

In Stock, Qty 11

0

37

Echo 35114607560

PLUG

$3.99

$

In Stock, Qty 7

0

38

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

39

Echo 17800109560

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

40

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 7

0

Echo 90057

REPOWER TUNE-UP KIT
(Superseded to 90065)

$

$

Not available
