PB-2400 - Echo Handheld Blower (Type 1) Muffler Parts Diagram

Handheld Blower (Type 1) - compact 340 mm x 215 mm x 375 mm (13.4? x 8.46? x 14.75?), 4.3 kg dry. Powered by an air-cooled, 2-stroke single-cylinder gasoline engine. Includes a full crankcase, piston, and cylinder kit, making it ideal for high-volume, portable dust or debris removal.

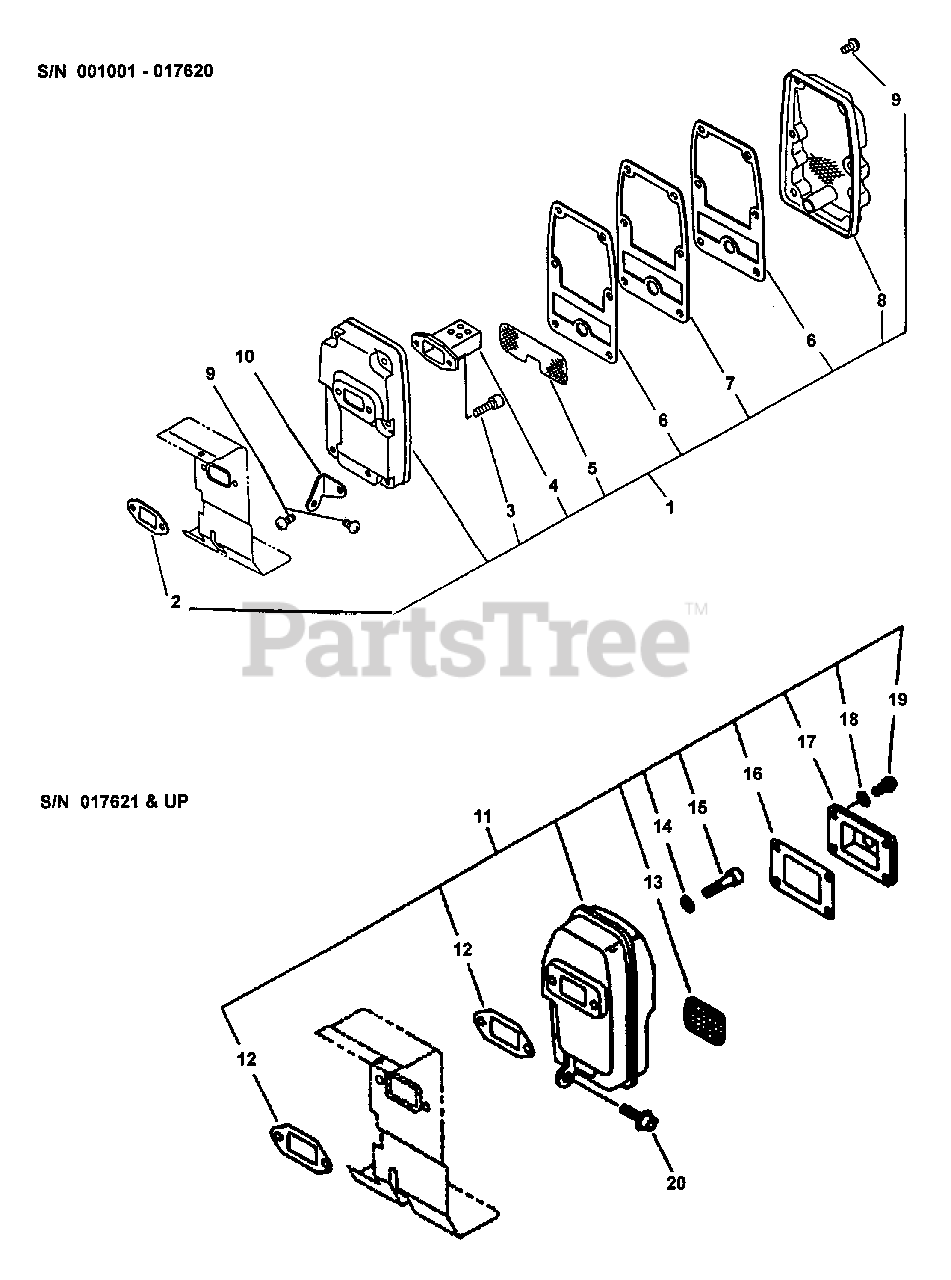

Muffler Parts Diagram

  • Title

1

Echo 14580009560

MUFFLER ASSY
(Superseded to 14580009660)

Note: S/N 001001 - 017620 INCLUDES ITEMS 2 - 9

$70.99

$

Usually ships in 2-4 days

0

2

Echo 14551009560

GASKET, EXHAUST
(Superseded to 14551042031)

Note: FOR GASKET KIT SEE "ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER" illustration and parts list.

$2.49

$

In Stock, Qty 20+

0

3

Echo 90010505018

BOLT M5×18

$1.49

$

Usually ships in 2-4 days

0

4

Echo 14585951030

BAFFLE, MUFFLER
(Superseded to 14580009660)

$70.99

$

Usually ships in 2-4 days

0

5

Echo 14586251030

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

$

$

Not available

6

Echo 14586609560

GASKET

Note: FOR GASKET KIT SEE "ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER" illustration and parts list.

$6.49

$

Usually ships in 2-4 days

0

7

Echo 14588009560

SILENCER

$4.99

$

Usually ships in 2-4 days

0

8

Echo 14580809560

COVER, MUFFLER
(Superseded to 14580009660)

$70.99

$

Usually ships in 2-4 days

0

9

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 14571109560

STAY, MUFFLER

$4.99

$

Usually ships in 2-4 days

0

11

Echo 14580009660

MUFFLER ASSY

Note: S/N 017621 & UP INCLUDES ITEMS 12 - 19

$70.99

$

Usually ships in 2-4 days

0

12

Echo V104000160

GASKET, EXHAUST

Note: FOR GASKET KIT SEE "ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER" illustration and parts list.

$2.49

$

In Stock, Qty 20+

0

13

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

16

Echo 14586609660

GASKET, EXHAUST

Note: FOR GASKET KIT SEE "ENGINE/EXTERNAL, INTERNAL, CRANKCASE, CYLINDER" illustration and parts list.

$6.99

$

Usually ships in 2-4 days

0

17

Echo 14580909660

GUIDE, EXHAUST

$12.99

$

Usually ships in 2-4 days

0

18

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

19

Echo 90011504012

SCREW - 4×12
(Superseded to 90018204008)

$

$

Not available

20

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0
