PB-2400 - Echo Handheld Blower (Type 1E) Crankcase, Engine, Engine Cover Parts Diagram

Handheld Blower (Type 1) - compact 340 mm x 215 mm x 375 mm (13.4? x 8.46? x 14.75?), 4.3 kg dry. Powered by an air-cooled, 2-stroke single-cylinder gasoline engine. Includes a full crankcase, piston, and cylinder kit, making it ideal for high-volume, portable dust or debris removal.

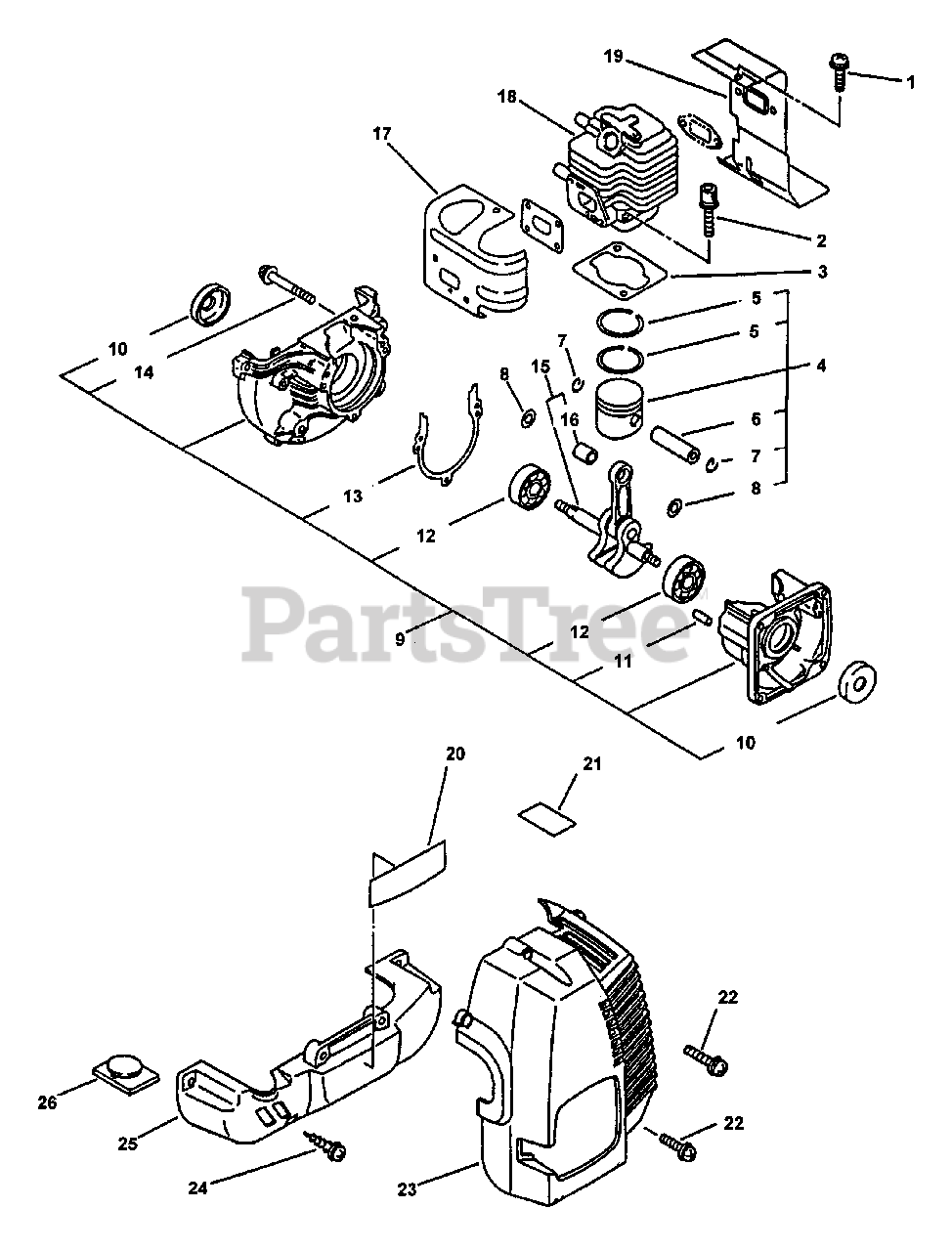

Crankcase, Engine, Engine Cover Parts Diagram

  • Title

1

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN GASKET KIT, P/N 88900009660

$4.99

$

In Stock, Qty 6

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: S/N 001001-001489, Includes ITEMS 5-8

$84.99

$

In Stock, only 1 left!

0

4

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: S/N 001490 & UP, INCLUDES ITEMS 5-8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 10-14

$157.99

$

Usually ships in 2-4 days

0

10

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

11

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

12

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

13

Echo 88900009660

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDED IN GASKET KIT, P/N 88900009660

$

$

Not available

14

Echo 90023805028

SCREW 5×28

Note: Includes ITEM 16

$0.99

$

Usually ships in 2-4 days

0

15

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

$186.99

$

Usually ships in 2-4 days

0

16

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

17

Echo 10151409560

COVER, CYLINDER

$18.99

$

Usually ships in 2-4 days

0

18

Echo 10101108960

CYLINDER
(Superseded to 10100308960)

Note: S/N 001001-001489

$

$

Not available

18

Echo 10101108961

CYLINDER

Note: S/N 001490 & UP

$282.99

$

Usually ships in 2-4 days

0

19

Echo 10157609560

COVER, CYLINDER

$26.99

$

Usually ships in 2-4 days

0

20

Echo 89011209560

LABEL, MODEL

$4.99

$

Usually ships in 2-4 days

0

21

Echo 89019406360

LABEL - CAUTION -- HOT

$3.99

$

Usually ships in 2-4 days

0

22

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

23

Echo 10401609661

COVER, ENGINE

$43.99

$

Usually ships in 2-4 days

0

24

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

25

Echo 10400509562

COVER
(Superseded to 10400509563)

$38.99

$

Usually ships in 2-4 days

0

26

Echo 10491009560

CUSHION

$7.99

$

Usually ships in 2-4 days

0

Echo SB1027

SHORT BLOCK ES-2400
(Superseded to Discontinued)

$

$

Not available

Echo 88900009660

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE

$

$

Not available

Echo 13001009561

GASKET, INTAKE

$3.49

$

Usually ships in 2-4 days

0

Echo 13001609561

GASKET, INTAKE

$2.99

$

Usually ships in 2-4 days

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 14586609660

GASKET, EXHAUST

$6.99

$

Usually ships in 2-4 days

0
