PB-2400 - Echo Handheld Blower (Type 1E) Fancase, Blower Pipes, Handle, Stop Switch, Throttle Parts Diagram

Handheld Blower (Type 1) - compact 340 mm x 215 mm x 375 mm (13.4? x 8.46? x 14.75?), 4.3 kg dry. Powered by an air-cooled, 2-stroke single-cylinder gasoline engine. Includes a full crankcase, piston, and cylinder kit, making it ideal for high-volume, portable dust or debris removal.

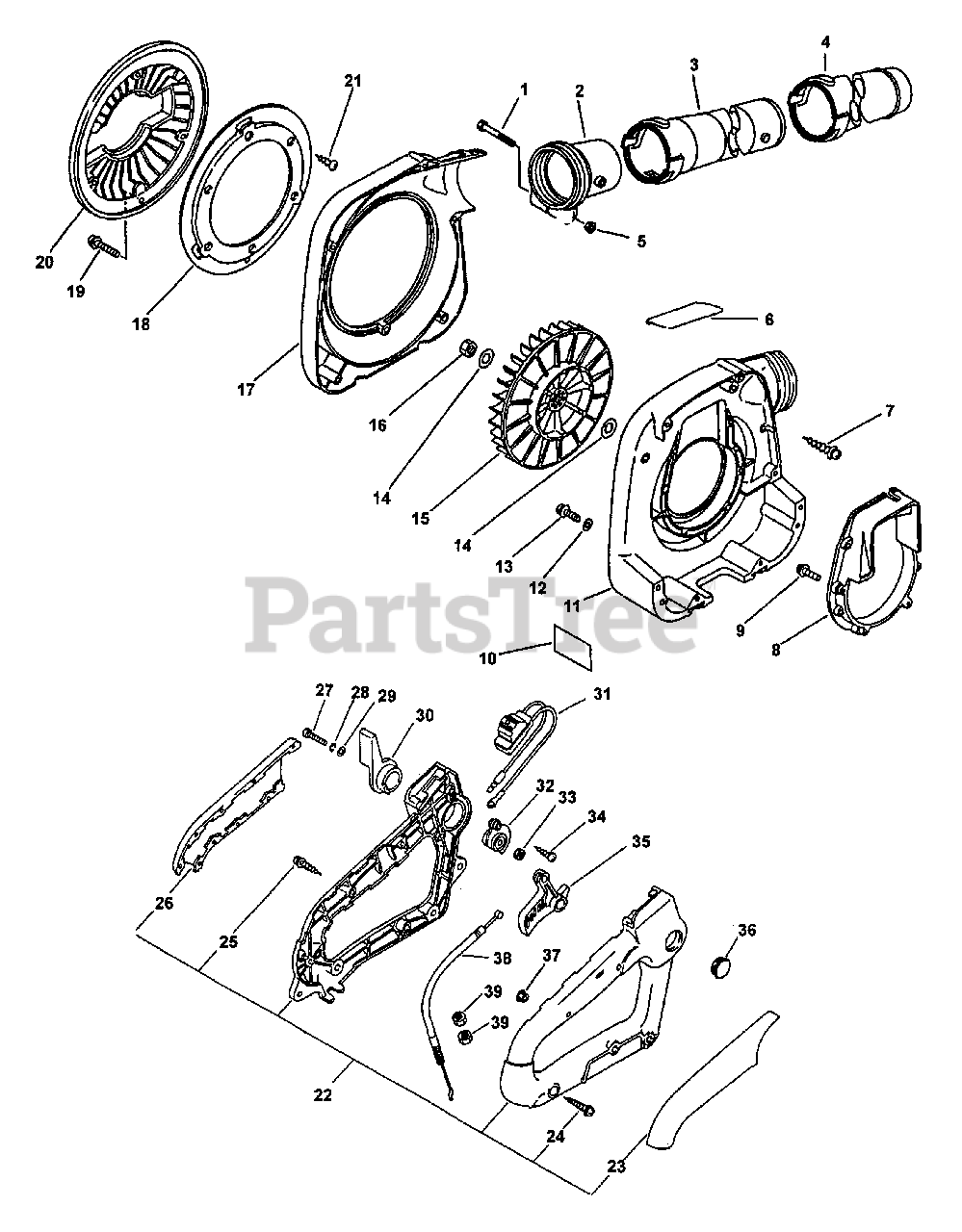

Fancase, Blower Pipes, Handle, Stop Switch, Throttle Parts Diagram

  • Title

1

Echo 90023505060

SCREW - 5×60
(Superseded to 90010505060)

$2.49

$

In Stock, only 2 left!

0

2

Echo 21002409560

ADAPTER, TUBE
(Superseded to 21002409561)

$

$

Not available

3

Echo 21001409560

TUBE, BLOWER - STRAIGHT

$18.99

$

Usually ships in 2-4 days

0

4

Echo 21002709560

TUBE, BLOWER - NOZZLE

$23.99

$

Usually ships in 2-4 days

0

5

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

6

Echo 89017609561

LABEL - NOISE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90025305030

SCREW 5×30

$0.99

$

In Stock, only 1 left!

0

8

Echo 10493005061

BRACKET, ENGINE

$37.99

$

Usually ships in 2-4 days

0

9

Echo 90023804018

SCREW 4×18

$0.99

$

In Stock, only 3 left!

0

10

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 15

0

11

Echo 20010709561

CASE, FAN

$62.99

$

Usually ships in 2-4 days

0

12

Echo 10403208760

WASHER

$1.99

$

Usually ships in 2-4 days

0

13

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

14

Echo 10013205660

WASHER

$2.49

$

In Stock, only 1 left!

0

15

Echo 20001009660

FAN
(Superseded to E100000050)

$17.99

$

Usually ships in 2-4 days

0

16

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

17

Echo 20010509560

COVER, FAN - LEFT

$81.99

$

Usually ships in 2-4 days

0

18

Echo 20014409560

BASE, GRID

$19.99

$

Usually ships in 2-4 days

0

19

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

20

Echo 20012409560

SHIELD, DEBRIS

$38.99

$

Usually ships in 2-4 days

0

21

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

22

Echo 35100009660

HANDLE KIT
(Superseded to 35100009661)

Note: INCLUDES ITEMS 23-26

$29.99

$

Usually ships in 2-4 days

0

23

Echo 35131109660

GRIP, RIGHT
(Superseded to 35131109661)

$10.99

$

Usually ships in 2-4 days

0

24

Echo 90025305035

SCREW 5×35
(Superseded to Discontinued)

$

$

Not available

25

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

26

Echo 35131509660

GRIP, LEFT
(Superseded to 35131509661)

$10.99

$

Usually ships in 2-4 days

0

27

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, Qty 5

0

28

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

29

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

30

Echo 17805407560

CONTROL, THROTTLE

$15.99

$

In Stock, Qty 20+

0

31

Echo 16340009560

IGNITION SWITCH ASSY
(Superseded to 16340109660)

$15.99

$

Usually ships in 2-4 days

0

32

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, Qty 6

0

33

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

34

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

35

Echo 17801007560

TRIGGER, THROTTLE
(Superseded to 17801007561)

$4.49

$

In Stock, Qty 11

0

36

Echo 35114607560

PLUG

$3.99

$

In Stock, Qty 7

0

37

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

38

Echo 17800109560

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

39

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 7

0
