PB-2400 - Echo Handheld Blower (Type 1E) Ignition, Starter, Fuel System Parts Diagram

Handheld Blower (Type 1) - compact 340 mm x 215 mm x 375 mm (13.4? x 8.46? x 14.75?), 4.3 kg dry. Powered by an air-cooled, 2-stroke single-cylinder gasoline engine. Includes a full crankcase, piston, and cylinder kit, making it ideal for high-volume, portable dust or debris removal.

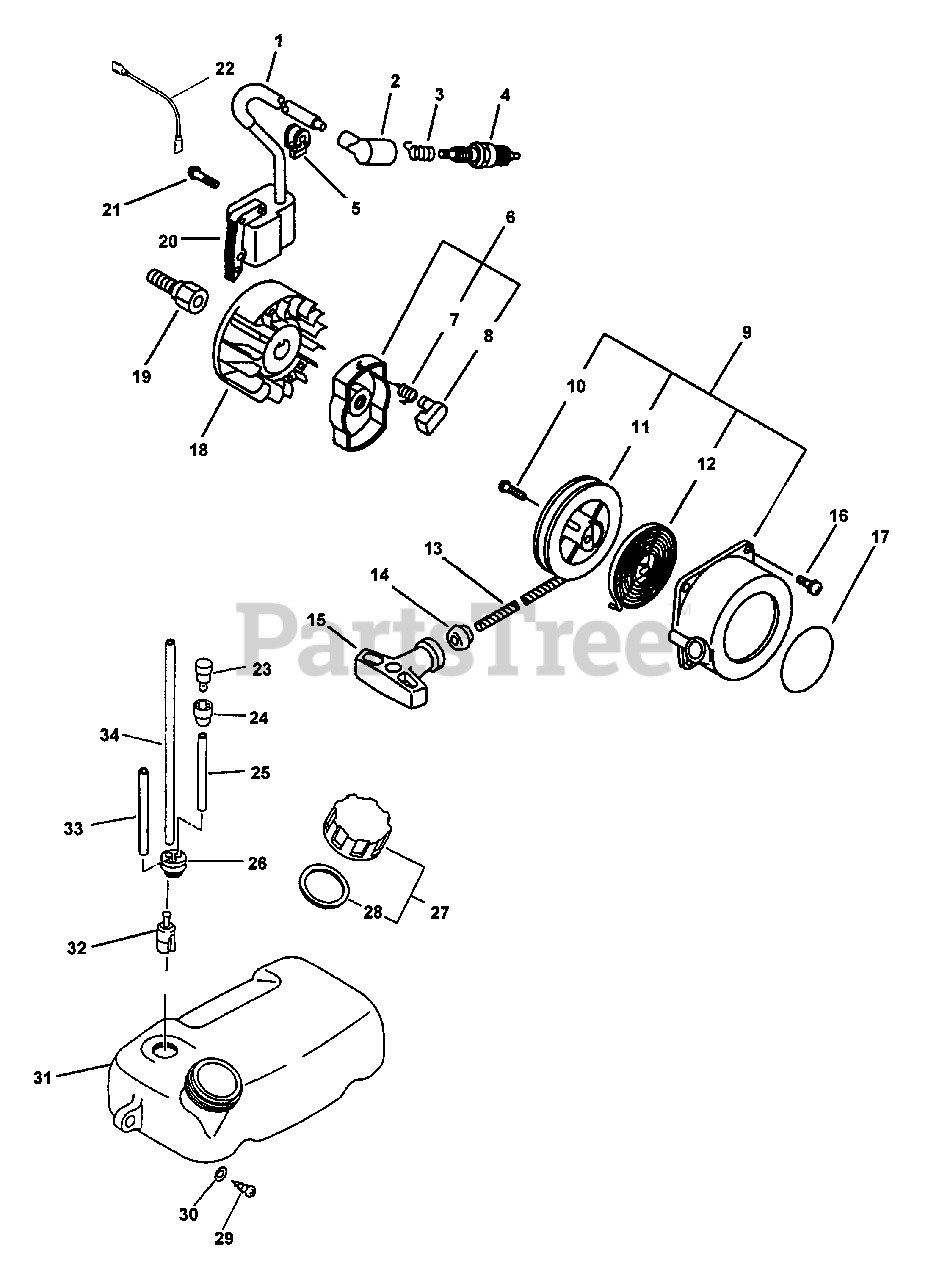

Ignition, Starter, Fuel System Parts Diagram

  • Title

1

Echo 15661105060

PIPE

$1.99

$

In Stock, Qty 5

0

2

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

3

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

4

Echo 99944500071

SPARK PLUG - BPM-7Y

Note: INCLUDED IN REPOWER TUNE UP KIT, P/N 90057

$2.49

$

In Stock, Qty 7

0

5

Echo 15011205060

BUSHING

$1.49

$

Usually ships in 2-4 days

0

6

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 7 & 8

$11.99

$

In Stock, Qty 7

0

7

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 20+

0

8

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

9

Echo 17720009560

STARTER ASSY

Note: Includes ITEMS 10-15

$48.99

$

In Stock, only 2 left!

0

10

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

11

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

12

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 20+

0

13

Echo 99944450000

BULK STARTER ROPE - Ø 4.0 MM×61 M

Note: RePower BULK OPTION: 99944450000

$42.99

$

In Stock, Qty 20+

0

14

Echo 17722709560

GUIDE, ROPE

$4.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 15

0

16

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

17

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, Qty 5

0

18

Echo 15680109660

FLYWHEEL

$90.99

$

Usually ships in 2-4 days

0

19

Echo 20001105661

HUB, FAN

$18.99

$

Usually ships in 2-4 days

0

20

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

$124.99

$

Usually ships in 2-4 days

0

21

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

22

Echo 16201009660

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

23

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

Note: INCLUDED IN REPOWER VENT/CAP KIT, P/N 90010 & REPOWER TUNE UP KIT, P/N 90057

$8.99

$

In Stock, Qty 20+

0

24

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

25

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

26

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

27

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEM 28 INCLUDED IN REPOWER VENT/CAP KIT, P/N 90010

$5.49

$

In Stock, Qty 6

0

28

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

29

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

30

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 13100509560

TANK, FUEL
(Superseded to 13100509561)

$40.99

$

Usually ships in 2-4 days

0

32

Echo 131205-07320

FILTER, FUEL

Note: INCLUDED IN REPOWER FILTRATION KIT, P/N 90030 & REPOWER TUNE UP KIT, P/N 90057

$6.49

$

In Stock, Qty 20+

0

33

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 20+

0

34

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 19

0

Echo 99944400050

BULK ROPE
(Superseded to 99944450000)

$42.99

$

In Stock, Qty 20+

0

Echo 90030

REPOWER FILTRATION KIT
(Superseded to 90153)

$20.99

$

In Stock, Qty 18

0

Echo 90057

REPOWER TUNE-UP KIT
(Superseded to 90065)

$

$

Not available

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
