PB-2455 - Echo Handheld Blower (SN: P32720001001 - P32720999999) Blower Pipes, Fan Cover Parts Diagram

Handheld Blower

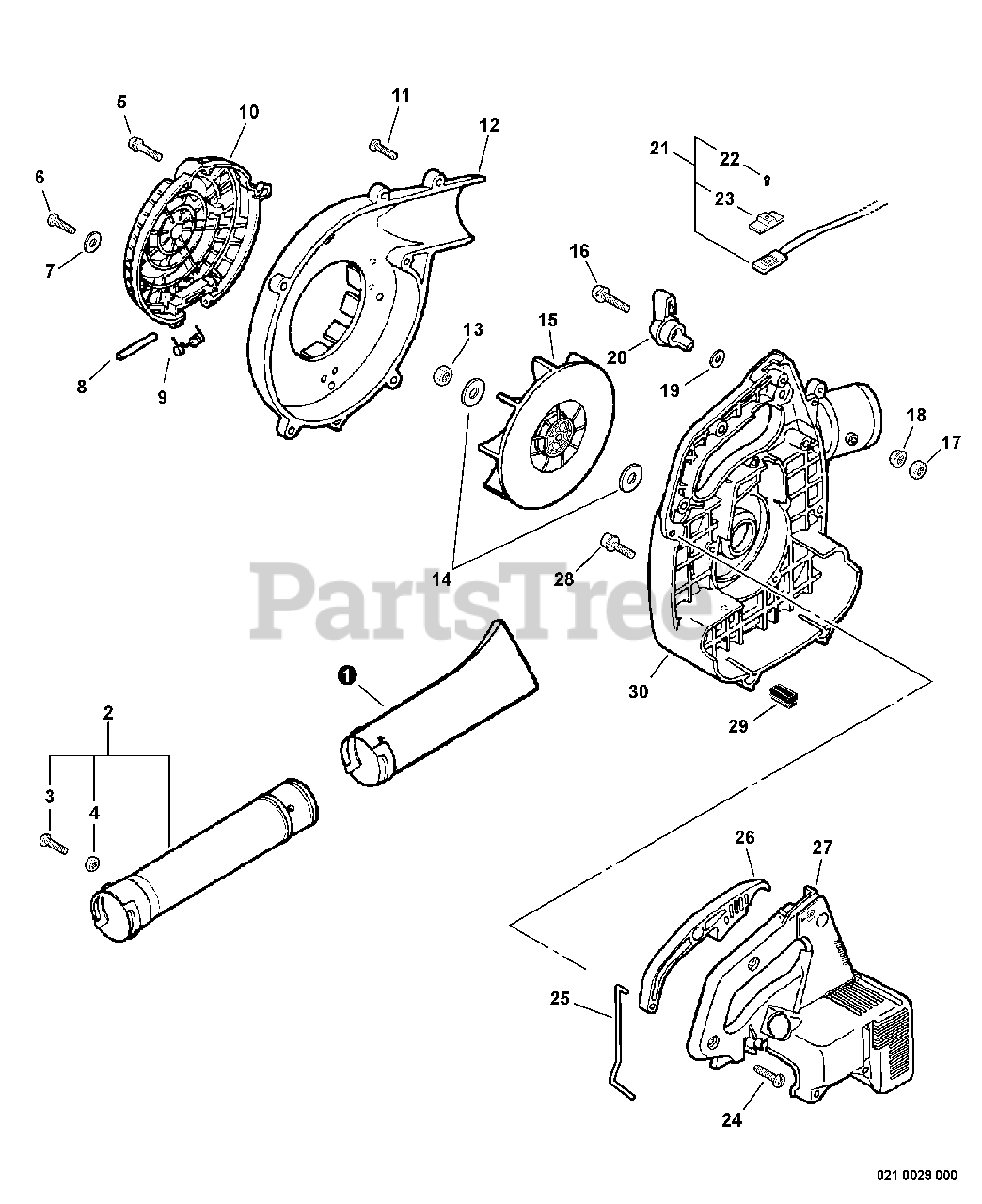

Blower Pipes, Fan Cover Parts Diagram

  • Title

1

Echo 21001420661

TUBE, BLOWER - NOZZLE

$11.99

$

Usually ships in 2-4 days

0

2

Echo 21000720660

TUBE, BLOWER - STRAIGHT

Note: Includes ITEMS 3-4

$13.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo V203000060

SCREW

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

7

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 20015005060

PIN

$3.49

$

In Stock, only 1 left!

0

9

Echo 20015205060

SPRING

$3.49

$

In Stock, only 2 left!

0

10

Echo 20012420661

GUARD, DEBRIS

$22.99

$

In Stock, only 2 left!

0

11

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, only 2 left!

0

12

Echo E103000570

COVER, FAN - LEFT

$17.99

$

Usually ships in 2-4 days

0

13

Echo 90050000008

NUT - 8

$0.99

$

In Stock, only 3 left!

0

14

Echo 10013205660

WASHER - 8

$2.49

$

In Stock, only 2 left!

0

15

Echo 20001006363

FAN

$17.99

$

In Stock, only 2 left!

0

16

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

17

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 8

0

18

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

19

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 17805421760

LEVER, THROTTLE - BLACK

$13.99

$

Usually ships in 2-4 days

0

21

Echo P021015460

IGNITION SWITCH ASSY

Note: Includes ITEM 22-23

$5.49

$

In Stock, only 1 left!

0

22

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

23

Echo A444000060

KNOB, SWITCH - ORANGE

$4.49

$

In Stock, only 2 left!

0

24

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, only 2 left!

0

25

Echo 17801120561

ROD, THROTTLE

$7.49

$

In Stock, Qty 17

0

26

Echo 17801021760

TRIGGER, THROTTLE - BLACK

$8.99

$

Usually ships in 2-4 days

0

27

Echo A190000820

COVER, ENGINE

$36.99

$

Usually ships in 2-4 days

0

28

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

29

Echo 35133520560

CUSHION

$6.99

$

Usually ships in 2-4 days

0

30

Echo E103000620

COVER, FAN - RIGHT

$26.99

$

Usually ships in 2-4 days

0
