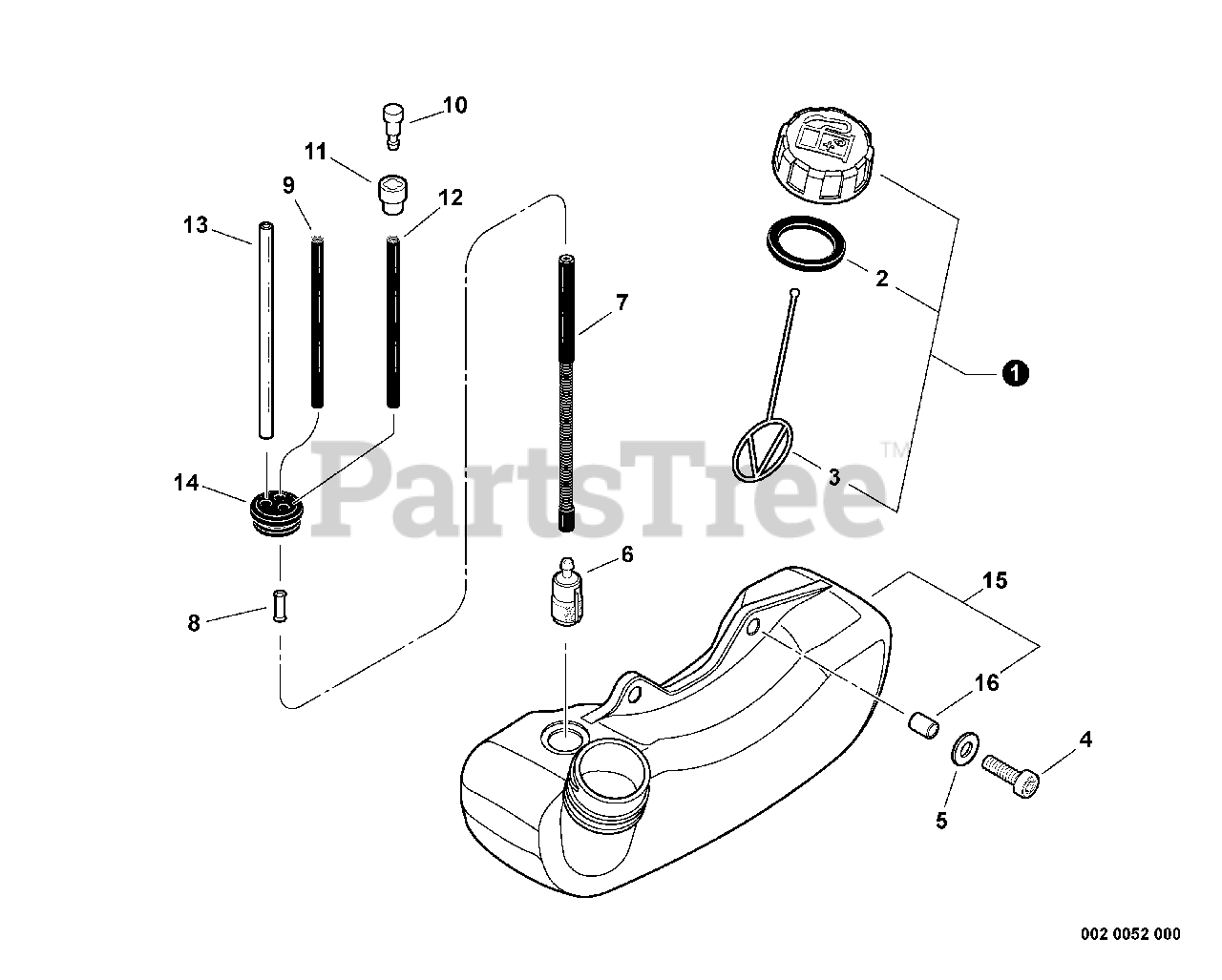

PB-2455 - Echo Handheld Blower (SN: P32720001001 - P32720999999) Fuel System Parts Diagram

Handheld Blower

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: INCLUDES ITEMS 2-3

$7.49

$

In Stock, Qty 8

0

2

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0

4

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

7

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 9

0

8

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, only 2 left!

0

9

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

10

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

11

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 11

0

12

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

13

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 8

0

14

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

15

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes ITEM 16

$29.99

$

In Stock, only 2 left!

0

16

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0
