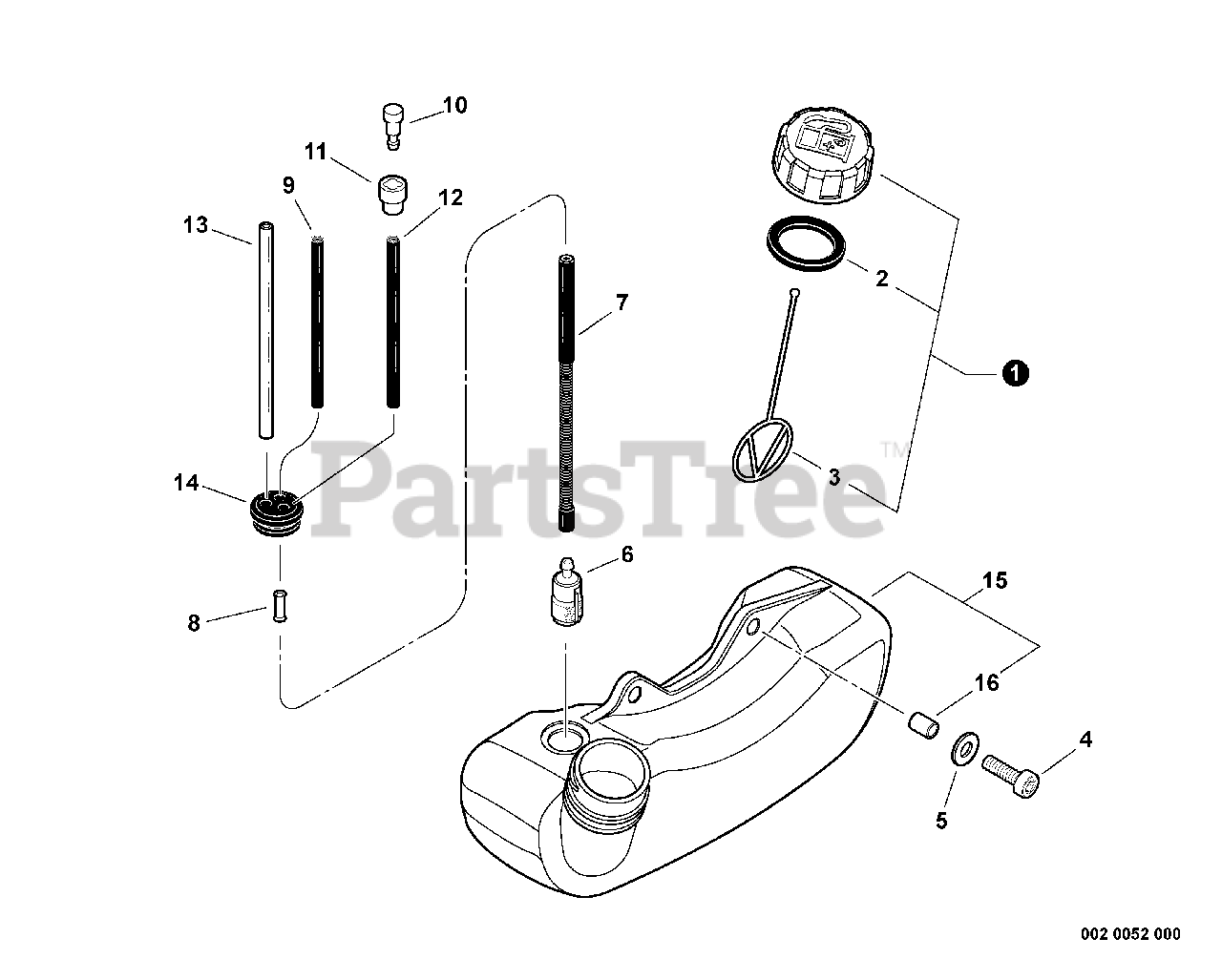

PB-2455 - Echo Handheld Blower (SN: P32720001001 - P32720999999) Fuel System Parts Diagram

Handheld Blower

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

5

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

7

Echo 13201212361

PIPE, FUEL - CORRUGATED
(Superseded to 13201212362)

$3.99

$

In Stock, Qty 20+

0

8

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, Qty 17

0

9

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

10

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

11

Echo 13132840630

COVER, VENT

$6.99

$

In Stock, Qty 17

0

12

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

13

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

14

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

15

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

Note: Includes ITEM 16

$27.99

$

In Stock, only 3 left!

0

16

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 7

0
