PB 250-00 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

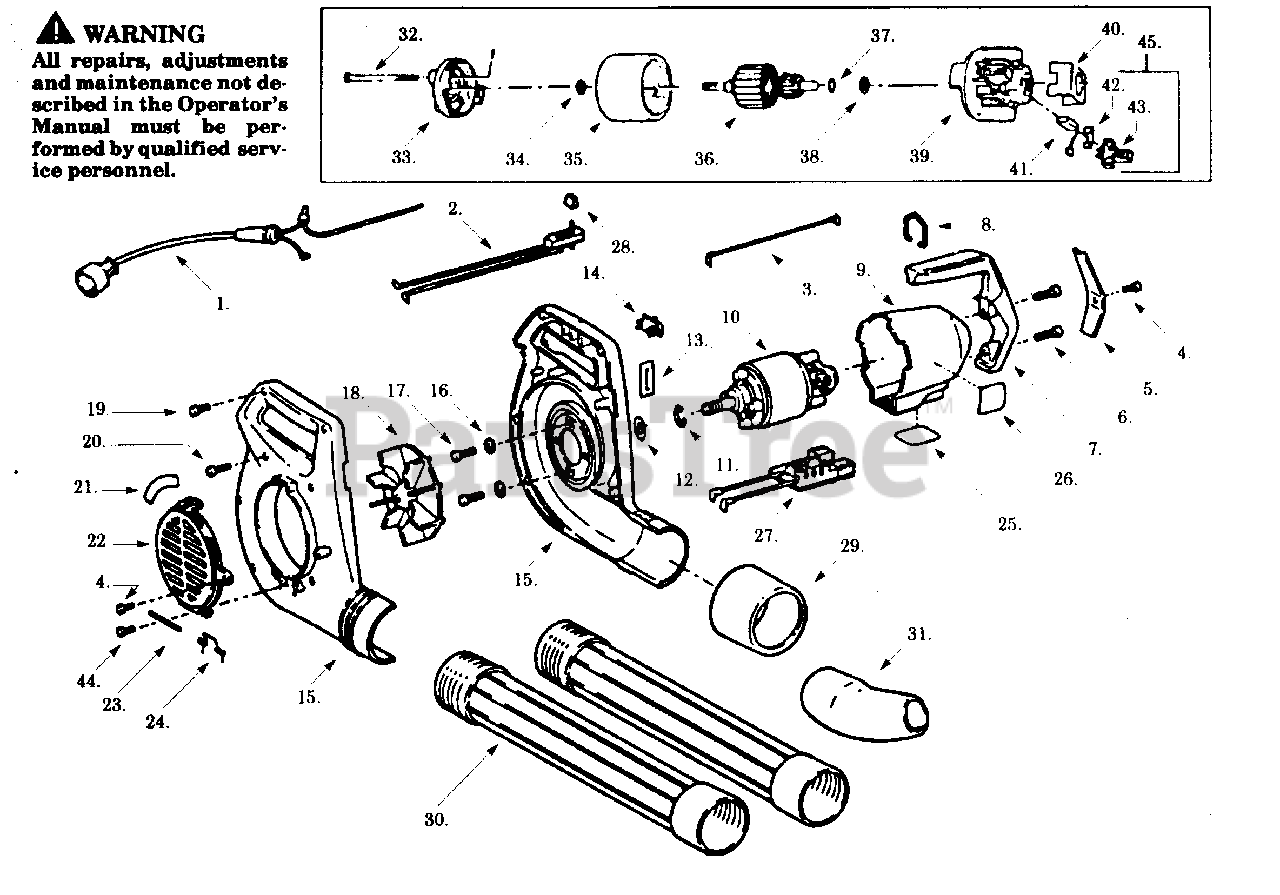

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534434002

Power Cord Ass'y.

$

$

Not available

2

Poulan 534333502

Speed Switch Ass'y.

$

$

Not available

3

Poulan 534433801

Leadwire Ass'y.

$

$

Not available

4

Poulan 534899900

Screw

$

$

Not available

5

Poulan 534404355

Plate

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 534015772

Screw

$

$

Not available

7

Poulan 534319705

Side Handle

$

$

Not available

8

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 534319602

Motor Cover

$14.99

$

Usually ships in 3-10 days

0

10

Poulan 534992001

Motor Ass'y.

$

$

Not available

11

Poulan 534747002

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 534825400

Speed Label

$

$

Not available

14

Poulan 534332506

On/Off Switch

$

$

Not available

15

Poulan 534491702

Housing Set

$34.99

$

Usually ships in 3-10 days

0

16

Poulan 534494604

Washer

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 534398315

Impeller Ass'y.

$

$

Not available

19

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534797200

Label

$

$

Not available

22

Poulan 534543305

Inlet Cover

$

$

Not available

23

Poulan 534327201

Pin Hinge

$4.99

$

In Stock, only 1 left!

0

24

Poulan 534475900

Return Spring

$3.99

$

In Stock, only 1 left!

0

25

Poulan 534100481

Warning Label (Not a serviceable part)

$

$

Not available

26

Poulan 534831900

Motor Cover Label (Not a serviceable part)

$

$

Not available

27

Poulan 534334100

P.C. Board Ass'y.

$54.99

$

Usually ships in 3-10 days

0

28

Poulan 534331805

Knob

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 534408415

Ferrule Sleeve

$

$

Not available

30

Poulan 534352705

Outlet Tube

$

$

Not available

31

Poulan 534373405

Nozzle

$

$

Not available

32

Poulan 534228700

Screw

$

$

Not available

33

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

34

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

36

Poulan 534992401

Armature Ass'y.

$46.99

$

Usually ships in 3-10 days

0

37

Poulan 534228802

Washer

$

$

Not available

38

Poulan 534238903

Washer

$

$

Not available

39

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

40

Poulan 534226000

Insulator

$

$

Not available

41

Poulan 534227800

Brush

$

$

Not available

42

Poulan 534228000

Brush Spring

$

$

Not available

43

Poulan 534227700

Brush Holder

$

$

Not available

44

Poulan 534826801

Screw

$

$

Not available

45

Poulan 534450400

Brush Kit (Incl. 41,42,43)

$

$

Not available

46

Poulan 534886570

Operator Manual

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0
