PB-250 - Echo Handheld Blower (SN: P33112001001 - P33112999999) Engine Cover, Exhaust Parts Diagram

Handheld blower. Dimensions: 230 mm x 330 mm x 345 mm, weight 4.0 kg. Equipped with a 25.4 cc 2-stroke, single-cyl engine (bore 34.0 mm, stroke 28.0 mm). Carburetor diaphragm with primer bulb, flywheel magneto + CCD ignition, NGK BPM8Y spark plug.

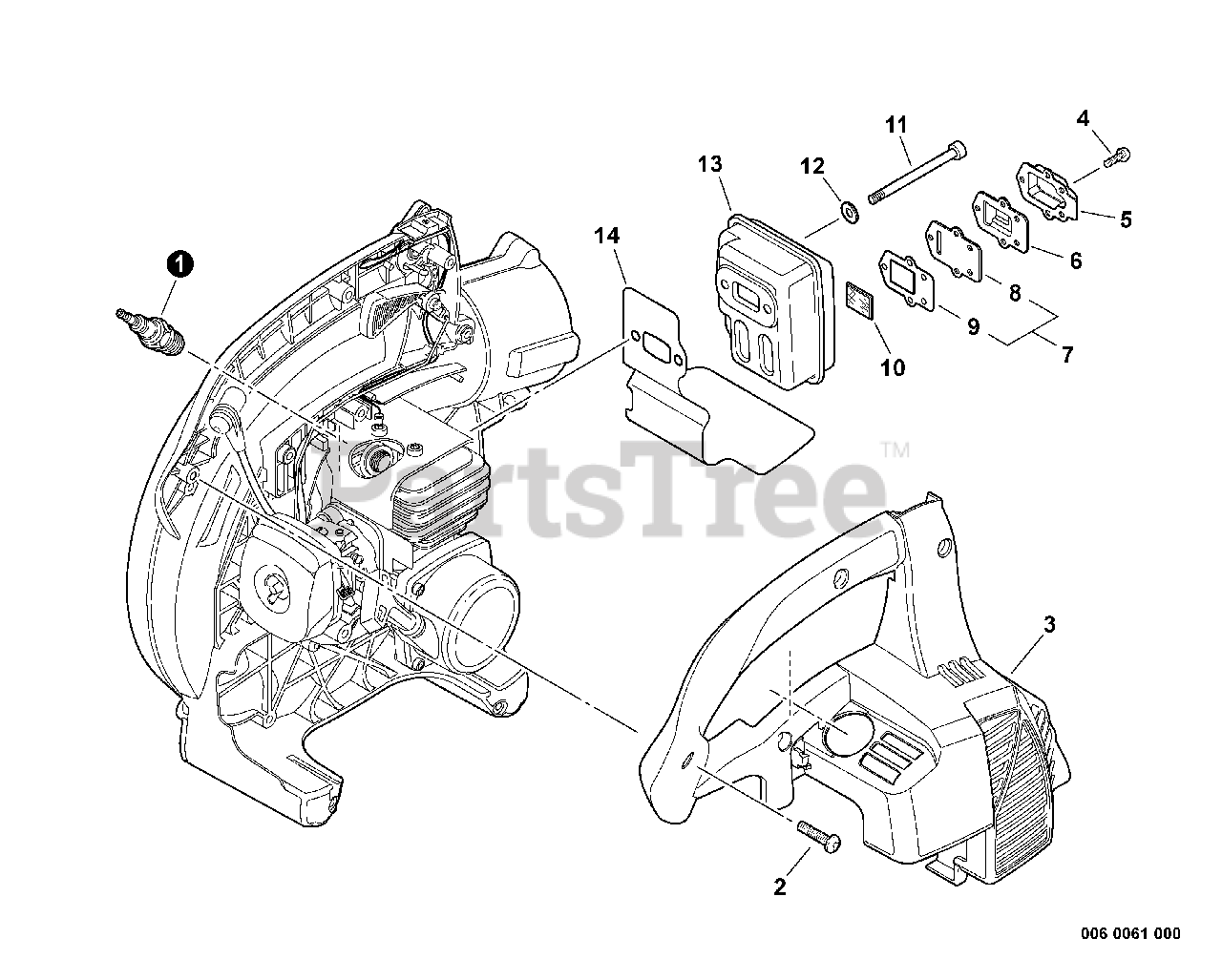

Engine Cover, Exhaust Parts Diagram

  • Title

1

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

1

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

2

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo A190000861

COVER, ENGINE
(Superseded to A190001380)

$15.99

$

In Stock, only 2 left!

0

4

Echo V804000030

BOLT, TORX 4×8

$0.99

$

In Stock, Qty 17

0

5

Echo A313001091

OUTLET, EXHAUST

$1.99

$

In Stock, Qty 11

0

6

Echo A313000840

GUIDE, EXHAUST

$3.99

$

In Stock, Qty 7

0

7

Echo P021016930

GASKET KIT, EXHAUST

Note: Includes ITEMS 8-9

$4.99

$

In Stock, Qty 13

0

8

Echo A313001070

GUIDE, EXHAUST

$3.49

$

In Stock, only 1 left!

0

9

Echo V104000940

GASKET, EXHAUST
(Superseded to V104000941)

$3.99

$

In Stock, Qty 8

0

10

Echo A310000070

SCREEN, SPARK ARRESTER

$2.99

$

In Stock, only 1 left!

0

11

Echo V203000190

BOLT 5

$4.49

$

In Stock, only 1 left!

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo A300000810

MUFFLER
(Superseded to A300000811)

$88.99

$

In Stock, Qty 7

0

14

Echo V104000960

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0
