PB-250 - Echo Handheld Blower (SN: P33112001001 - P33112999999) Engine, Short Block - SB1104 Parts Diagram

Handheld Blower

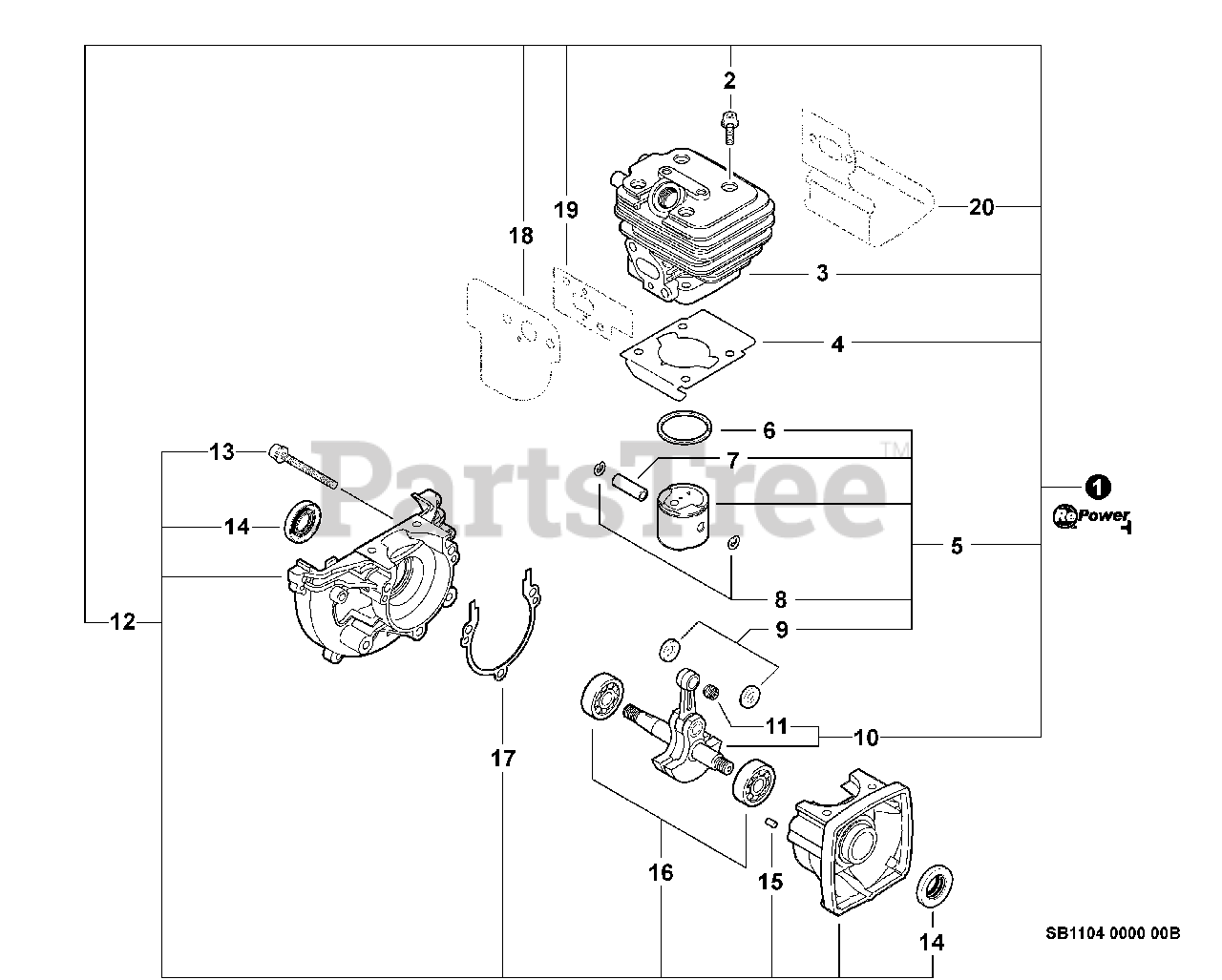

Engine, Short Block - SB1104 Parts Diagram

  • Title

1

Echo SB1104

SHORT BLOCK -- SB1104

Note: Includes ITEMS 2-21

$159.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo A130001020

CYLINDER

$119.99

$

Usually ships in 2-4 days

0

4

Echo V100000190

GASKET, CYLINDER

$2.99

$

In Stock, Qty 20+

0

5

Echo P021017410

PISTON KIT

Note: Includes ITEMS 6-9

$71.99

$

In Stock, only 2 left!

0

6

Echo A101000140

RING, PISTON

$7.99

$

In Stock, only 2 left!

0

7

Echo V606000000

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

10

Echo A011000590

CRANKSHAFT ASSY

Note: Includes ITEM 11

$137.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

12

Echo P021008231

CRANKCASE KIT

Note: Includes ITEMS 13-17

$137.99

$

Usually ships in 2-4 days

0

13

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

14

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

15

Echo 90033040080

PIN - LOCATING

$1.49

$

In Stock, Qty 13

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

17

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

18

------------------

GASKET, INTAKE

$

$

Not available

19

------------------

GASKET, INTAKE

$

$

Not available

20

------------------

SHIELD, EXHAUST

$

$

Not available
