PB-250 - Echo Handheld Blower (SN: P36826001001 - P36826999999) Fuel System Parts Diagram

Handheld blower. Dimensions: 230 mm x 330 mm x 345 mm, weight 4.0 kg. Equipped with a 25.4 cc 2-stroke, single-cyl engine (bore 34.0 mm, stroke 28.0 mm). Carburetor diaphragm with primer bulb, flywheel magneto + CCD ignition, NGK BPM8Y spark plug.

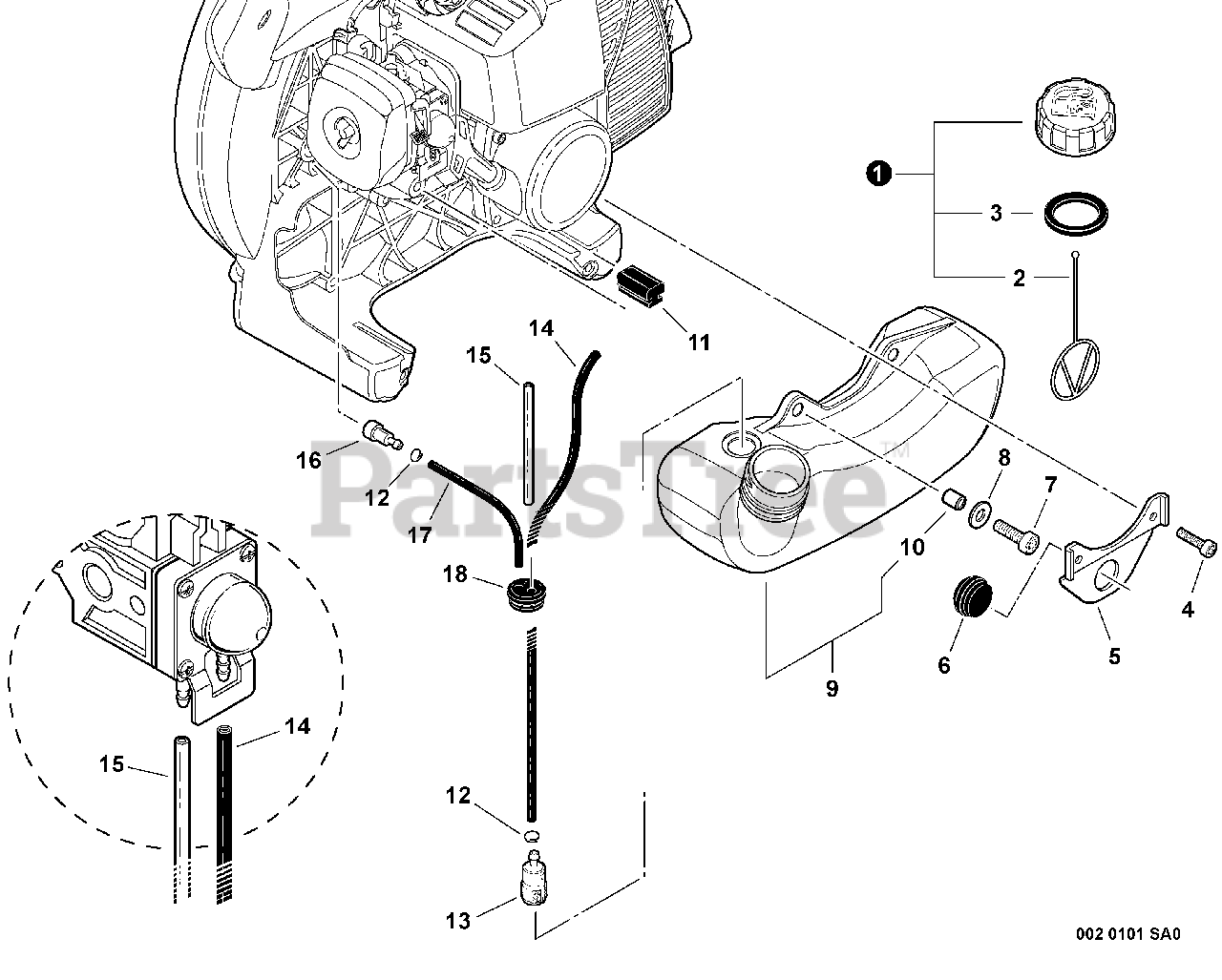

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$7.49

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 13

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

5

Echo V152002220

BRACKET, FUEL TANK

$3.99

$

In Stock, Qty 10

0

6

Echo V420000910

CUSHION

$1.99

$

In Stock, Qty 16

0

7

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

8

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes ITEM 10

$29.99

$

In Stock, only 3 left!

0

10

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

11

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

12

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

13

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

14

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, Qty 20+

0

15

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 5

0

16

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

17

Echo 13201204631

PIPE, FUEL 3×5×80 BLACK

Note: RePower BULK OPTION: 90015

$

$

Not available

18

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0
