PB-250 LN - Echo Handheld Blower (SN: P34913001001 - P34913999999) Fan Case Parts Diagram

Handheld Blower equipped with a magneto-based capacitor-discharge ignition (CDI) system and a flywheel magneto, featuring a 0.65 mm (0.026 in) spark plug gap.

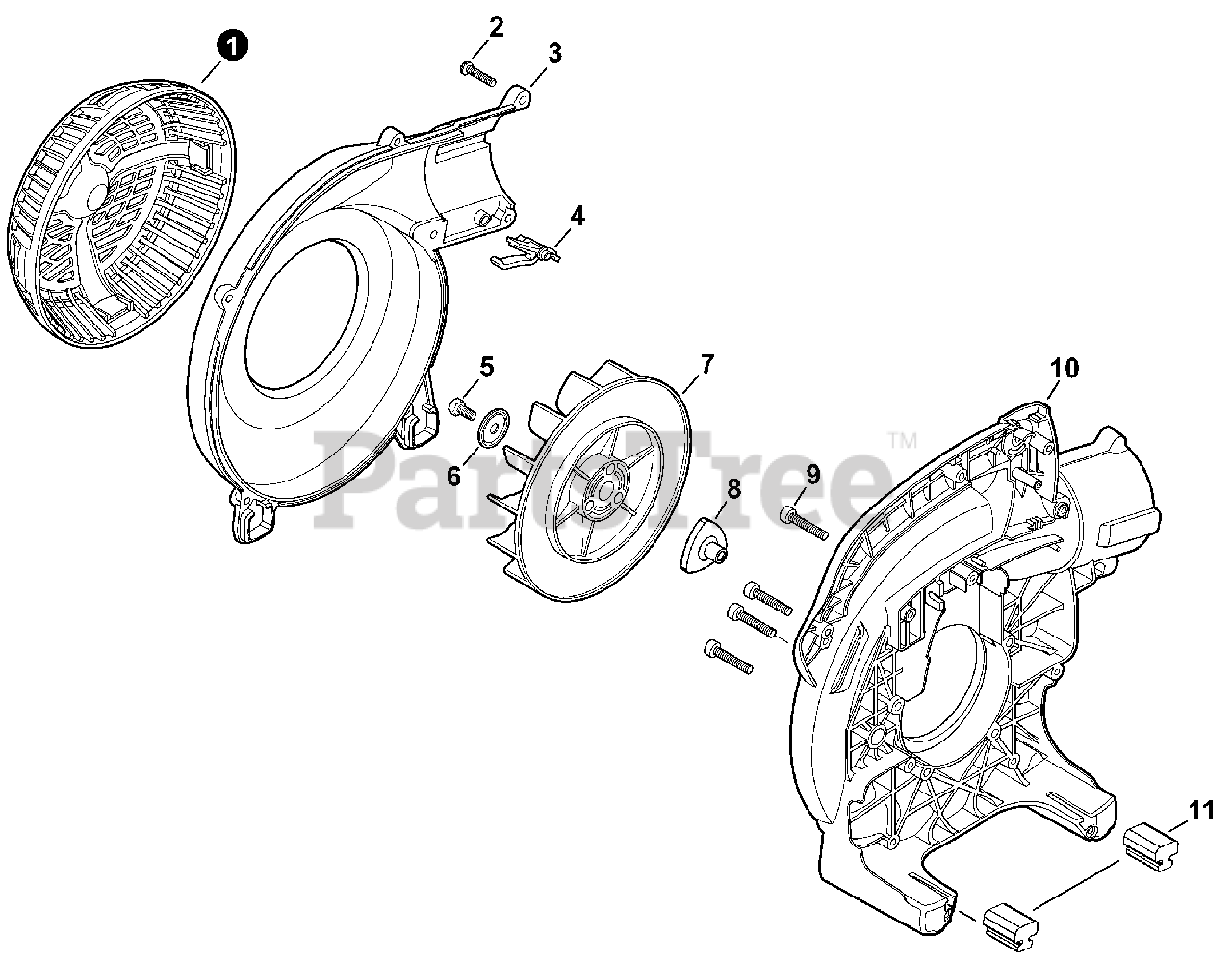

Fan Case Parts Diagram

  • Title

1

Echo E104000110

GUARD, FAN

$15.99

$

In Stock, only 3 left!

0

2

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo E103000700

COVER, FAN

$14.99

$

In Stock, only 2 left!

0

4

Echo C662000050

LOCK, TUBE

$2.99

$

In Stock, only 2 left!

0

5

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

6

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

7

Echo E100000070

FAN, BLOWER

$11.99

$

In Stock, only 2 left!

0

8

Echo E101000122

HUB, FAN

$9.49

$

In Stock, only 3 left!

0

9

Echo V804000070

BOLT, TORX 4×20

$0.99

$

In Stock, Qty 10

0

10

Echo E103000691

CASE, FAN

$90.99

$

Usually ships in 2-4 days

0

11

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0
