PB-250 LN - Echo Handheld Blower (SN: P38211001001 - P38211999999) Fan Cover, Ignition, Throttle Control Parts Diagram

Handheld Blower equipped with a magneto-based capacitor-discharge ignition (CDI) system and a flywheel magneto, featuring a 0.65 mm (0.026 in) spark plug gap.

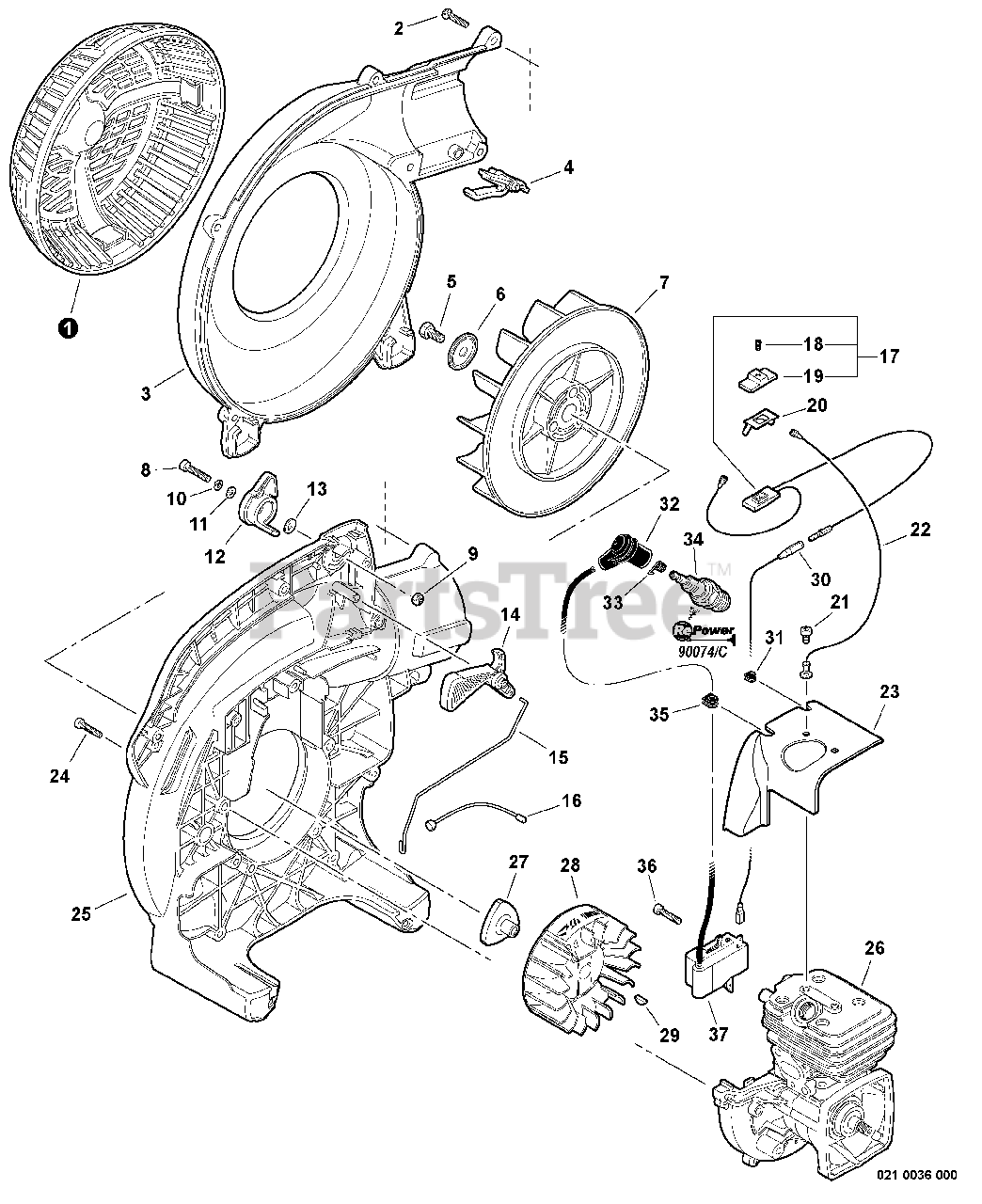

Fan Cover, Ignition, Throttle Control Parts Diagram

  • Title

1

Echo E104000110

GUARD, FAN

$15.99

$

In Stock, only 3 left!

0

2

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo E103000700

COVER, FAN

$14.99

$

In Stock, only 2 left!

0

4

Echo C662000050

LOCK, TUBE

$2.99

$

In Stock, only 2 left!

0

5

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

6

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

7

Echo E100000070

FAN, BLOWER

$11.99

$

In Stock, only 2 left!

0

8

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

9

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 19

0

10

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

11

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

12

Echo C453000300

CONTROL, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

13

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo C450000720

TRIGGER, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo C454000480

ROD, THROTTLE

$4.99

$

In Stock, only 2 left!

0

16

Echo V431000000

CABLE, THROTTLE

$1.99

$

In Stock, Qty 20+

0

17

Echo A440001310

SWITCH ASSY, ON-OFF
(Superseded to P021045250)

Note: Includes ITEMS 18-19

$11.99

$

In Stock, only 1 left!

0

18

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

19

Echo A444000060

KNOB, SWITCH

$4.49

$

In Stock, only 2 left!

0

20

Echo V486000150

TERMINAL, LEAD

$1.49

$

In Stock, Qty 5

0

21

Echo V805000120

BOLT, TORX 5×8

$0.99

$

In Stock, only 1 left!

0

22

Echo V485001210

LEAD L= 210 MM

$1.99

$

Usually ships in 2-4 days

0

23

Echo A160001260

SHIELD, CYLINDER

$4.99

$

Usually ships in 2-4 days

0

24

Echo V804000070

BOLT, TORX 4×20

$0.99

$

In Stock, Qty 10

0

25

Echo E103000691

CASE, FAN

$90.99

$

Usually ships in 2-4 days

0

26

Echo SB1104

SHORT BLOCK

$159.99

$

Usually ships in 2-4 days

0

27

Echo E101000122

HUB, FAN

$9.49

$

In Stock, only 3 left!

0

28

Echo A409001250

FLYWHEEL

$25.99

$

In Stock, only 2 left!

0

29

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

30

Echo V485001220

LEAD L= 85 MM

$1.99

$

In Stock, only 4 left!

0

31

Echo 15211505530

GROMMET

$0.99

$

In Stock, Qty 7

0

32

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

33

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

34

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

34

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

35

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

36

Echo V804000070

BOLT, TORX 4×20

$0.99

$

In Stock, Qty 10

0

37

Echo A411000500

COIL, IGNITION
(Superseded to A411000501)

$85.99

$

In Stock, Qty 7

0

38

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 18

0

38

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 18

0
