PB-250 LN - Echo Handheld Blower (SN: P39926001001 - P39926999999) Engine Cover, Exhaust Parts Diagram

Handheld Blower equipped with a magneto-based capacitor-discharge ignition (CDI) system and a flywheel magneto, featuring a 0.65 mm (0.026 in) spark plug gap.

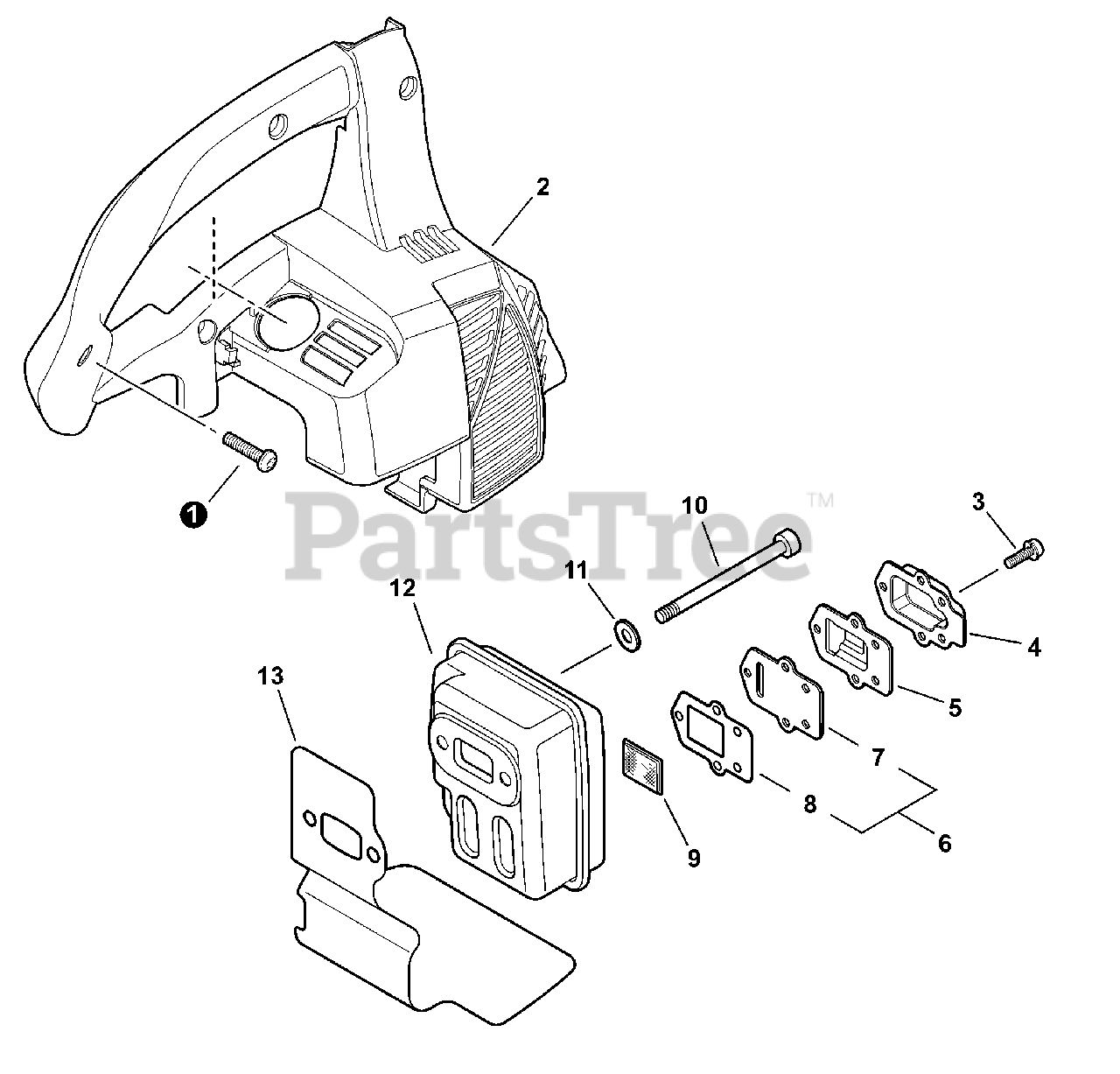

Engine Cover, Exhaust Parts Diagram

  • Title

1

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo A190001380

COVER, ENGINE
(Superseded to P021049230)

$15.99

$

In Stock, only 2 left!

0

3

Echo V804000030

BOLT, TORX 4×8

$0.99

$

In Stock, Qty 17

0

4

Echo A313001091

OUTLET, EXHAUST

$1.99

$

In Stock, Qty 11

0

5

Echo A313000840

GUIDE, EXHAUST

$3.99

$

In Stock, Qty 7

0

6

Echo P021016930

GASKET KIT, EXHAUST

Note: Includes Items 7-8

$4.99

$

In Stock, Qty 13

0

7

Echo A313001070

GUIDE, EXHAUST

$3.49

$

In Stock, only 1 left!

0

8

Echo V104000941

GASKET, EXHAUST

$3.99

$

In Stock, Qty 8

0

9

Echo A310000070

SCREEN, SPARK ARRESTER

$2.99

$

In Stock, only 1 left!

0

10

Echo V203000190

BOLT 5

$4.49

$

In Stock, only 1 left!

0

11

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo A300000811

MUFFLER

$88.99

$

In Stock, Qty 7

0

13

Echo V104000960

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0
