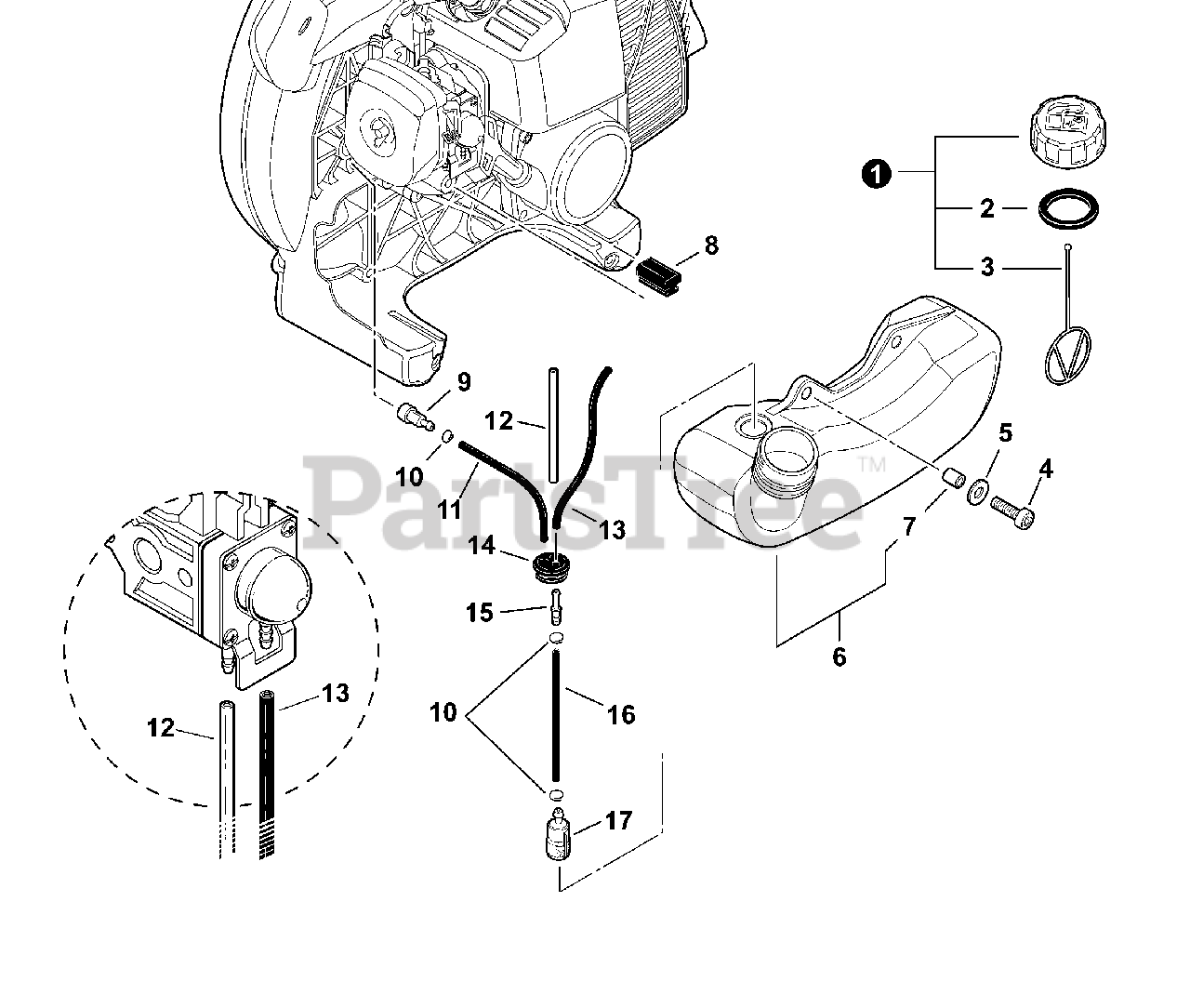

PB-250 LN - Echo Handheld Blower (SN: P39926001001 - P39926999999) Fuel System Parts Diagram

Handheld Blower

Fuel System Parts Diagram

  • Title

1

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

3

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

4

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Item 7

$29.99

$

In Stock, only 2 left!

0

7

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

8

Echo 35133520560

CUSHION

$7.49

$

In Stock, only 2 left!

0

9

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

11

Echo 13201204631

PIPE, FUEL 3×5×80 BLACK
(Superseded to 13201204632)

$4.99

$

In Stock, Qty 12

0

12

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.99

$

In Stock, Qty 20+

0

13

Echo V471003590

PIPE, FUEL 3×5×78 BLACK
(Superseded to V471005630)

$3.99

$

In Stock, only 3 left!

0

14

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

15

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 18

0

16

Echo V471003700

PIPE, FUEL 3×5×130 BLACK
(Superseded to V471003701)

$1.49

$

In Stock, only 1 left!

0

17

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0
