PB-250 LN - Echo Handheld Blower (SN: P40313001001 - P40313999999) Engine Parts Diagram

Handheld Blower

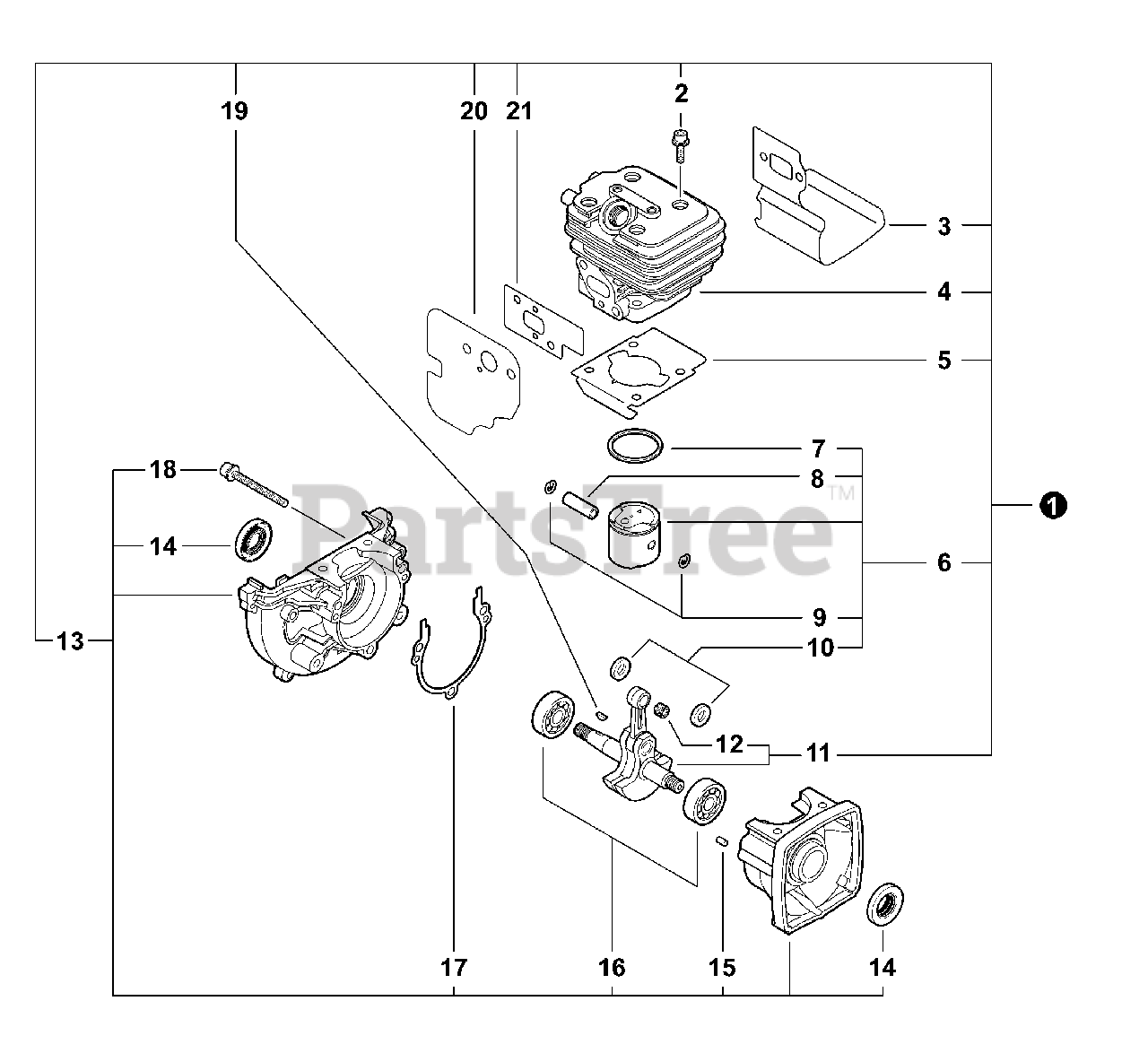

Engine Parts Diagram

  • Title

1

Echo SB1104

SHORT BLOCK

Note: Includes Items 2-21

$159.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo V104000960

SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0

4

Echo A130001020

CYLINDER

$119.99

$

Usually ships in 2-4 days

0

5

Echo V100000190

GASKET, CYLINDER

$2.99

$

In Stock, Qty 20+

0

6

Echo P021017410

PISTON KIT

Note: Includes Items 7-10

$71.99

$

In Stock, only 2 left!

0

7

Echo A101000140

RING, PISTON

$7.99

$

In Stock, only 2 left!

0

8

Echo V606000000

PIN, PISTON

$7.99

$

In Stock, only 2 left!

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

11

Echo A011000590

CRANKSHAFT ASSY

Note: Includes Item 12

$137.99

$

Usually ships in 2-4 days

0

12

Echo V553000010

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 2 left!

0

13

Echo P021008231

CRANKCASE KIT

Note: Includes Items 14-18

$137.99

$

Usually ships in 2-4 days

0

14

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

15

Echo 90033040080

PIN, LOCATING

$1.49

$

In Stock, Qty 15

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

17

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

18

Echo 90016205028

SCREW - 5×28

$2.49

$

In Stock, Qty 11

0

19

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 8

0

20

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 13

0

21

Echo V103000540

GASKET, INTAKE

$1.49

$

In Stock, only 4 left!

0
