PB-250 LN - Echo Handheld Blower (SN: P40313001001 - P40313999999) Ignition Parts Diagram

Handheld Blower equipped with a magneto-based capacitor-discharge ignition (CDI) system and a flywheel magneto, featuring a 0.65 mm (0.026 in) spark plug gap.

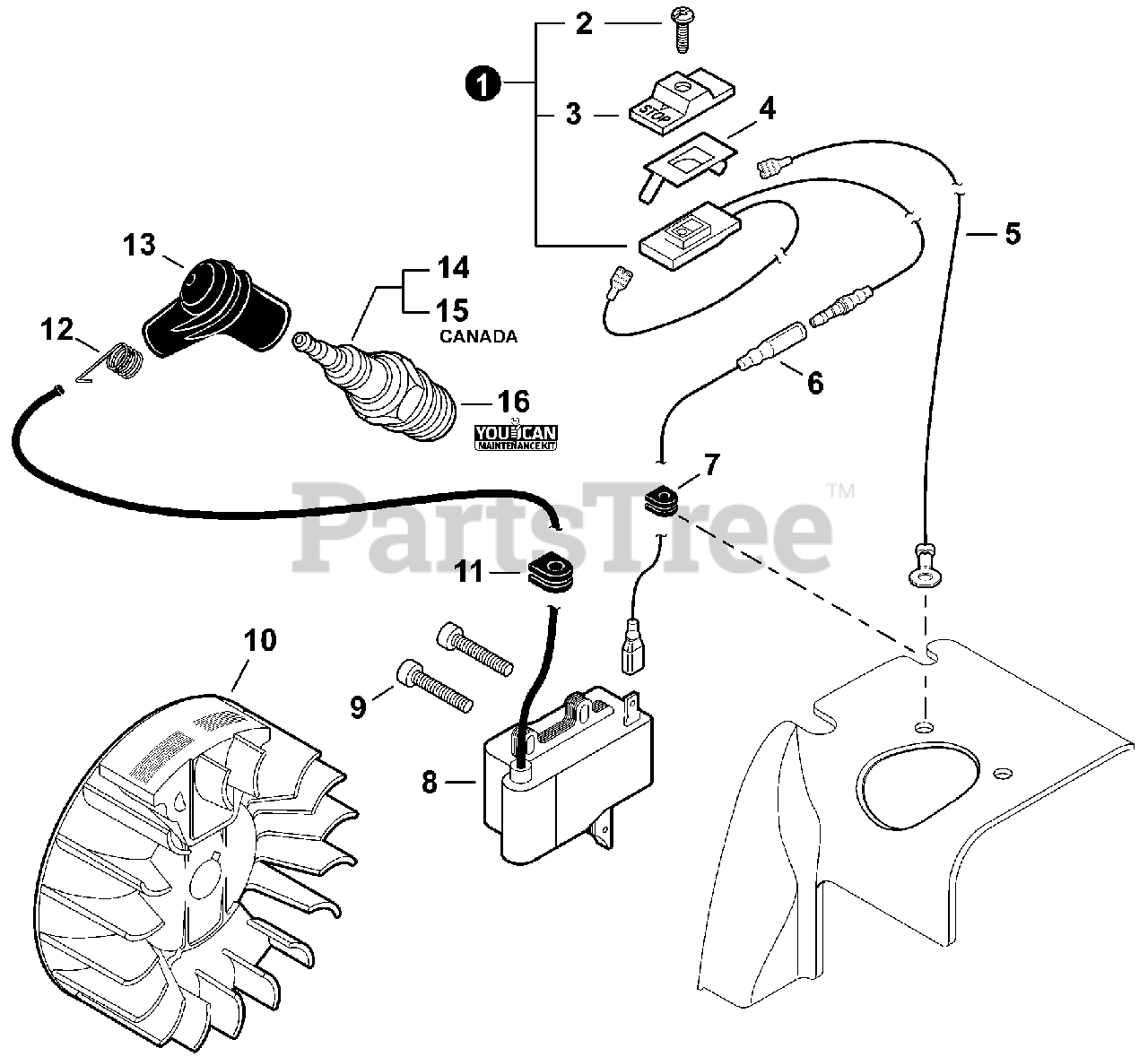

Ignition Parts Diagram

  • Title

1

Echo P021045250

SWITCH ASSY, ON-OFF

Note: Includes Items 2-3

$11.99

$

In Stock, only 1 left!

0

2

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

3

Echo A444000060

KNOB, SWITCH

$4.49

$

In Stock, only 2 left!

0

4

Echo V486000150

TERMINAL, LEAD

$1.49

$

In Stock, Qty 5

0

5

Echo V485001210

LEAD L= 210 MM

$1.99

$

Usually ships in 2-4 days

0

6

Echo V485001220

LEAD L= 85 MM

$1.99

$

In Stock, only 4 left!

0

7

Echo 15211505530

GROMMET

$0.99

$

In Stock, Qty 7

0

8

Echo A411000501

COIL, IGNITION
(Superseded to A411000502)

$85.99

$

In Stock, Qty 7

0

9

Echo V804000070

BOLT, TORX 4×20

$0.99

$

In Stock, Qty 10

0

10

Echo A409001250

FLYWHEEL

$25.99

$

In Stock, only 2 left!

0

11

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

12

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

13

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

14

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

15

Echo A425000000

SPARK PLUG - BPMR8Y

Note: CANADA Included In TUNE-UP KIT

$3.99

$

In Stock, Qty 20+

0

16

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, Qty 18

0
