PB-250 LN - Echo Handheld Blower (SN: P42814001001 - P42814999999) Intake Parts Diagram

Handheld Blower equipped with a magneto-based capacitor-discharge ignition (CDI) system and a flywheel magneto, featuring a 0.65 mm (0.026 in) spark plug gap.

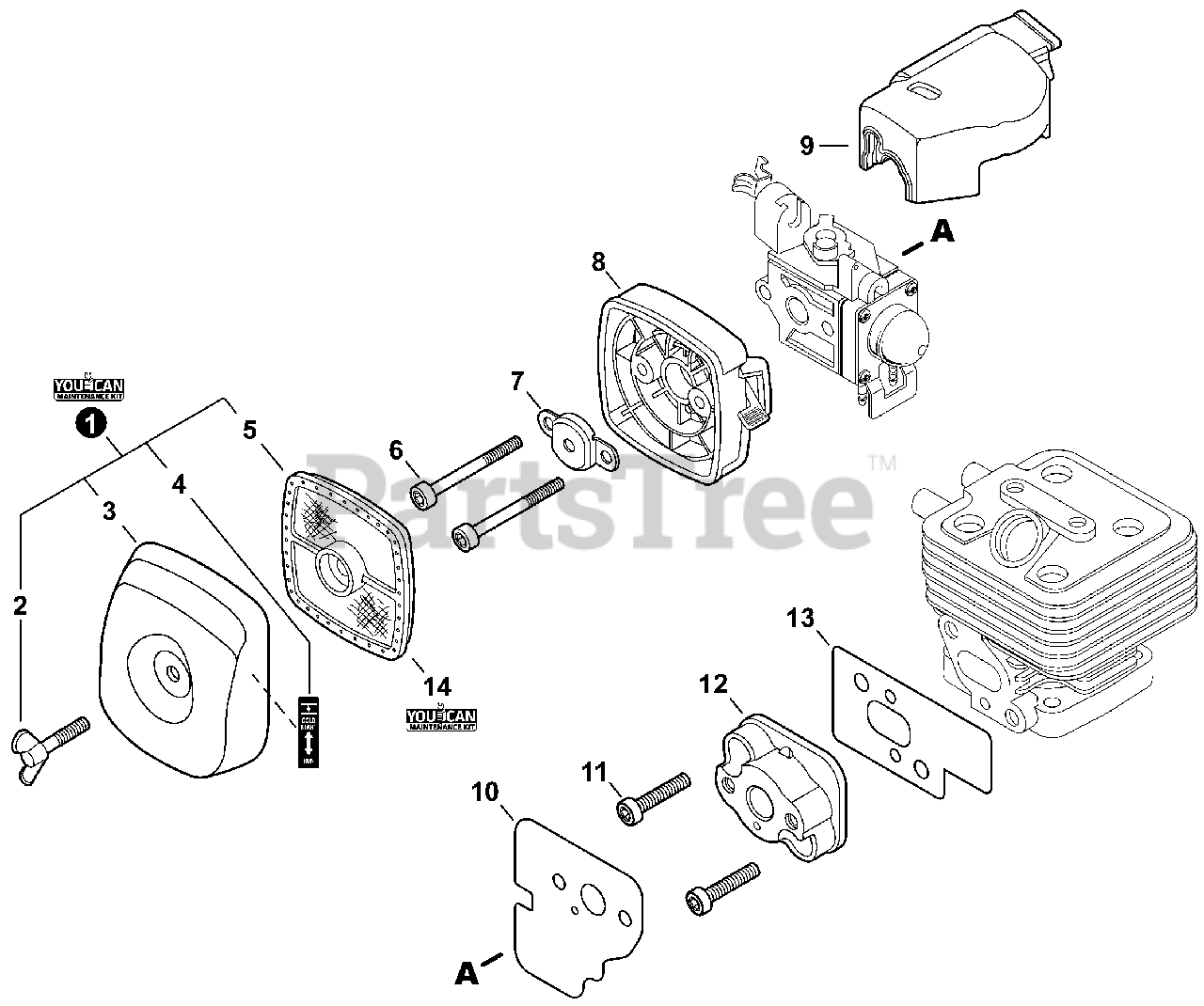

Intake Parts Diagram

  • Title

1

Echo 90112Y

FILTER KIT, AIR - YOUCANT

Note: Includes ITEMS 2-5 See Maintenance Kits

$18.99

$

Usually ships in 2-4 days

0

2

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

4

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 20+

0

5

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included In TUNE-UP KIT

$8.99

$

In Stock, Qty 20+

0

6

Echo V805000100

BOLT, TORX 5×65

$1.99

$

In Stock, Qty 20+

0

7

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 20+

0

8

Echo P021049750

CASE, AIR FILTER

$11.99

$

In Stock, Qty 20+

0

9

Echo A127000440

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

10

Echo V103000400

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

11

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

12

Echo A200000960

INSULATOR, INTAKE

$13.99

$

In Stock, only 2 left!

0

13

Echo V103000540

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

14

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, Qty 20+

0
