PB-251 - Echo Handheld Blower (SN: 09001001 - 09999999) Fuel System Parts Diagram

Handheld blower, 330 mm x 265 mm x 360 mm (L x W x H), 4.1 kg dry weight. Powered by a 25.4 cc, air-cooled, 2-stroke single-cylinder gasoline engine (34 mm bore, 28 mm stroke) with a diaphragm carburetor (RB-K85) and flywheel magnet ignition.

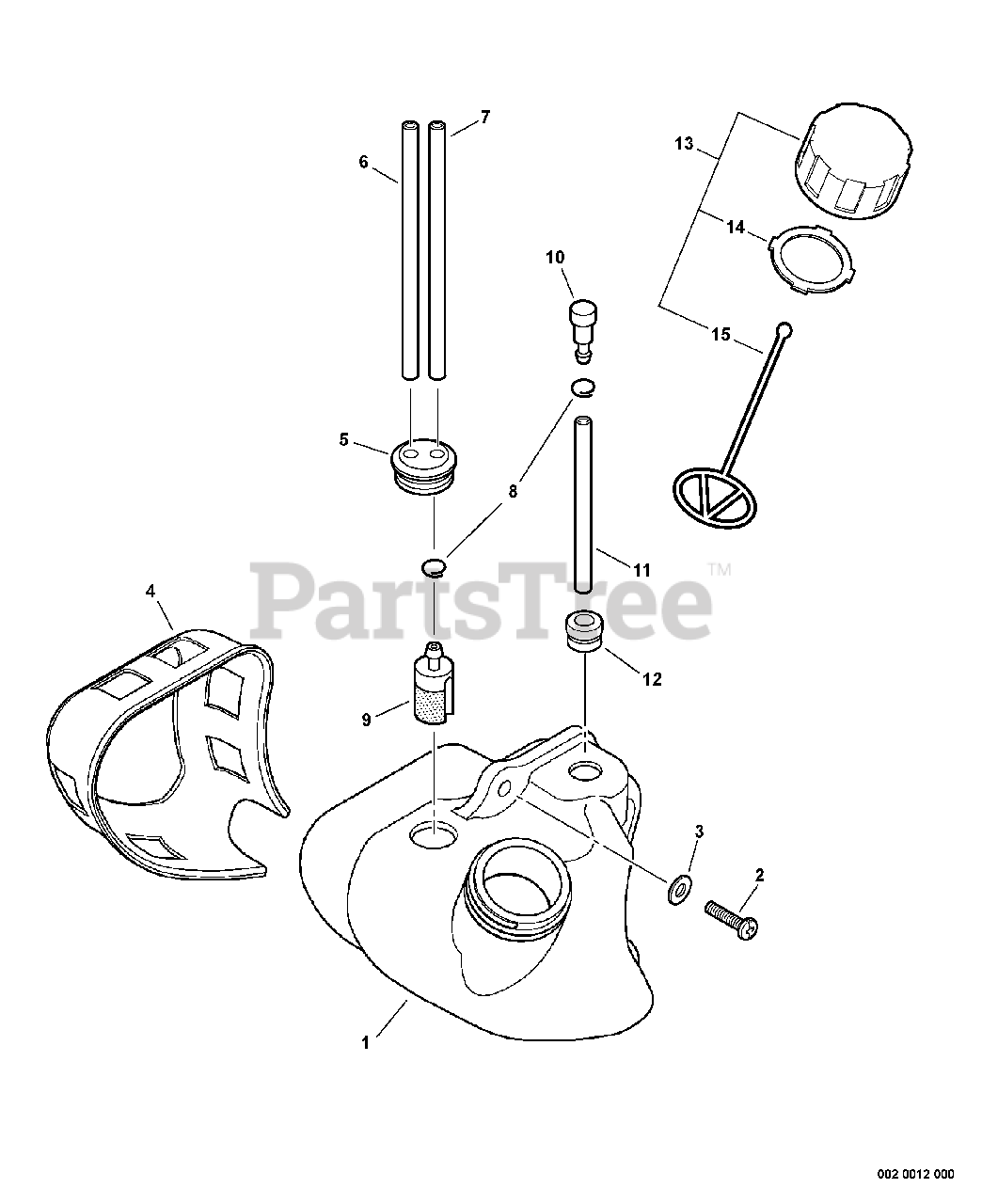

Fuel System Parts Diagram

  • Title

1

Echo A350000510

TANK, FUEL
(Superseded to A350000550)

$35.99

$

In Stock, only 1 left!

0

2

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

3

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo V420001430

GUARD, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

5

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 7

0

7

Echo V471001860

PIPE, FUEL 3×5×175 BLACK

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 9

0

8

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 6

0

9

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

10

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

11

Echo V471001220

PIPE, FUEL VENT 3×5×50

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

12

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

13

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 14-15

$7.49

$

In Stock, Qty 8

0

14

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0
