PB-251 - Echo Handheld Blower (SN: 09001001 - 09999999) Intake Parts Diagram

Handheld blower, 330 mm x 265 mm x 360 mm (L x W x H), 4.1 kg dry weight. Powered by a 25.4 cc, air-cooled, 2-stroke single-cylinder gasoline engine (34 mm bore, 28 mm stroke) with a diaphragm carburetor (RB-K85) and flywheel magnet ignition.

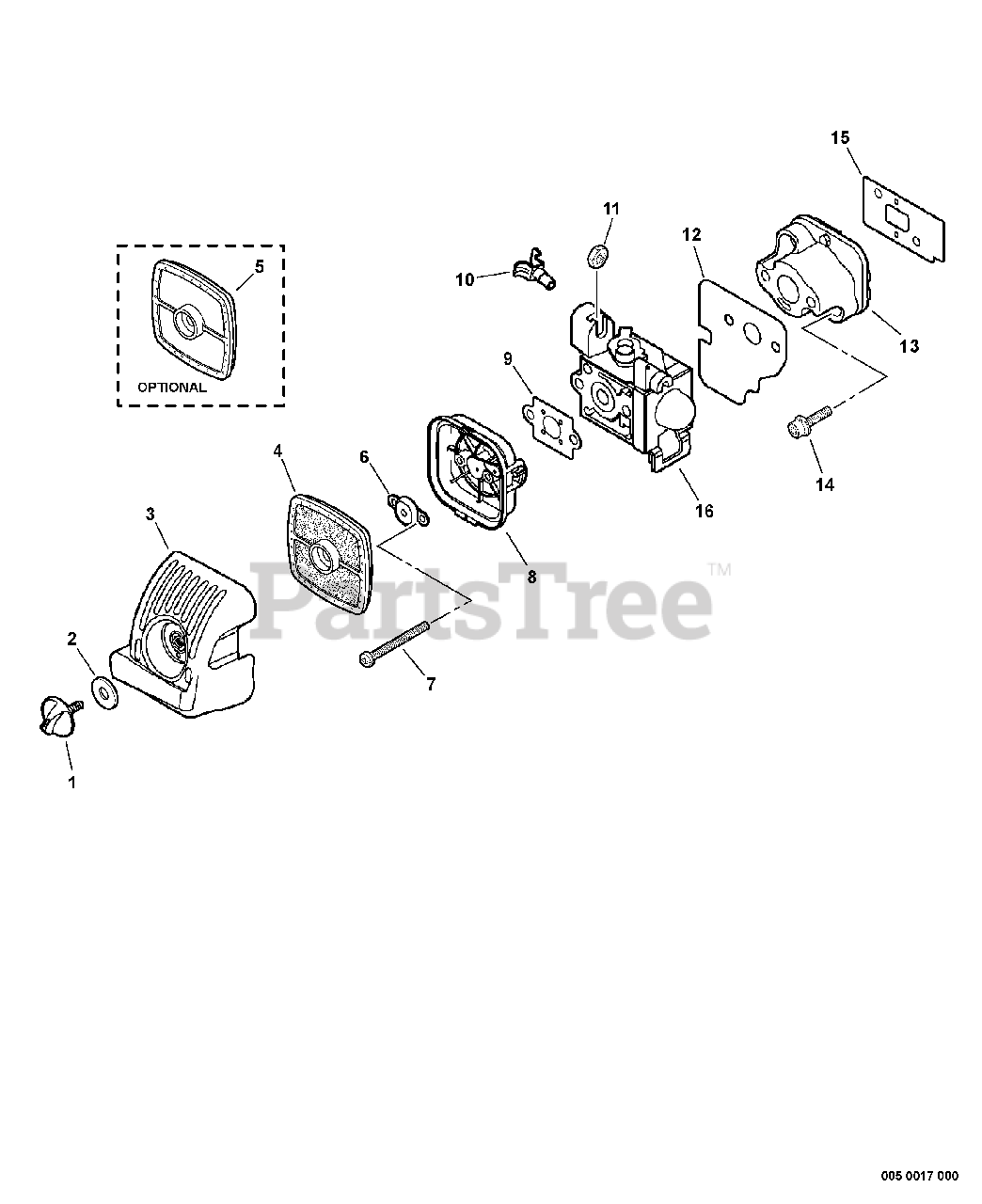

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, only 4 left!

0

2

Echo 13191103460

WASHER 5.5×16×0.8

$0.99

$

In Stock, Qty 9

0

3

Echo A232000340

COVER, AIR FILTER

$7.49

$

In Stock, only 2 left!

0

4

Echo A226000471

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000472)

Note: Included In RePower KIT

$10.99

$

In Stock, Qty 20+

0

5

Echo A226000350

FILTER, AIR - SINGLE LAYER
(Superseded to A226000351)

Note: OPTIONAL

$10.99

$

In Stock, Qty 20+

0

6

Echo A244000070

PLATE, PREVENT

$5.99

$

In Stock, Qty 20+

0

7

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

8

Echo P021010980

CASE ASSY, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

9

Echo 130016-42031

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

10

Echo C480000070

GUIDE, CABLE

$19.99

$

Usually ships in 2-4 days

0

11

Echo V264000050

NUT - 6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V103000400

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

13

Echo A200000280

INSULATOR, INTAKE

$9.99

$

In Stock, only 2 left!

0

14

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V103000390

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, only 3 left!

0

16

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
