PB-2520 - Echo Handheld Blower (SN: P46814001001 - P46814999999) Engine Cover, Throttle Control Parts Diagram

25.4 cc two-stroke engine; 453 CFM at 170 mph; 15.8 N blowing force; 18.6 fl oz fuel tank; 8.6 lb dry weight; double-grid intake; rotary carburetor; 70 dB(A) noise.

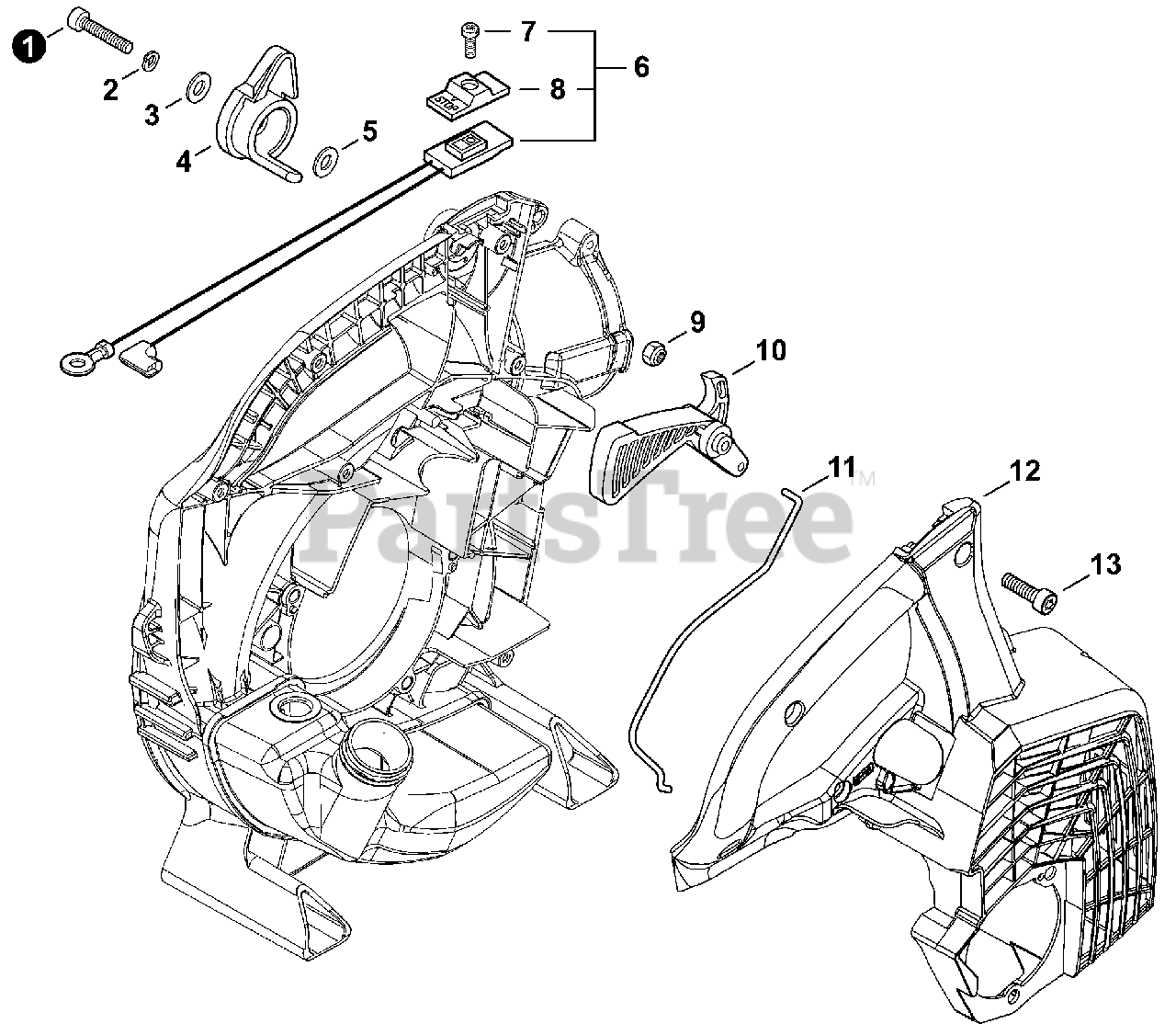

Engine Cover, Throttle Control Parts Diagram

  • Title

1

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

2

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

3

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo C453000300

CONTROL, THROTTLE

$1.99

$

In Stock, only 1 left!

0

5

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo P100003830

SWITCH, ON-OFF

Note: Includes items 7-8

$10.99

$

In Stock, only 2 left!

0

7

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

8

Echo A444000060

KNOB, SWITCH

$4.49

$

In Stock, only 2 left!

0

9

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 19

0

10

Echo C450000721

TRIGGER, THROTTLE

$1.99

$

In Stock, Qty 8

0

11

Echo C454000580

ROD, THROTTLE

$4.49

$

In Stock, only 1 left!

0

12

Echo A190001620

COVER, ENGINE
(Superseded to A190001621)

$35.99

$

Usually ships in 2-4 days

0

13

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0
