PB-2520 - Echo Handheld Blower (SN: P46814001001 - P46814999999) Starter Parts Diagram

25.4 cc two-stroke engine; 453 CFM at 170 mph; 15.8 N blowing force; 18.6 fl oz fuel tank; 8.6 lb dry weight; double-grid intake; rotary carburetor; 70 dB(A) noise.

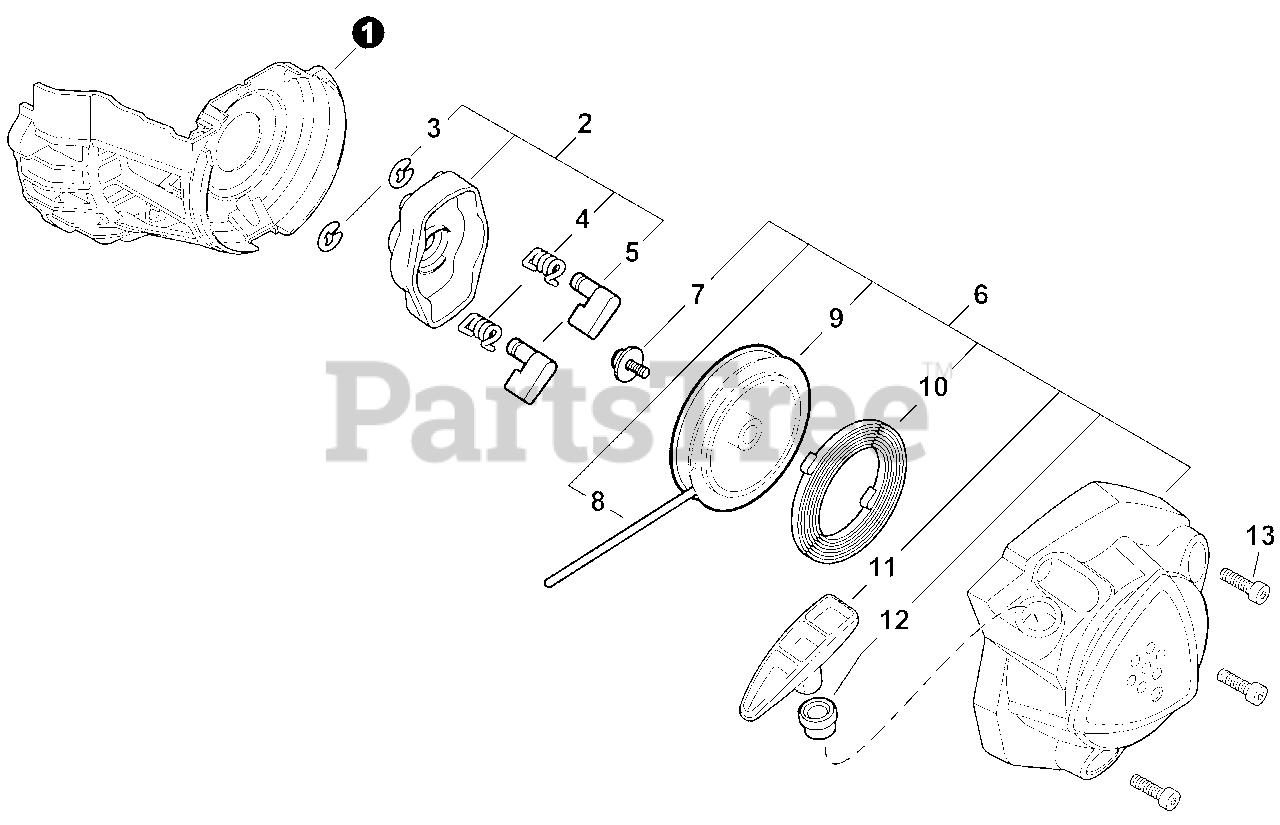

Starter Parts Diagram

  • Title

1

Echo A127000510

SHIELD, DEBRIS

$6.49

$

Usually ships in 2-4 days

0

2

Echo A052000030

PAWL ASSY, STARTER

Note: Includes items 3-5

$15.99

$

In Stock, Qty 15

0

3

Echo P022002100

E-RING 4

$0.99

$

In Stock, only 3 left!

0

4

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 4 left!

0

5

Echo A514000120

PAWL, STARTER
(Superseded to P022003120)

$3.49

$

In Stock, Qty 20+

0

6

Echo A051003310

STARTER ASSY

Note: Includes items 7-12

$59.99

$

In Stock, only 3 left!

0

7

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

8

Echo P022049010

ROPE, STARTER

$9.49

$

Usually ships in 2-4 days

0

9

Echo P022049000

REEL, ROPE

$9.99

$

In Stock, only 2 left!

0

10

Echo P022019680

SPRING, RECOIL

$11.99

$

In Stock, Qty 9

0

11

Echo P022036700

GRIP, STARTER

$11.99

$

In Stock, only 2 left!

0

12

Echo P022045770

GUIDE, ROPE

$4.49

$

In Stock, Qty 5

0

13

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
