PB-2520 - Echo Handheld Blower (SN: P54826001001 - P54826999999) Carburetor Parts Diagram

Handheld Blower

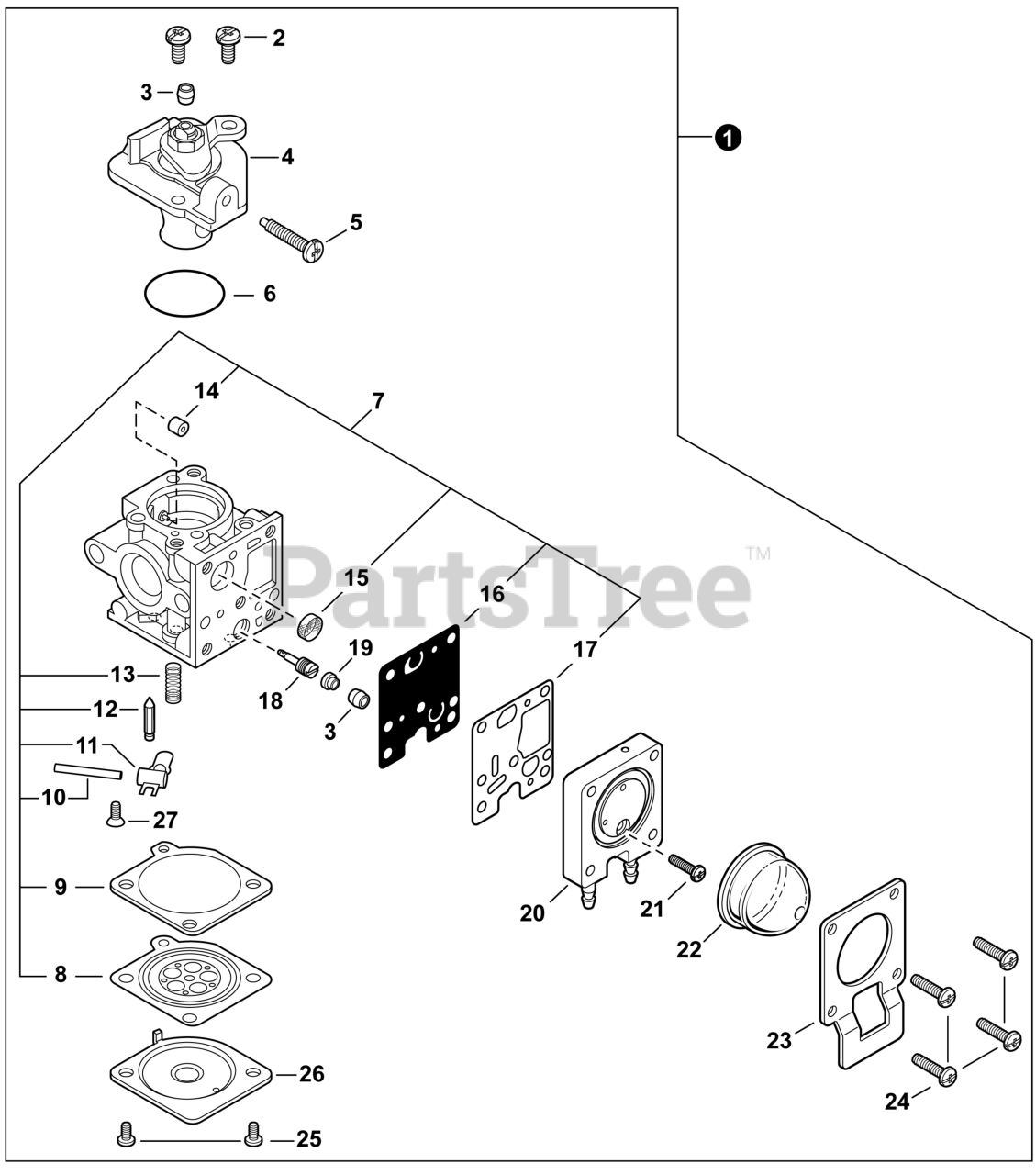

Carburetor Parts Diagram

  • Title

1

Echo A021004700

CARBURETOR - Z011/37C

Note: Includes items 2-27

$43.99

$

In Stock, Qty 20+

0

2

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

3

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

4

Echo P005004040

COVER ASSY, ROTOR

$29.99

$

Usually ships in 2-4 days

0

6

Echo P005004260

O-RING

$6.99

$

Usually ships in 2-4 days

0

7

Echo P005003750

REPAIR KIT, CARBURETOR

Note: Includes items 8-17

$16.99

$

In Stock, Qty 18

0

8

Echo P005003760

DIAPHRAGM, METERING

$18.99

$

Usually ships in 2-4 days

0

9

Echo P005000200

GASKET, METERING DIAPHRAGM

$2.99

$

In Stock, only 2 left!

0

10

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

11

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

12

Echo P005004030

VALVE, INLET NEEDLE

$8.99

$

Usually ships in 2-4 days

0

13

Echo P005000940

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

14

Echo P005001000

GUIDE, ROLLER

$1.99

$

In Stock, only 4 left!

0

15

Echo P005000010

SCREEN, FUEL INLET

$0.99

$

Usually ships in 2-4 days

0

16

Echo P005000510

DIAPHRAGM, PUMP

$4.49

$

Usually ships in 2-4 days

0

17

Echo P005000520

GASKET, PUMP

$2.99

$

Usually ships in 2-4 days

0

18

Echo P005004050

NEEDLE, MIXTURE

$9.49

$

Usually ships in 2-4 days

0

19

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

20

Echo P005004240

BODY ASSY, PURGE

$29.99

$

In Stock, only 1 left!

0

21

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

22

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

23

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

24

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

25

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

26

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

27

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0

27

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0
