PB-2520 - Echo Handheld Blower (SN: P54826001001 - P54826999999) Intake Parts Diagram

25.4 cc two-stroke engine; 453 CFM at 170 mph; 15.8 N blowing force; 18.6 fl oz fuel tank; 8.6 lb dry weight; double-grid intake; rotary carburetor; 70 dB(A) noise.

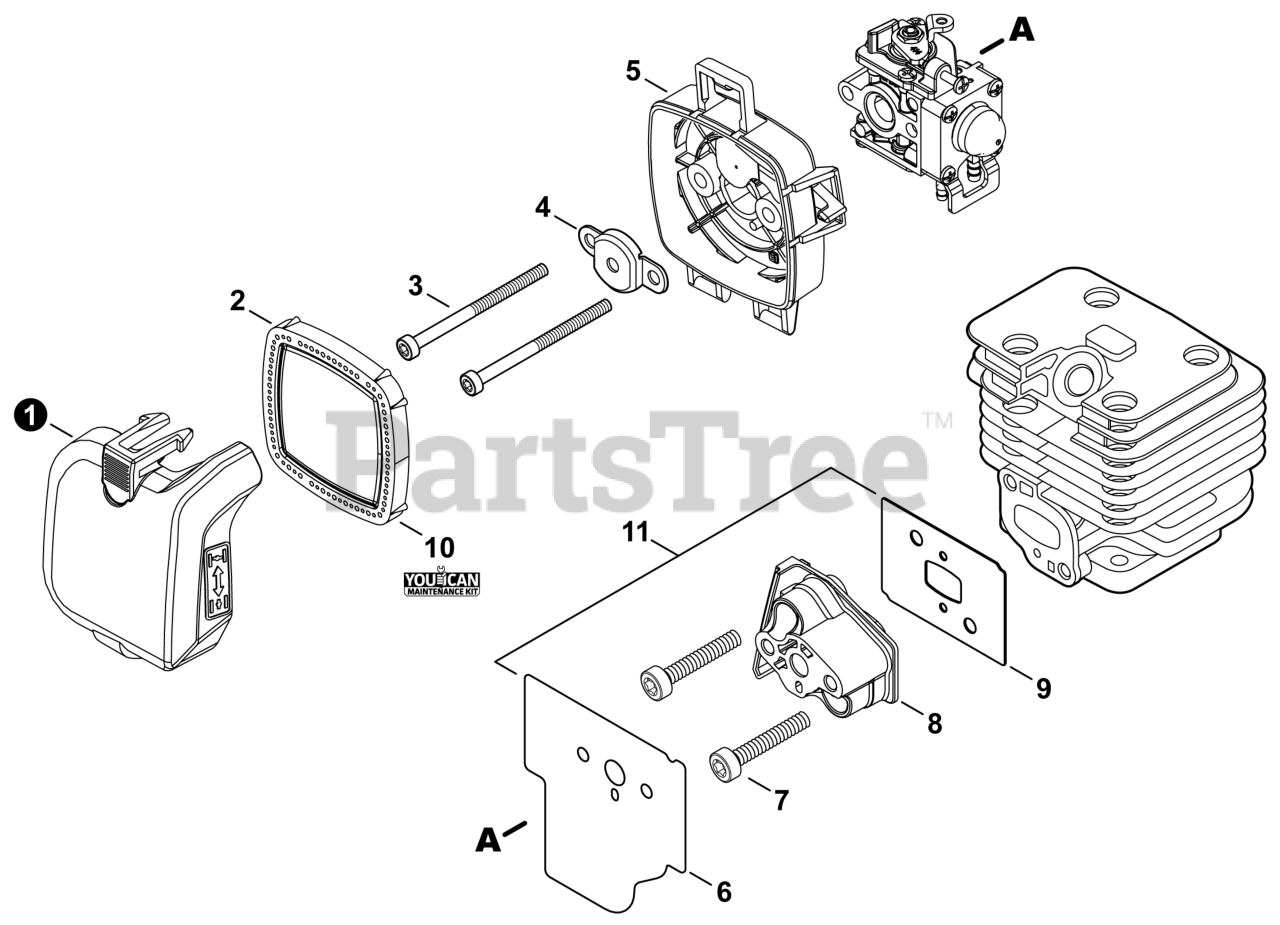

Intake Parts Diagram

  • Title

1

Echo A232001920

COVER, AIR FILTER

$11.99

$

In Stock, Qty 11

0

2

Echo A226002160

FILTER, AIR

$9.49

$

In Stock, Qty 14

0

3

Echo V805000100

BOLT, TORX 5x65

$1.99

$

In Stock, Qty 20+

0

4

Echo A244000330

PLATE, PREVENT

$4.99

$

Usually ships in 2-4 days

0

5

Echo P100003820

CASE, AIR FILTER

$11.99

$

In Stock, Qty 20+

0

6

Echo V103001960

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

7

Echo V805000210

BOLT, TORX 5x20

$1.99

$

In Stock, Qty 20+

0

8

Echo A200001130

INSULATOR, INTAKE

$6.49

$

In Stock, only 2 left!

0

9

Echo V103001950

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

10

Echo 90183Y

TUNE-UP KIT - YOUCANT

$27.99

$

In Stock, Qty 20+

0

11

Echo P021052300

GASKET KIT

$19.99

$

Usually ships in 2-4 days

0
