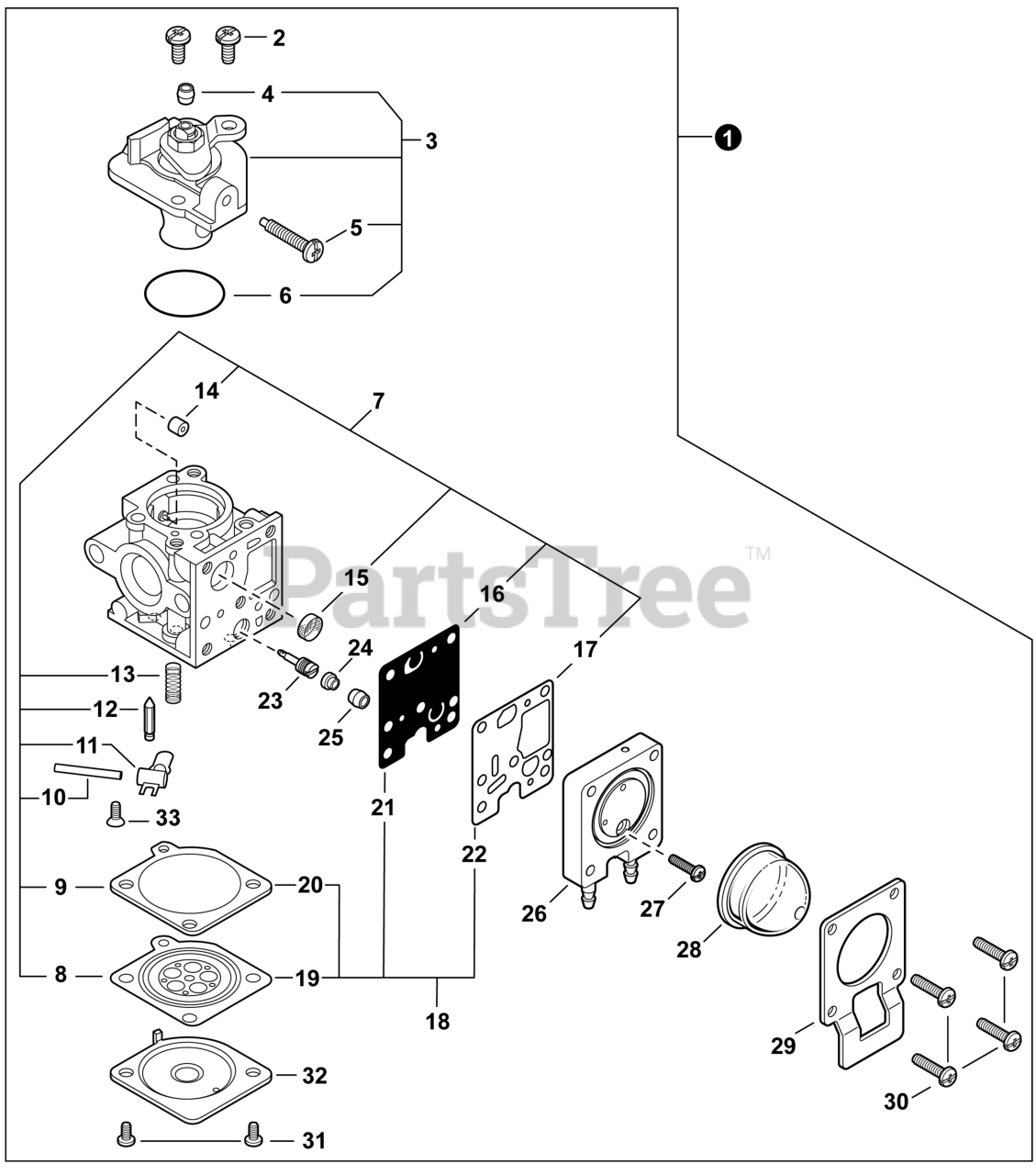

PB-2520 - Echo Handheld Blower (SN: P59612001001 - P59612999999) Carburetor Parts Diagram

Handheld Blower

Carburetor Parts Diagram

  • Title

1

Echo A021005480

CARBURETOR - Z011-0M(A)(B)

Note: Includes items 2-33

$51.99

$

Usually ships in 2-4 days

0

2

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

3

Echo P005004960

COVER ASSY, ROTOR

Note: Includes items 4-6

$

$

Currently unavailable

4

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

5

Echo P005000100

SCREW, IDLE ADJUST

$6.49

$

In Stock, only 2 left!

0

6

Echo P005004260

O-RING

$8.49

$

Usually ships in 2-4 days

0

7

Echo P005004980

REPAIR KIT, CARBURETOR

Note: Includes items 8-17

$32.99

$

Usually ships in 0 days

0

8

DIAPHRAGM, METERING

$

$

Not available

9

GASKET, METERING DIAPHRAGM

$

$

Not available

10

PIN, METERING LEVER

$

$

Not available

11

LEVER, METERING

$

$

Not available

12

VALVE, INLET NEEDLE

$

$

Not available

13

SPRING, METERING LEVER

$

$

Not available

14

GUIDE, ROLLER

$

$

Not available

15

SCREEN, FUEL INLET

$

$

Not available

16

DIAPHRAGM, PUMP

$

$

Not available

17

GASKET, PUMP

$

$

Not available

18

Echo P005004720

GASKET / DIAPHRAGM KIT

Note: Includes items 19-22

$17.99

$

Usually ships in 2-4 days

0

19

DIAPHRAGM, METERING

$

$

Not available

20

GASKET, METERING DIAPHRAGM

$

$

Not available

21

DIAPHRAGM, PUMP

$

$

Not available

22

GASKET, PUMP

$

$

Not available

23

Echo P005004050

NEEDLE, MIXTURE

$11.99

$

Usually ships in 2-4 days

0

24

Echo P005005320

CAP, LIMITER

$4.49

$

Usually ships in 0 days

0

25

Echo P005001270

PLUG

$1.49

$

In Stock, Qty 20+

0

26

Echo P005004240

BODY ASSY, PURGE

$35.99

$

In Stock, only 2 left!

0

27

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

28

Echo P005003110

BULB, PURGE

$7.99

$

In Stock, Qty 20+

0

29

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 18

0

30

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

31

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 10

0

32

Echo 12534252130

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

33

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 11

0
