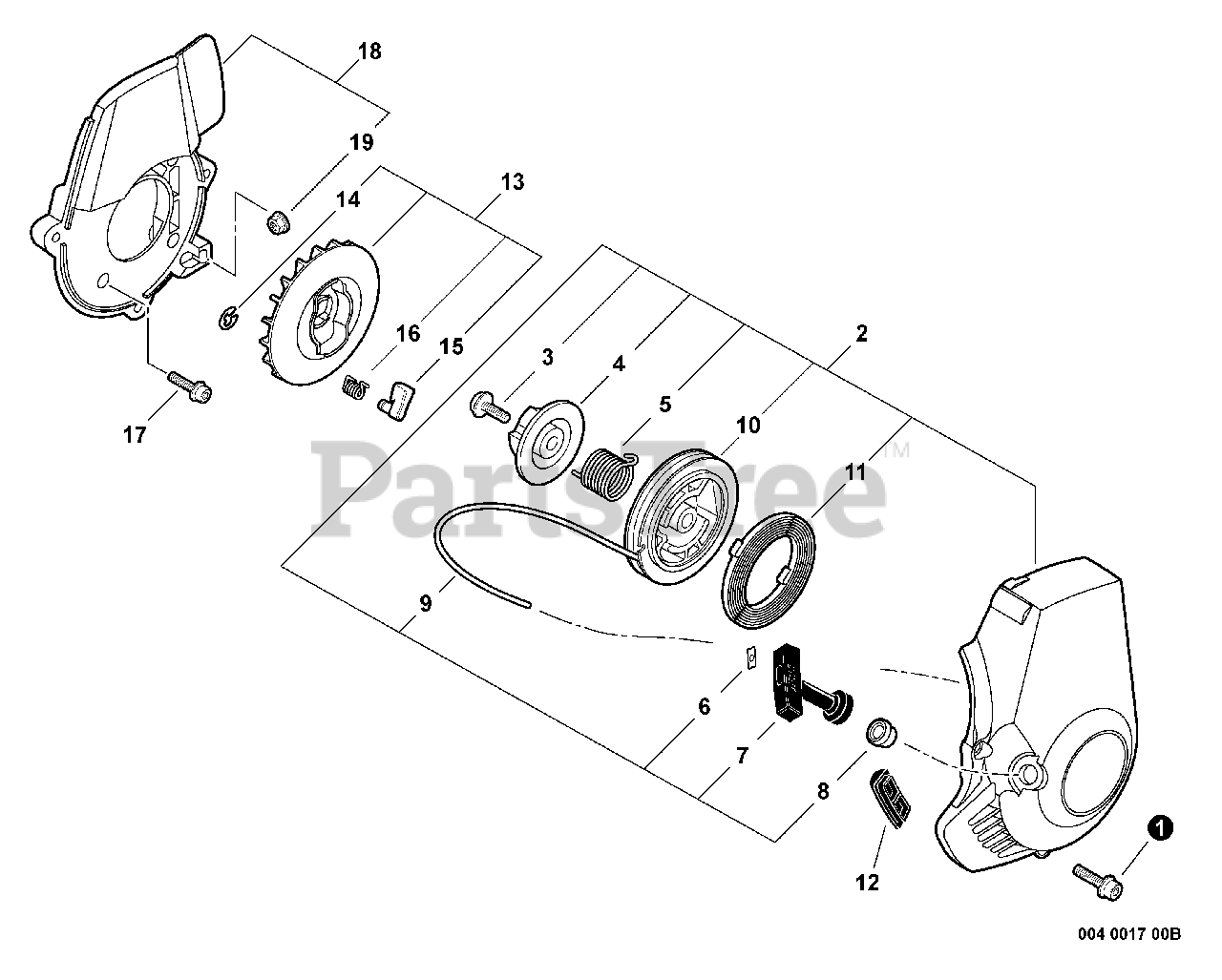

PB-255 - Echo Handheld Blower (SN: P06213001001 - P06213999999) Starter S/N: P06213001001 - P06213002045 Parts Diagram

Handheld Blower

Starter S/N: P06213001001 - P06213002045 Parts Diagram

  • Title

1

Echo 90010605014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

2

Echo A051001180

STARTER ASSY
(Superseded to A051001181)

Note: Includes ITEMS 3-12

$38.99

$

In Stock, Qty 6

0

3

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 7

0

4

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

5

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 14

0

6

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

7

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 8

0

8

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

9

Echo P022008260

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$5.99

$

Usually ships in 2-4 days

0

10

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

12

Echo V420001440

CUSHION

$1.99

$

Usually ships in 2-4 days

0

13

Echo A052000200

STARTER PAWL ASSY
(Superseded to A052000250)

Note: Includes ITEMS 14-16

$16.99

$

In Stock, only 2 left!

0

14

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, only 2 left!

0

15

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, Qty 13

0

16

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

17

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

18

Echo P021013780

SPACER

Note: Includes ITEM 19

$12.99

$

Usually ships in 2-4 days

0

19

Echo V263000070

NUT - 5 -- FLANGE

$0.99

$

In Stock, only 4 left!

0
