PB-255 - Echo Handheld Blower (SN: P09112001001 - P09112999999) Fuel System S/N: P09112025751 - P09112999999 Parts Diagram

Handheld Blower

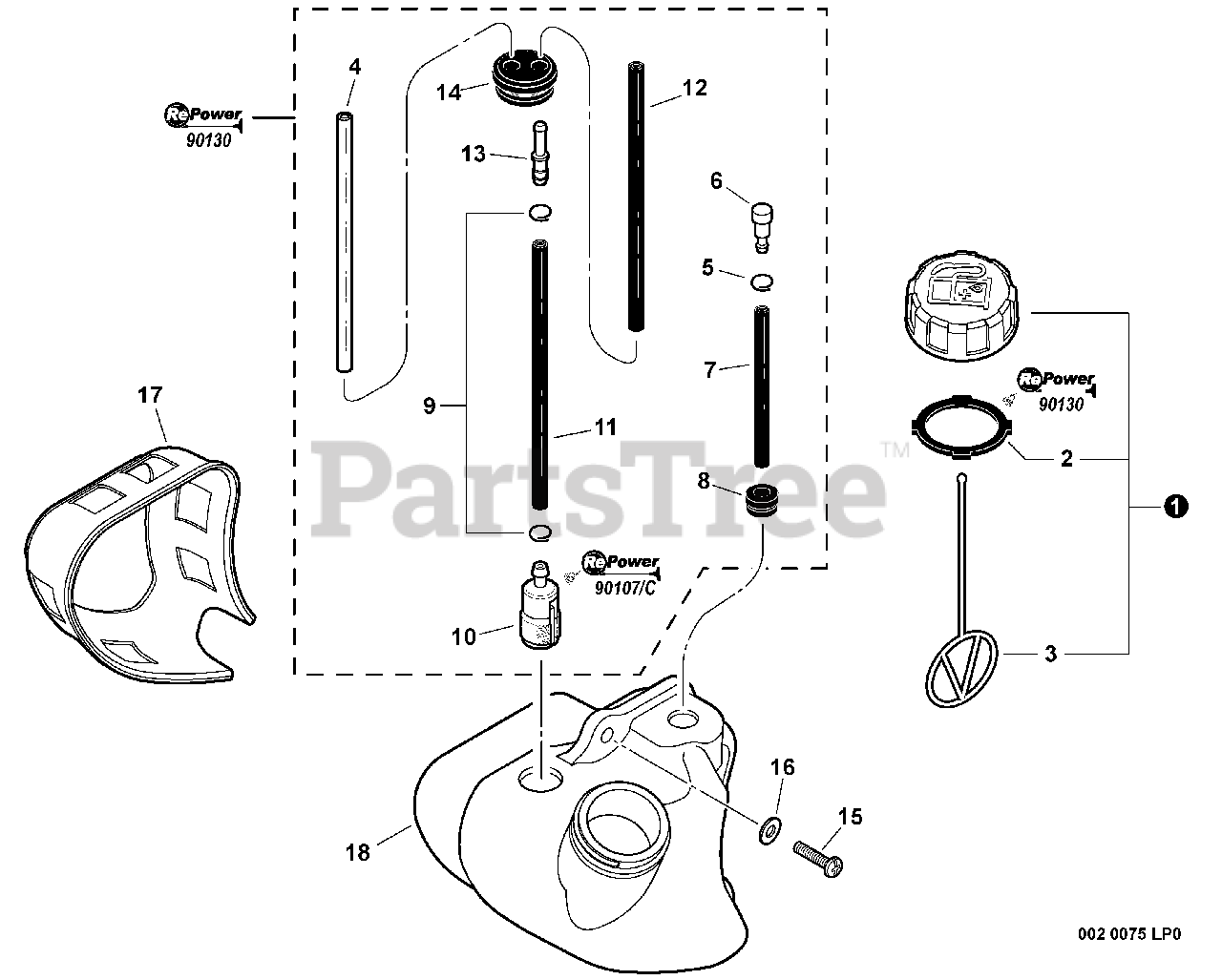

Fuel System S/N: P09112025751 - P09112999999 Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$7.49

$

In Stock, Qty 8

0

2

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 4 left!

0

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

4

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 7

0

5

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

6

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

7

Echo V471001220

PIPE, FUEL VENT 3×5×50

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

8

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

10

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

11

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

12

Echo V471003600

PIPE, FUEL 3×5×87 BLACK
(Superseded to V471005660)

Note: RePower BULK OPTION: N/A

$4.49

$

In Stock, only 2 left!

0

13

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

14

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

15

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo V420001430

GUARD, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

18

Echo A350000760

TANK, FUEL
(Superseded to A350002550)

$35.99

$

In Stock, only 1 left!

0

19

Echo 90130

FUEL SYSTEM KIT
(Superseded to 90130Y)

$29.99

$

In Stock, Qty 6

0

20

Echo 90107

TUNE-UP KIT - REPOWER
(Superseded to 90154)

$25.99

$

In Stock, Qty 16

0

20

Echo 90107C

TUNE-UP KIT - REPOWER
(Superseded to 90154)

Note: CANADA MODELS

$25.99

$

In Stock, Qty 16

0
