PB-255 LN - Echo Handheld Blower (SN: P42914001001 - P42914999999) Fan Case Parts Diagram

PB-255LN Echo handheld blower: a single-cylinder 2-stroke engine (25.4 cc, short-block SB1092); RB-K90 diaphragm carburetor with high-speed needle and 2-stage metering; NGK BPM8Y/BPMR8Y spark plugs; 16.9 fl (~0.6 L) fuel capacity.

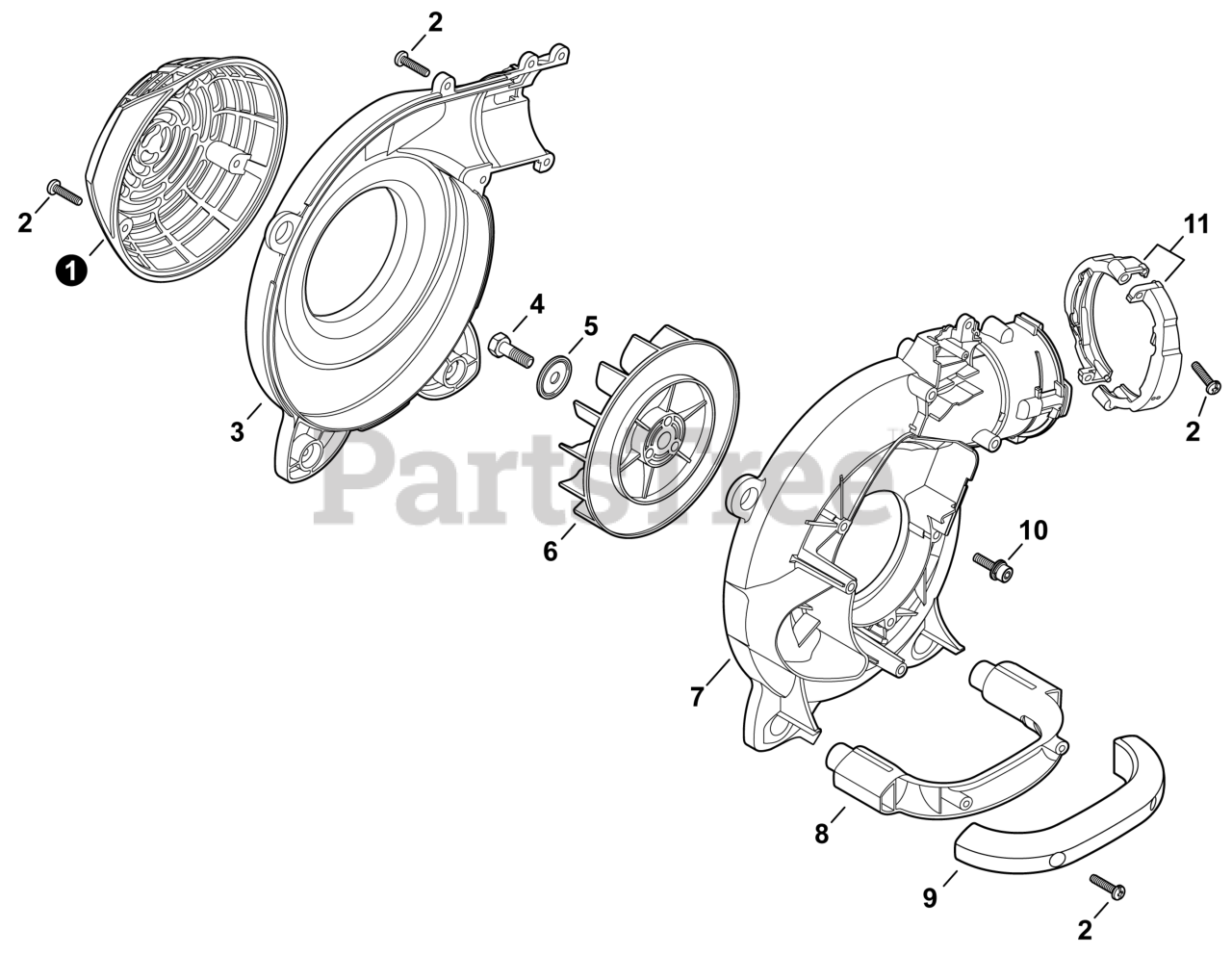

Fan Case Parts Diagram

  • Title

1

Echo E104000080

GUARD, DEBRIS

$23.99

$

In Stock, only 1 left!

0

2

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

3

Echo E103000461

COVER, FAN

$43.99

$

Usually ships in 2-4 days

0

4

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

5

Echo 10014319830

WASHER 8.2×31×0.8

$1.99

$

In Stock, Qty 20+

0

6

Echo E100000070

FAN, BLOWER

$11.99

$

In Stock, only 2 left!

0

7

Echo E103000451

CASE, FAN

$50.99

$

Usually ships in 2-4 days

0

8

Echo C410000391

HANDLE, REAR

$6.49

$

In Stock, only 2 left!

0

9

Echo C410000400

COVER, HANDLE

$4.99

$

In Stock, only 2 left!

0

10

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

11

Echo E162000000

COLLAR, LOCKING

$2.49

$

In Stock, only 2 left!

0
