PB-255 LN - Echo Handheld Blower (SN: P42914001001 - P42914999999) Fuel System Parts Diagram

PB-255LN Echo handheld blower: a single-cylinder 2-stroke engine (25.4 cc, short-block SB1092); RB-K90 diaphragm carburetor with high-speed needle and 2-stage metering; NGK BPM8Y/BPMR8Y spark plugs; 16.9 fl (~0.6 L) fuel capacity.

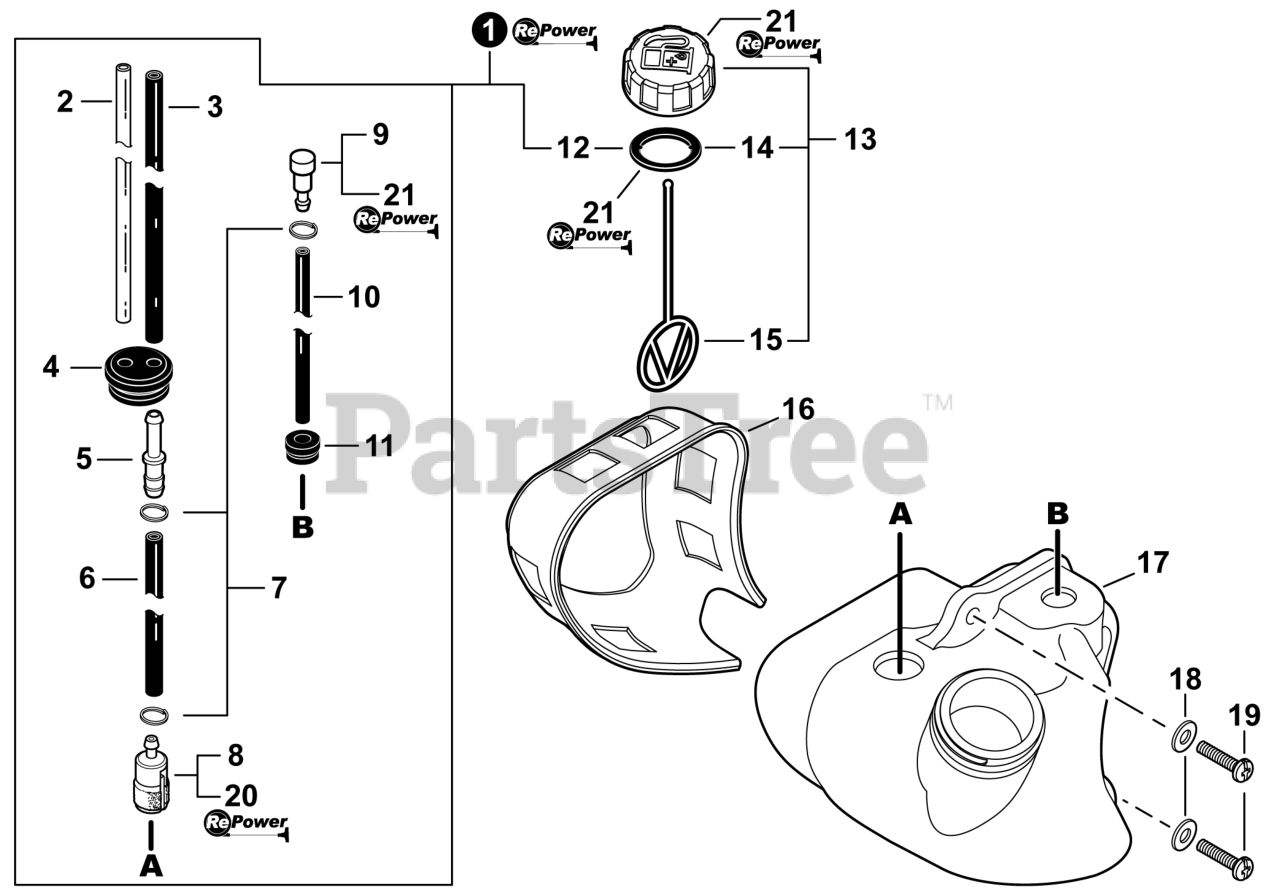

Fuel System Parts Diagram

  • Title

1

Echo 90130

FUEL SYSTEM KIT
(Superseded to 90130Y)

Note: Includes ITEMS 2-12

$29.99

$

In Stock, Qty 6

0

2

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 7

0

3

Echo V471005660

PIPE, FUEL 3×5.5×87 BLACK

$4.49

$

In Stock, only 2 left!

0

4

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

5

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

6

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

7

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

8

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

Note: Included In TUNE-UP KIT

$6.49

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT ASSY

Note: Included In CAP/VENT KIT

$9.49

$

In Stock, Qty 20+

0

10

Echo V471001220

PIPE, FUEL VENT 3×5×50

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 9

0

11

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

Note: Included In CAP/VENT KIT

$4.99

$

In Stock, only 4 left!

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 14-15

$6.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

Note: Included In CAP/VENT KIT

$4.99

$

In Stock, only 4 left!

0

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0

16

Echo V420001430

GUARD, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

17

Echo A350002551

FUEL TANK, PB-255LN (2020)

$35.99

$

In Stock, only 1 left!

0

18

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

20

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

Note: See Maintenance Page

$25.99

$

In Stock, Qty 16

0

21

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

Note: See Maintenance Page

$

$

Not available
