PB-255 LN - Echo Handheld Blower (SN: P42914001001 - P42914999999) Ignition Parts Diagram

PB-255LN Echo handheld blower: a single-cylinder 2-stroke engine (25.4 cc, short-block SB1092); RB-K90 diaphragm carburetor with high-speed needle and 2-stage metering; NGK BPM8Y/BPMR8Y spark plugs; 16.9 fl (~0.6 L) fuel capacity.

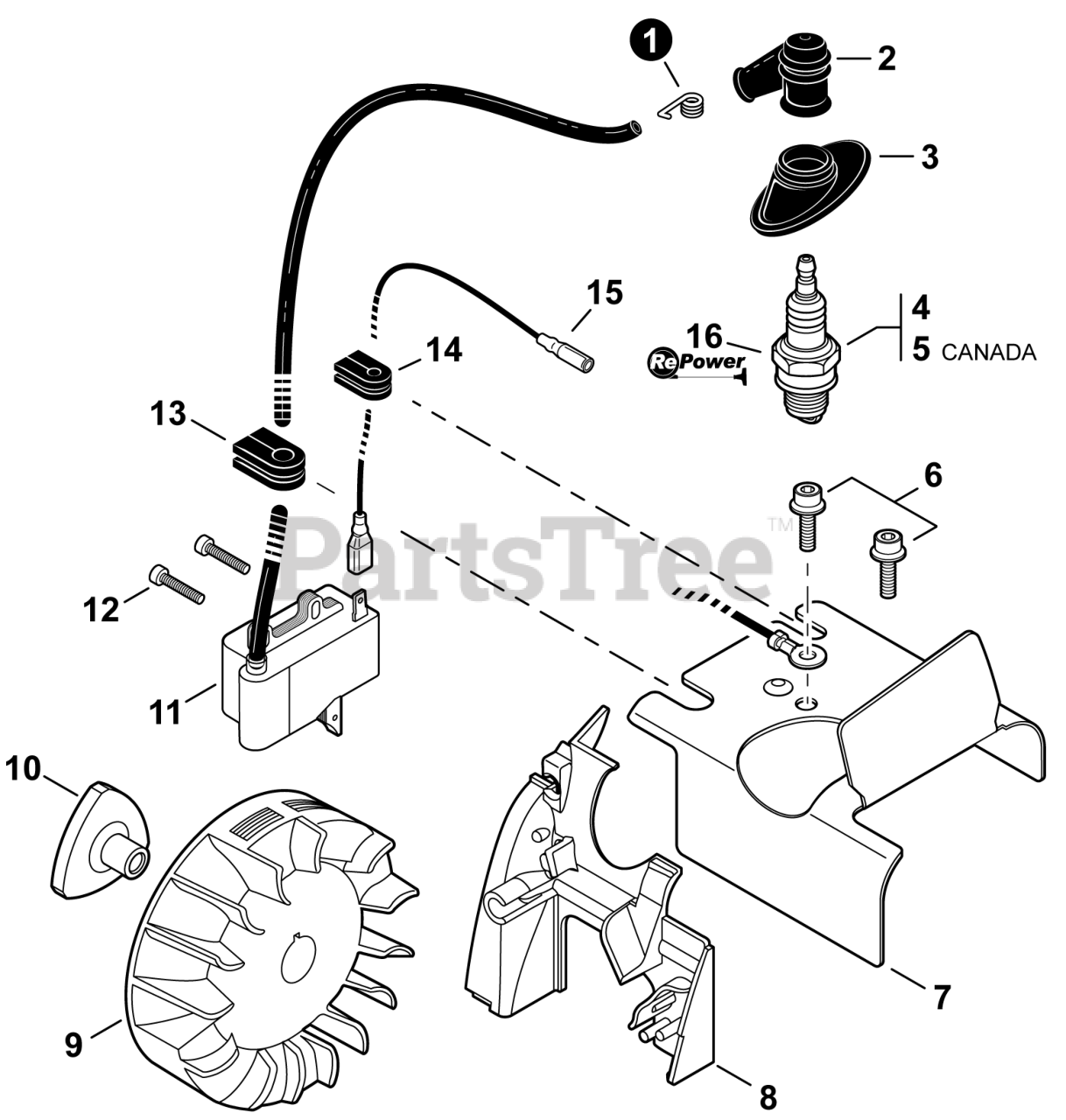

Ignition Parts Diagram

  • Title

1

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

2

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

3

Echo A429000010

COVER, DUST

$1.49

$

In Stock, Qty 6

0

4

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

5

Echo A425000000

SPARK PLUG - BPMR8Y

Note: Included In TUNE-UP KIT

$3.99

$

In Stock, Qty 20+

0

6

Echo 90010605008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

7

Echo A160000821

COVER, CYLINDER

$4.99

$

Usually ships in 2-4 days

0

8

Echo A160000830

COVER, CYLINDER - PLASTIC

$5.49

$

Usually ships in 2-4 days

0

9

Echo A409001280

FLYWHEEL

$35.99

$

In Stock, only 2 left!

0

10

Echo E101000122

HUB, FAN

$9.49

$

In Stock, only 3 left!

0

11

Echo A411000290

COIL, IGNITION
(Superseded to A411000291)

$118.99

$

In Stock, only 2 left!

0

12

Echo 9111304020

BOLT 4×20

$0.99

$

Usually ships in 2-4 days

0

13

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

14

Echo 15211505530

GROMMET

$0.99

$

In Stock, Qty 7

0

15

Echo V485000820

LEAD - IGNITION

$2.49

$

Usually ships in 2-4 days

0

16

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

Note: See Maintenance Page

$25.99

$

In Stock, Qty 16

0
